Interchangeable Inserts EPS Mould for Flexible Production Options panels

Interchangeable Inserts EPS Mould for Flexible Production Options panels
Features Gallery Product Description Request A Quote
Warranty Period: 1year
Mold Life: 100,000times
Raw Material: Aluminum Alloy
EPS Density: 5-48
Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Certification: ISO9001:2015
Model Number: Customization
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 100pcs per month
Product Description
Design and Construction: EPS molds are typically made from aluminum or steel, although other materials like epoxy or silicone may be used for certain applications. The mold design is crucial in determining the final shape and quality of the EPS foam product. It includes features such as cavities, cores, vents, and cooling channels. The mold is precision-machined to ensure accuracy and consistency in the molded parts.
Mold Inserts: In some cases, EPS molds may have interchangeable inserts or cavities that allow for multiple product variations to be produced using the same mold. This flexibility can be beneficial when manufacturing different sizes or designs of EPS foam products.
Venting: EPS molds often incorporate venting systems to allow for the escape of air and steam during the molding process. Proper venting helps prevent voids or deformities in the molded foam and ensures consistent and high-quality products.
Cooling: EPS molds may have cooling channels or systems integrated into their design. These channels allow for the circulation of cooled water or other cooling mediums to speed up the cooling process, improve cycle times, and enhance the dimensional stability of the molded parts.
Release Agents: To facilitate the easy removal of the molded EPS foam product from the mold, release agents may be applied to the mold surfaces. These agents help prevent the foam from sticking to the mold and ensure smooth demolding.
Maintenance and Care: Regular maintenance and cleaning of EPS molds are essential to ensure their longevity and optimal performance. Cleaning agents specifically formulated for EPS molds should be used to remove any residual foam or contaminants.
Item Spec
Raw Material Aluminum alloy
Warranty Period 1 year
Application EPS box
Production Cycle 1-2 Months
Mold Test YES
Mold life 100,000times
Dimension Customization
Cavity Negotiation or Customization

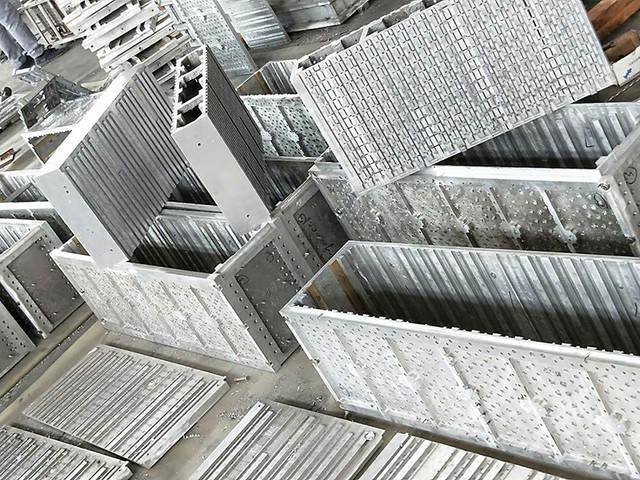

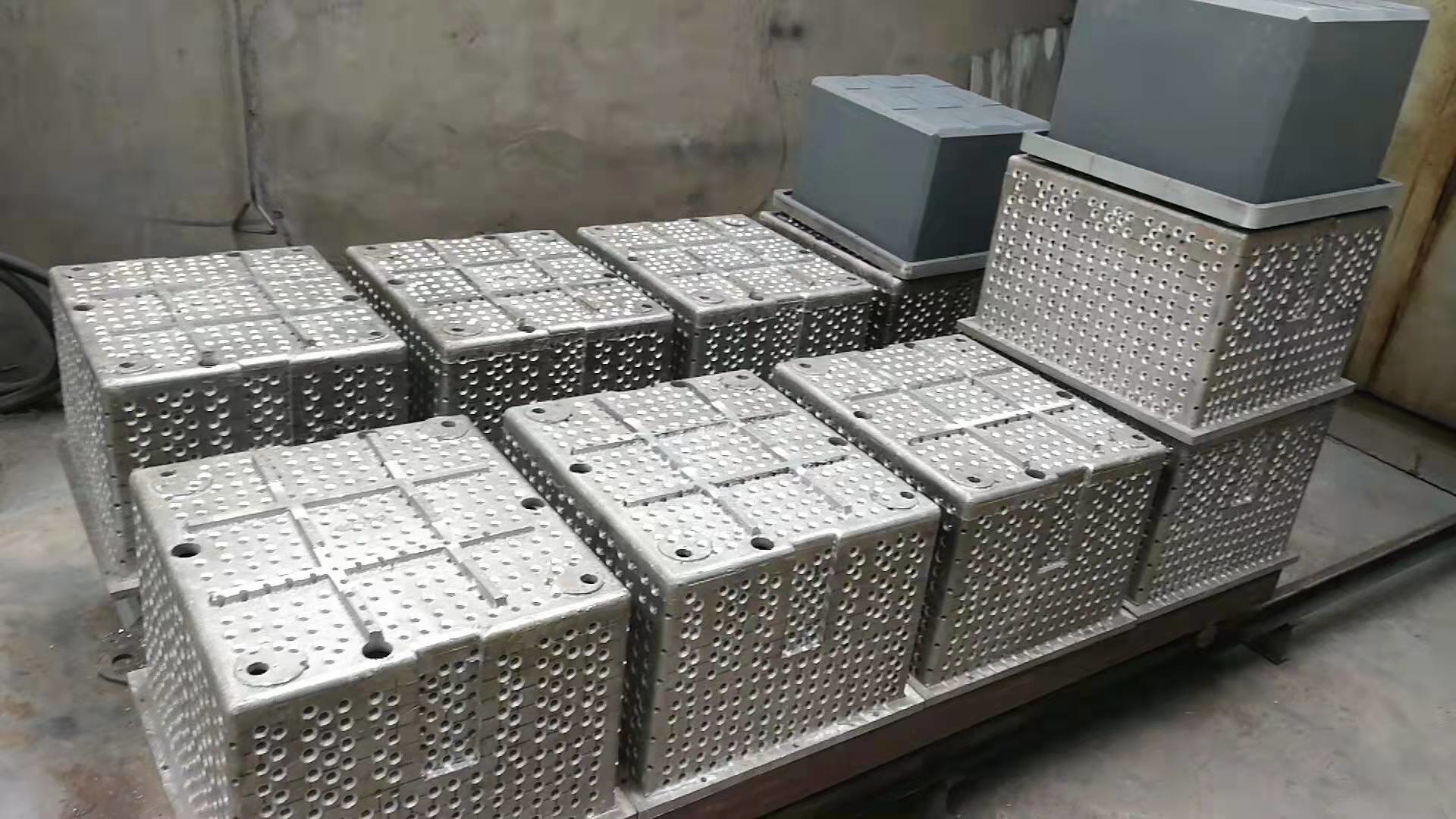

Interchangeable Inserts EPS Mould for Flexible Production Options panels 0

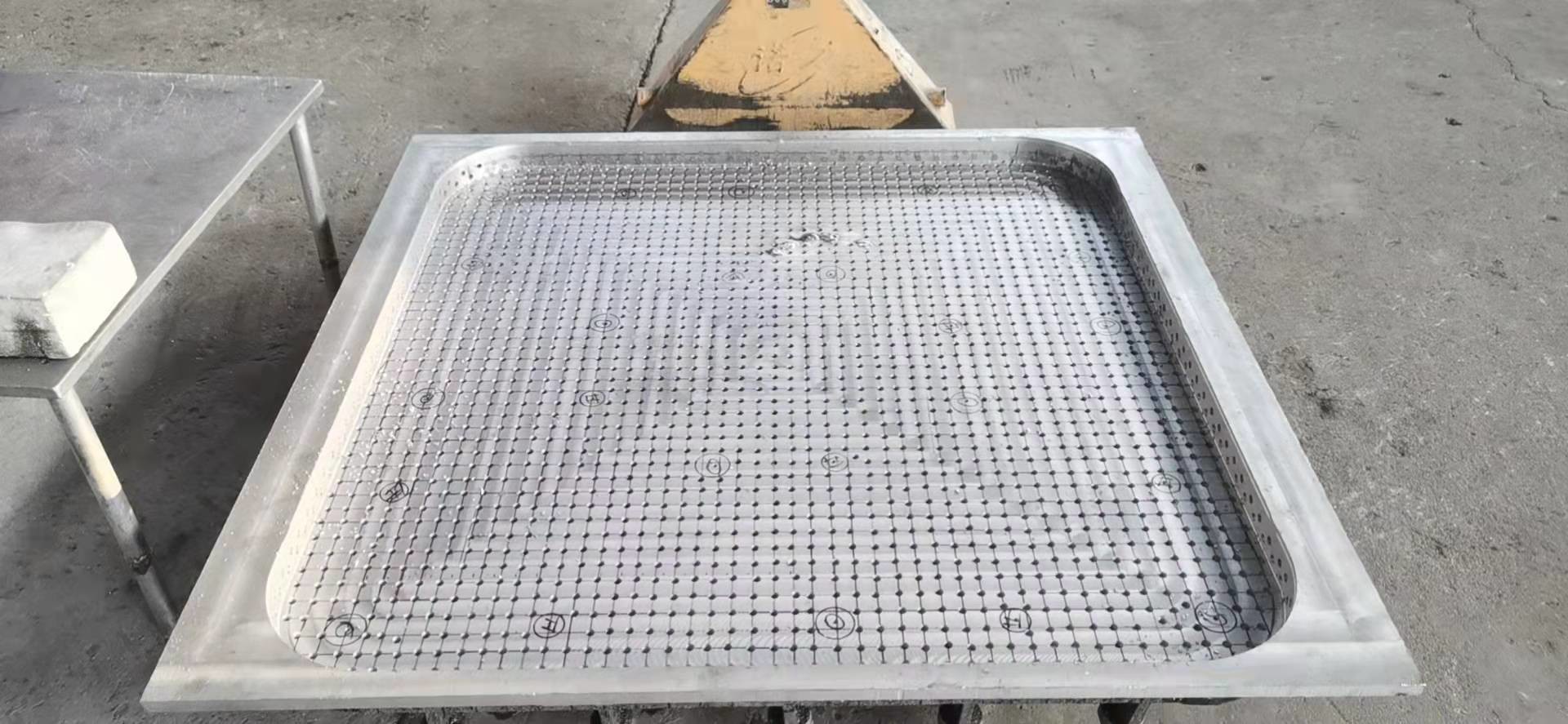

Interchangeable Inserts EPS Mould for Flexible Production Options panels 1
