PFED PFE Machine Spare Parts Hydraulic Single Or Double Pump Cartridge

1
MOQ
negotiation
Price
PFED PFE Machine Spare Parts Hydraulic Single Or Double Pump Cartridge
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty Period: 1year
Type: PFED/PFE
Origin: China
Port: SHANGHAI/NINGBO
High Light:

PIN SHENG PFE Machine Spare Parts

,

PIN SHENG PFED Machine Spare Parts

,

PIN SHENG Double Pump Cartridge

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Certification: -
Model Number: Hydraulic Pump
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 100pcs per month
Product Description

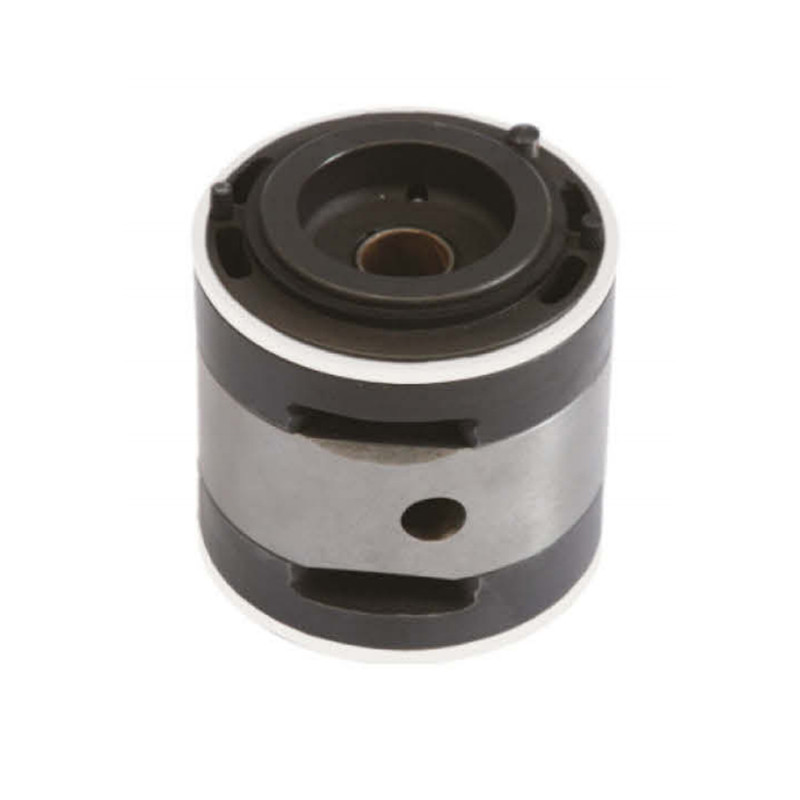

Hydraulic Single or Double Pump and Pump Cartridge

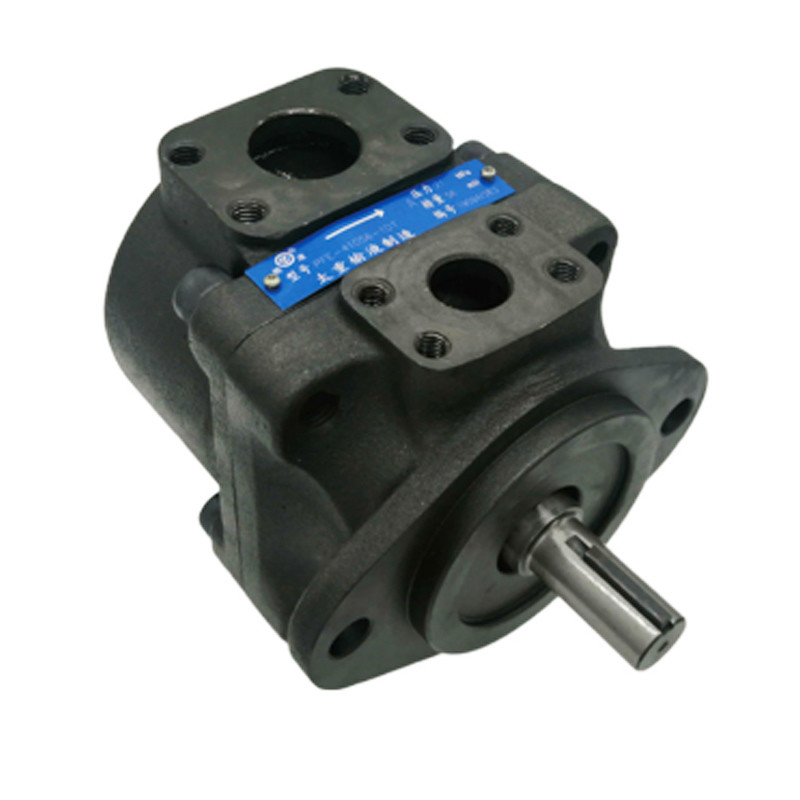

PFE Series Pin Type Vane Pump

MODEL CODE

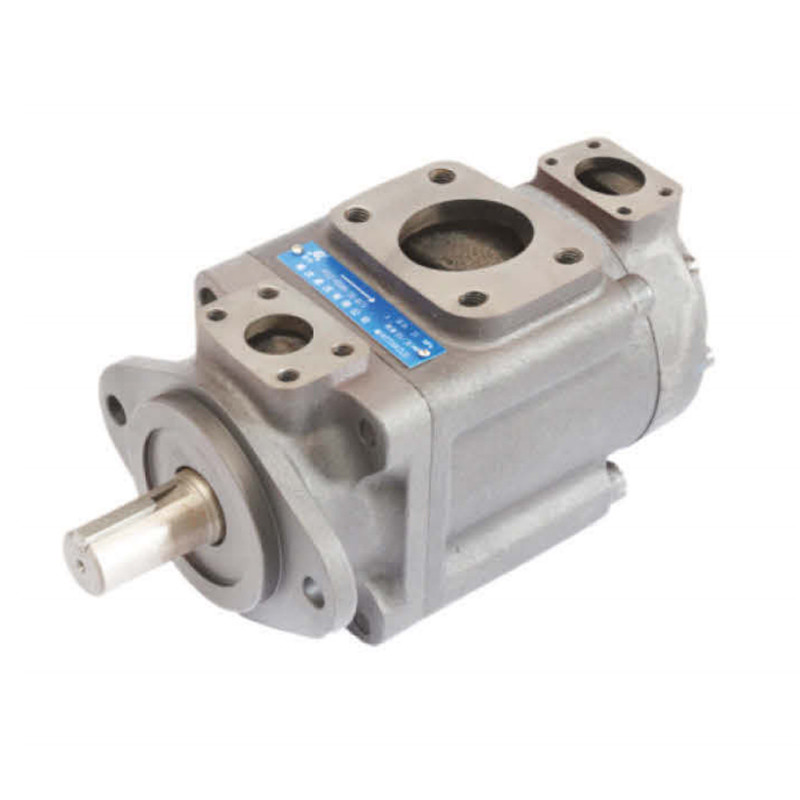

PFED- 4131 045/ 022/ 1 D TO
PFED series fixed
displacement
vane pump
series double pump larger
displacement volume
side geometric displacement(ml/r)
double pump smaller
displacement volume
side geometric displacement(ml/r)
shaft type direction of
rotation(viewed
from shaft end)
port orientation
PFE
double pump series
32 16,22,28,36,44 5,6,8,10,12,16 1-cylindrical type (standard)
2-cylindrical type(ISO/DIS3019)
3-cylindrical type (high torque)
5-splined type
D:CW
S:CCW
see port orientation table
{inlet and two outlet ports can be oriented in any of thirty two relative positions :To,VG
42 29,37,45,56,70,85 5,6,8,10,12,16
43 29,37,45,56,70,85 16,22,28,36,44
52 90,110,129,150 5,6,8,10,12,16
53 90,110,129,150 16,22,28,36,44
54 90,110,129,150 29,37,45,56,70,85



PFE- 41 045/ 1 D TO
PFE series fixed
displacement
vane pump
series single pump geometric
displacement (ml/r)

shaft type



direction of
rotation(viewed
from shaft end)
port orientation
PFE
sigle pump series
21 5,6,8,10,12,16 1-cylindrical type (standard)
2-cylindrical type(ISO/DIS3019)
3-cylindrical type (high torque)
5-splined type
D:CW
S:CCW
see port orientation table
{inlet and outlet ports can be oriented in any of four relative positions :T,V,U,W
31 16,22,28,36,44
41 29,37,45,56,70,85
51 90,110,129,150
61 160,180,200,224,250
22 8,10,12
32 22,28,36,
42 45,56,70
52 90,110,129
