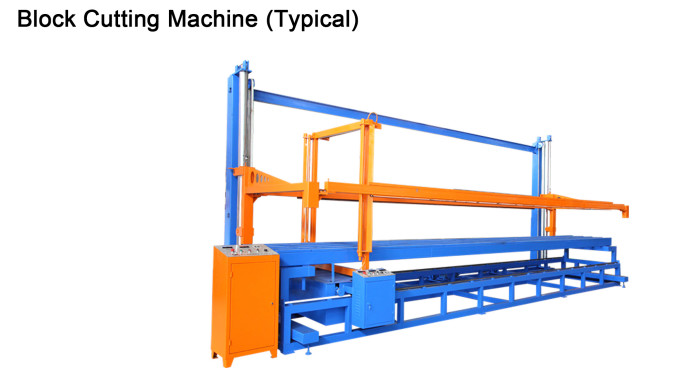

Energy-Saving Environmentally-Friendly Construction EPS Block Cutting Machine.
Key Components
Cutting Wire: Typically heated to melt through EPS foam smoothly.
Frame: A sturdy structure that holds the cutting wire and supports the foam blocks.
Control Panel: For adjusting settings like temperature and cutting speed.
Safety Features: Emergency stop buttons, protective covers, and thermal insulation.
Types of EPS Cutting Machines
Vertical Cutting Machines: Suitable for straight cuts on large blocks.
Horizontal Cutting Machines: For slicing blocks into thinner sheets.
CNC Cutting Machines: Computer-controlled for precision cutting and complex shapes.
Maintenance Tips
Regular Cleaning: Keep the cutting wire and frame free from debris.
Wire Replacement: Inspect the cutting wire for wear and replace as needed.
Calibration: Regularly check and calibrate the machine for accurate cuts.
Spare Parts
Common spare parts for EPS block cutting machines include:
Heating Elements: Wires or coils that provide the necessary heat.
Cutting Wires: Various gauges depending on the machine specifications.
Control Components: Circuit boards and switches.
Frames and Supports: Replacement parts for the structural integrity of the machine.
| Item |
Unit |
PSBC200B |
PSBC300B |
PSBC400B |
PSBC600B |
PSBC600B |
| Max Block Size |
mm |
2100X1300X1250 |
3100X1300X1250 |
4100X1300X1250 |
6100X1300X1250 |
8150X1300X1250 |
| Min Block Size |
mm |
5 |
5 |
5 |
5 |
5 |
| CuttingSpeed |
mm/s |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
| Connected Load |
Kw
|
8 |
8 |
8 |
8 |
8 |
| Outside Dimension |
mm |
4400X1500X1400 |
5400X1950X2400 |
6500X1950X2400 |
8400X1950X2400 |
10400X1950X2400 |
| Weight |
kg |
1500 |
1600 |
1700 |
2000 |
2500 |
