10kw Continuous Pre Expander 5m Stainless Steel

1
MOQ
negotiation
Price
10kw Continuous Pre Expander 5m Stainless Steel
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380V 50Hz
Power: 10kw
Foaming Density: 12-30g
Secondary: 8-11g
Weight: 1.5t
Room Height Required: 5m
High Light:

10kw Continuous Pre Expander

,

5m Continuous Pre Expander

,

Stainless Steel eps preexpander

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSPEC90
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Product Description

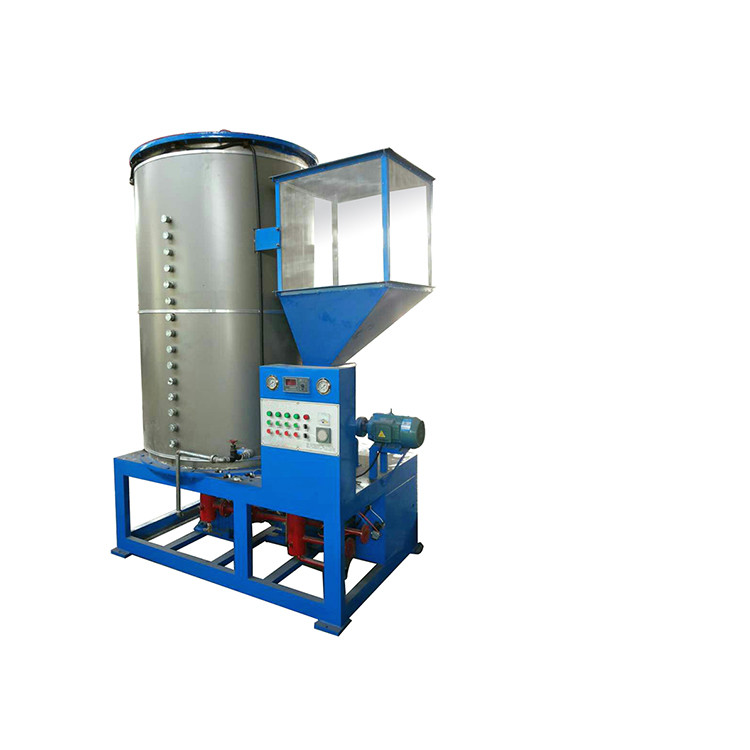

EPS Continuous foam Pre Expander machine

Main features :
1.The chamber surface is made by stainless steel with good shape and long life
2.The fluidized Bed Drier can be bought by customer solely.
3.The twice pre-explander can pre-expand once or twice to enable the EPS density to be ideal state.

Item Unit PSPEC90
Expansion Chamber Diameter mm 900
Volume 1.2
Useable volume 0.8
Steam Inlet mm 25
Consumption kg/cycle 100-150
Pressure Mpa 0.6-0.8
Compressed air Inlet mm 25
Pressure Mpa 0.6-0.8
Drainage Condensation mm 20
Connected load Installing power Kw 10
Density First expansion g/L 12-30
Second expansion g/L 8-11
Overall size (LXWXH) mm 4700X3000X3200
Weight kg 1500
Room height required mm 5000
Productivity 15g/L kg/h 150
20g/L kg/h 200
25g/L kg/h 250
30g/L kg/h 300



10kw Continuous Pre Expander 5m Stainless Steel 0

10kw Continuous Pre Expander 5m Stainless Steel 1

FAQ



1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
