15kw Continuous Pre Expander 4900mmx4700mmx3200mm

1
MOQ
negotiation
Price
15kw Continuous Pre Expander 4900mmx4700mmx3200mm
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380V 50Hz
Power: 15kw
Foaming Density: 14-30g
Secondary: 8-13g
Weight: 2t
Room Height Required: 5m
High Light:

15kw Continuous Pre Expander

,

3200mm Continuous Pre Expander

,

4700mm eps expander

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSPEC120
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Product Description

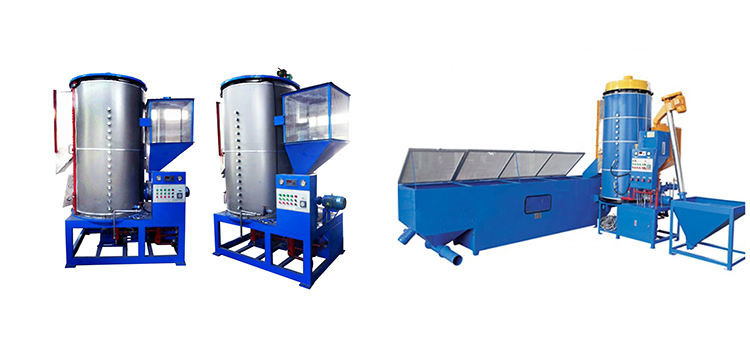

Cheap Simple EPS Continuous Pre Expander machine

Main features :

1.  The material dispatching cylinder is made from stainless steel and has insulation cotton in the inter layer with reliable property ,stable weight ,high production efficiency and low energy consumption.

2.  The feeding system of the machine has primary and secondary feeding devices with the foaming density of 7-40g/L.

3.  All the feeding ,foaming,screening,crushing,conveying to ripening hopper are all completed automatically.

Item Unit PSPEC120
Expansion Chamber Diameter mm 1200
Volume 2.2
Useable volume 1.5
Steam Inlet mm 40
Consumption kg/cycle 150-200
Pressure Mpa 0.6-0.8
Compressed air Inlet mm 25
Pressure Mpa 0.6-0.8
Drainage Condensation mm 20
Connected load Installing power Kw 15
Density First expansion g/L 14-30
Second expansion g/L 8-13
Overall size (LXWXH) mm 4900X4700X3200
Weight kg 1800
Room height required mm 5000
Productivity 15g/L kg/h 250
20g/L kg/h 300
25g/L kg/h 410
30g/L kg/h 500



15kw Continuous Pre Expander 4900mmx4700mmx3200mm 0

FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
