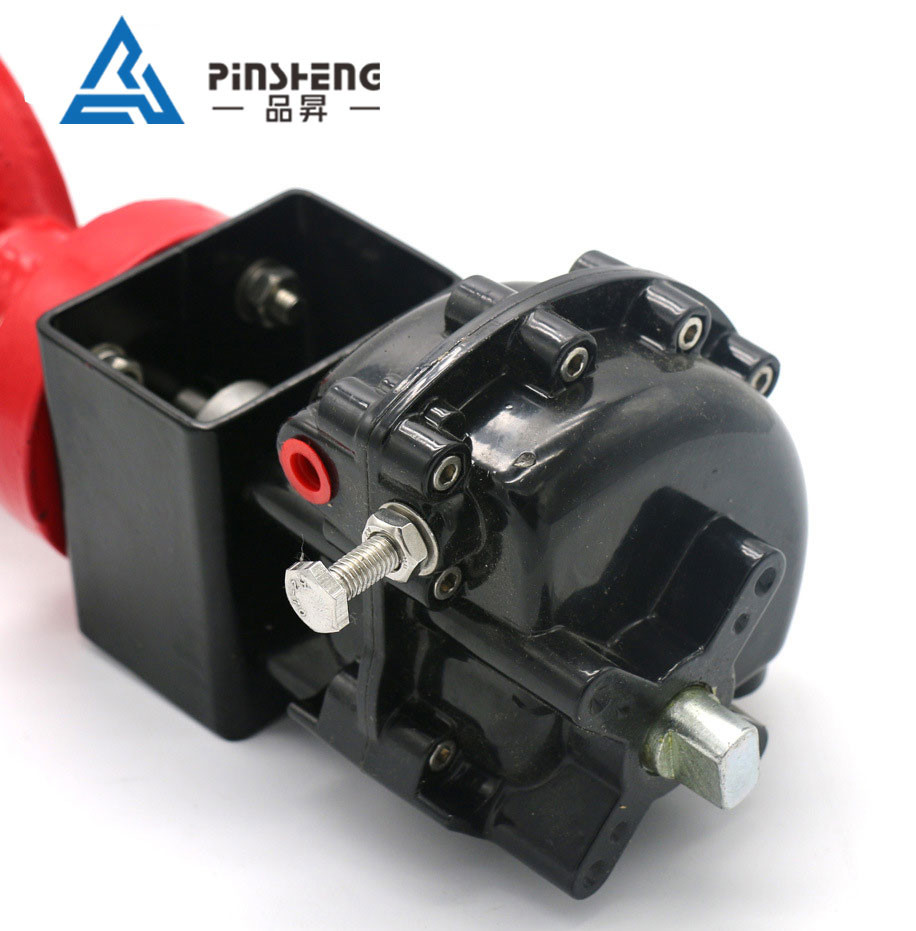

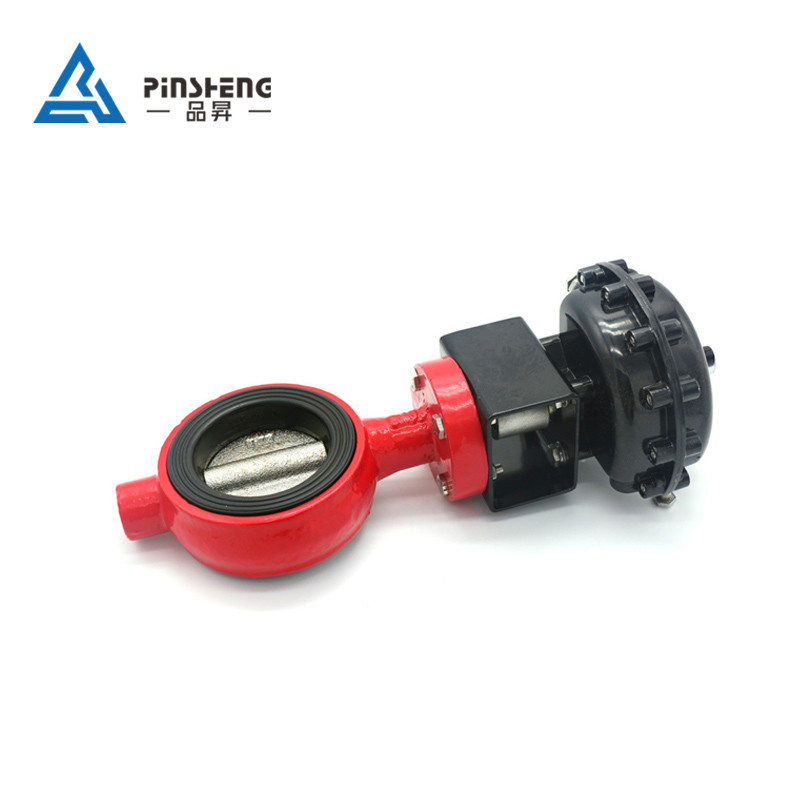

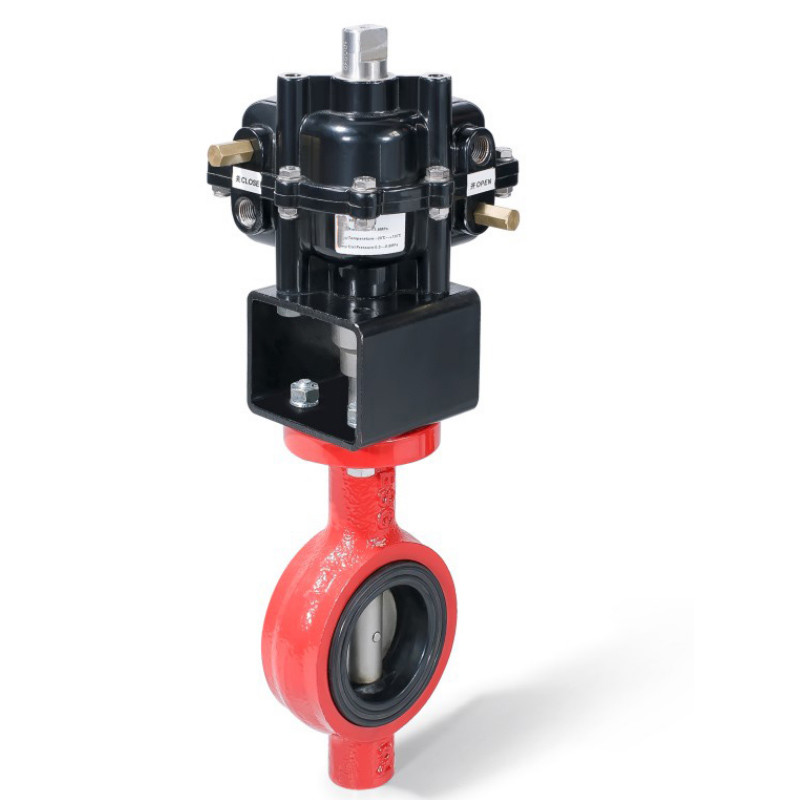

Pneumatic butterfly valve EPS machine spare parts
Compressed air forces the blade to do reciprocating movement, so that the valve to open and close, unique blade rotary cylinder design is the ideal rotary pneumatic parts, to ensure its stable work, long life, high efficiency.
| SPEC | Pressure of work(Mpa) |
Control the pressure(Mpa) |
L(mm) | H(mm) | H1(mm) | H2(mm) | Φd(mm) | ΦD(mm) | Weight(Kg) |
| DN50 | 0-1.6 | 0.3-0.8 | 38 | 372 | 110 | 75 | 52 | 102 | 4.7 |
| DN65 | 0-1.6 | 0.3-0.8 | 38 | 380 | 117 | 76 | 66.5 | 110 | 4.8 |
| DN80 | 0-1.6 | 0.3-0.8 | 42 | 395 | 120 | 89 | 76.5 | 128 | 5.3 |
| DN100 | 0-1.6 | 0.3-0.8 | 48 | 442 | 144 | 110 | 100.5 | 160 | 7.7 |
| DN125 | 0-1.6 | 0.3-0.8 | 48 | 468 | 156 | 124 | 125 | 185 | 8.1 |
| DN150 | 0-1.6 | 0.3-0.8 | 52 | 468 | 156 | 124 | 152.5 | 218 | 10.8 |
