Single Color Outsole ETPU Machine For Shoe Making Upright Type

Single Color Outsole ETPU Machine For Shoe Making Upright Type
Features Gallery Product Description Request A Quote
Warranty Period: 1year
Voltage: AC380V 50Hz
Origin: Zhejiang CHINA
Raw Material: ETPU
High Light:

PIN SHENG Outsole ETPU Machine


PIN SHENG Upright ETPU Machine


PIN SHENG ETPU Shoe Making Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSETPU
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 20pcs per month
Product Description

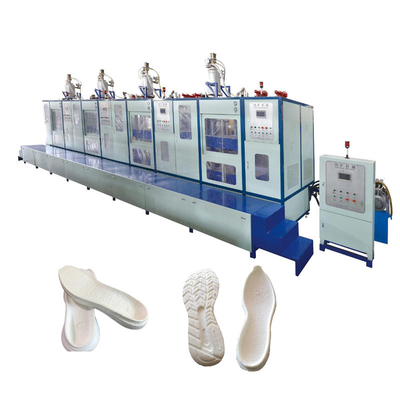

Single Color ETPU Outsole Production Line Shoe Making Machine (Upright type)

Automatic vertical ETPU popcorn forming machine, the main structure is made of GB square steel welding, simple and beautiful appearance, small occupation area

N0. Item Parameter
1 Molding Specifications 1002X4 1002X3 1002X2
2 Precision mold accuracy 0.1mm
3 Steam Pressure Control 0.01kg
4 Ejection Flow control 0.01kg
5 Hydraulic Control System Double mercury,single oil cylinder
6 Hydraulic Clamping Capacity 40T
7 Travel speed 250mm/s
8 Control System Mitsubishi PLC
10 Guide Post Φ75mmX4X4
11 Steam Inlet DN80
12 Water Inlet DN80
13 Perssure Air Inlet DN80
14 Drainge Outlet DN150

Single Color Outsole ETPU Machine For Shoe Making Upright Type 0



Single Color Outsole ETPU Machine For Shoe Making Upright Type 1

1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.


2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied


3. Are you a trading company or a manufacturer?
We are manufacturer.


4. How long is your delivery time?
Normally delivery time is 30~45 days.


5. How many years have your company made this kind of equipment?
More than 10 years.


6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.


7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation


8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.


9. Can you can design the equipment according to our size?
Yes, it is acceptable


10. How many production lines in your factory?
We have total 10 production line.
