Home /Products/ETPU Machine/Customized ETPU Machine For Fish Box Package Production Line

Customized ETPU Machine For Fish Box Package Production Line

1
MOQ
negotiation
Price
Customized ETPU Machine For Fish Box Package Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: AC380V 50Hz
Warranty Period: 1year
Origin: Zhejiang CHINA
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Control System: PLC
Model: Machine
Power Source: Electric
Raw Material: ETPU
Highlight:

Customized ETPU Machine

,

Fish Box Package Production Line

,

Fish Box Package ETPU Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSETPU1004-1009
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 20pcs per month
Product Description
Auto Continuous ETPU Machine For Fish Box Package Production Line.


Key Features

  • High Resilience: Produces foam that can withstand repeated stress and is highly elastic.
  • Versatile Production: Capable of creating various shapes and sizes for different uses.
  • Fast Production Cycles: Optimized for efficiency, allowing for quick turnaround times.

Components

  • Feeding System: Introduces raw ETPU material into the machine for processing.
  • Heating Element: Melts the thermoplastic polyurethane to facilitate expansion.
  • Moulding Chamber: Where the material is shaped into the desired form.
  • Cooling System: Solidifies the foam after it has been moulded.
  • Control Panel: Allows operators to monitor and adjust settings for temperature, pressure, and timing.

Applications

  • Footwear: Used in producing soles and cushioning materials.
  • Automotive: Components for seats, interior fittings, and insulation.
  • Sports Equipment: Padding and protective gear for athletes.

N0. ltem Parameter
1 Molding Specifications 1004 1006 1008 1009
2 Precision mold accuracy 0.1mm
3 Steam Pressure Control 0.01kg
4 Ejection Flow control 0.01kg
5 Hydraulic Control System More than double mercury,oil cylinder
6 Hydraulic Clamping Capacity 60T,80T,100T
7 Travel speed 300mm/s
8 Control System Mitsubishi PLC
9 HMI WEINVLEW
10 Guide Post 100mmX4
11 Steam Inlet DN100
12 Water Inlet DN100
13 Perssure Air Inlet DN65
14 Drainge Outlet DN150

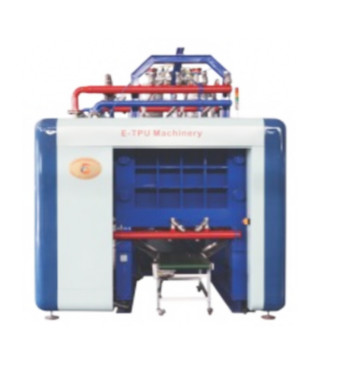

Customized ETPU Machine For Fish Box Package Production Line 0Customized ETPU Machine For Fish Box Package Production Line 1Customized ETPU Machine For Fish Box Package Production Line 2

Customized ETPU Machine For Fish Box Package Production Line 3

Customized ETPU Machine For Fish Box Package Production Line 4














Tag:

380V ETPU Machine

Upright ETPU Machine

3mm foam moulding machine
