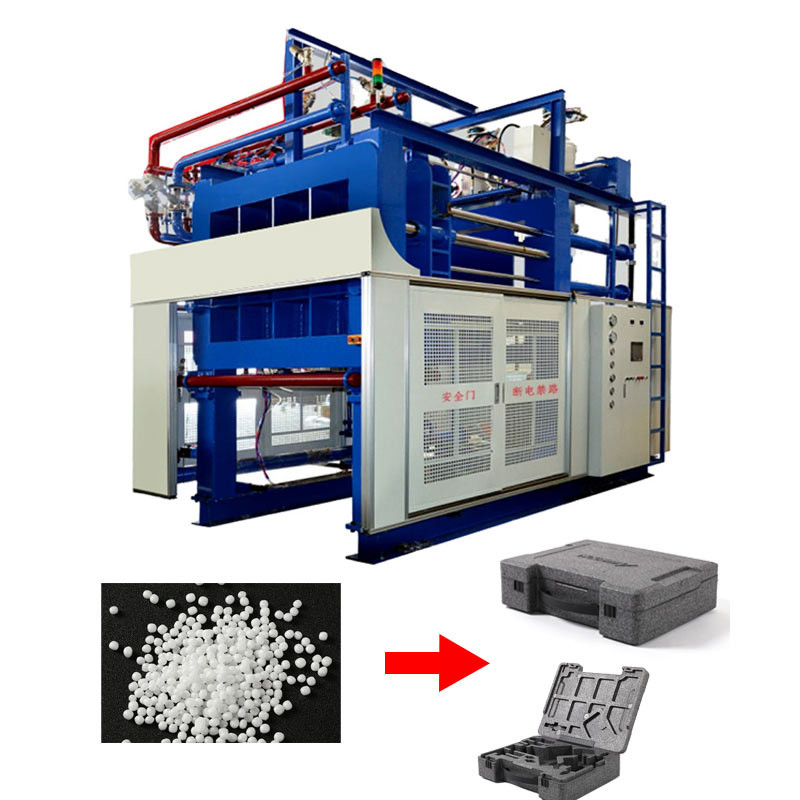

800x1300mm EPP Molding Machine For Making Toolboxes

800x1300mm EPP Molding Machine For Making Toolboxes
Features Gallery Product Description Request A Quote
Voltage: AC380V
Warranty Period: 1year
Origin: Zhejiang CHINA
Raw Material: EPP
High Light:

1300mm EPP Molding Machine


800mm EPP Molding Machine


380V epp machine

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: Customization
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 20pcs per month
Product Description


This series of equipment to produce precision instruments or precision electronic components packaging box

1. Feeding Methods:Feeding by pulse Feeding by negative pressure,Feeding by back pressure,Feeding assisted by currents of wind.
2. Smart proportional valves of high precision are in control of such processing as feeding, heating and mould unloading.
3. Intensive hydraulic power system offers the integration of powering and pressurization, thus securing convenience for maintenance.
4. Precise joint retention accuracy, with the margin of range lesser than 0.5mm.
5. Frames of high rigidity, promise and secure enduring production in responsive to EPP industry.

Item Unit PSEPP80 PSEPP120-14 PSEPP120-16 PSEPP130
Mould Dimension mm 800X1300 1200X1400 1200X1600 1300X1800
Max Product Dimension mm 800X1300X350 1200X1400X350 1200X1600X350 1300X1800X350
Stroke Speed mm/m 300
Steam Perssure
Control Accuracy
bar 0.03-0.08
Steam Perssure Mpa >0.6
Steam Inlet mm DN100
Cooling Water Perssure Mpa >0.4
Cooling Water
Cooling Water Inlet mm DN100
Compressed Air
Mpa >0.6
Compressed Air
mm DN25
Outside Dimension mm 5000X2700X4100 5000X2800X4500 5000X3000X4500 5000X3200X4600
Weight kg 10000 11000 12000 14000


800x1300mm EPP Molding Machine For Making Toolboxes 0

800x1300mm EPP Molding Machine For Making Toolboxes 1

1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.


2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied


3. Are you a trading company or a manufacturer?
We are manufacturer.


4. How long is your delivery time?
Normally delivery time is 30~45 days.


5. How many years have your company made this kind of equipment?
More than 10 years.


6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.


7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation


8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.


9. Can you can design the equipment according to our size?
Yes, it is acceptable


10. How many production lines in your factory?
We have total 10 production line.
