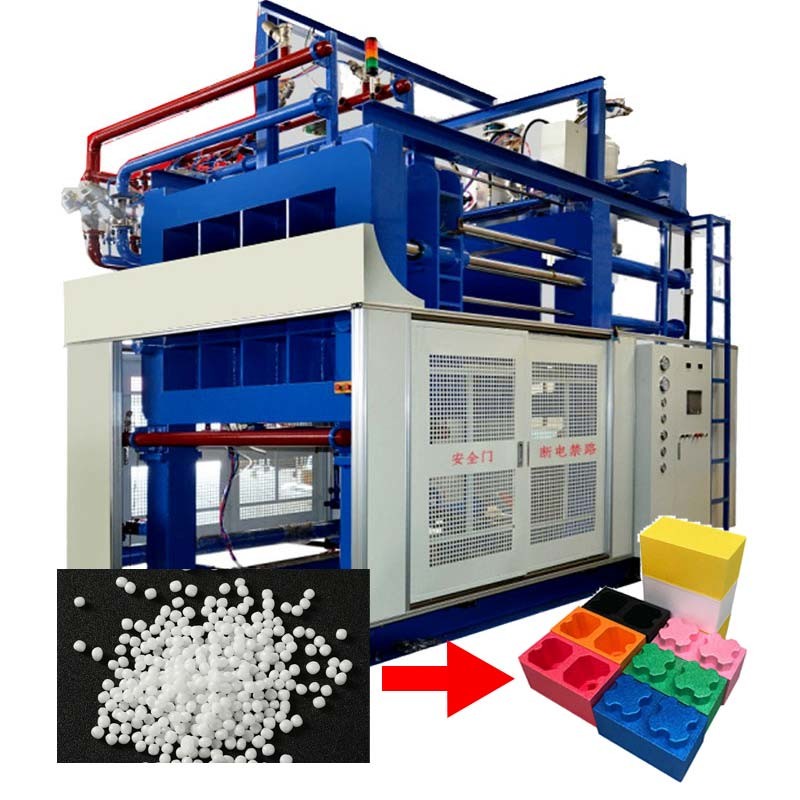

EPP MACHINE FOR MAKING CHILDREN'S PLAYGROUND CASTLE
This series of equipment can produce large children castle paradise building blocks, DIY building blocks, all kinds of children's toys
Main features :
1. Feeding Methods:Feeding by pulse Feeding by negative pressure,Feeding by back pressure,Feeding assisted by currents of wind.
2. Smart proportional valves of high precision are in control of such processing as feeding, heating and mould unloading.
3. Intensive hydraulic power system offers the integration of powering and pressurization, thus securing convenience for maintenance.
4. Precise joint retention accuracy, with the margin of range lesser than 0.5mm.
5. Frames of high rigidity, promise and secure enduring production in responsive to EPP industry.
6. Various devices for safety,with good practicability
| Item | Unit | PSEPP80 | PSEPP120-14 | PSEPP120-16 | PSEPP130 |
| Mould Dimension | mm | 800X1300 | 1200X1400 | 1200X1600 | 1300X1800 |
| Max Product Dimension | mm | 800X1300X350 | 1200X1400X350 | 1200X1600X350 | 1300X1800X350 |
| Stroke Speed | mm/m | 300 | |||
| Steam Perssure Control Accuracy |
bar | 0.03-0.08 | |||
| Steam Perssure | Mpa | >0.6 | |||
| Steam Inlet | mm | DN100 | |||
| Cooling Water Perssure | Mpa | >0.4 | |||
| Cooling Water Temperature |
℃ | 40-50 | |||
| Cooling Water Inlet | mm | DN100 | |||
| Compressed Air Pressure |
Mpa | >0.6 | |||
| Compressed Air Inlet |
mm | DN25 | |||
| Outside Dimension | mm | 5000X2700X4100 | 5000X2800X4500 | 5000X3000X4500 | 5000X3200X4600 |
| Weight | kg | 10000 | 11000 | 12000 | 14000 |
FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.
2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied
3. Are you a trading company or a manufacturer?
We are manufacturer.
4. How long is your delivery time?
Normally delivery time is 30~45 days.
5. How many years have your company made this kind of equipment?
More than 10 years.
6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.
7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation
8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.
9. Can you can design the equipment according to our size?
Yes, it is acceptable
10. How many production lines in your factory?
We have total 10 production line.
