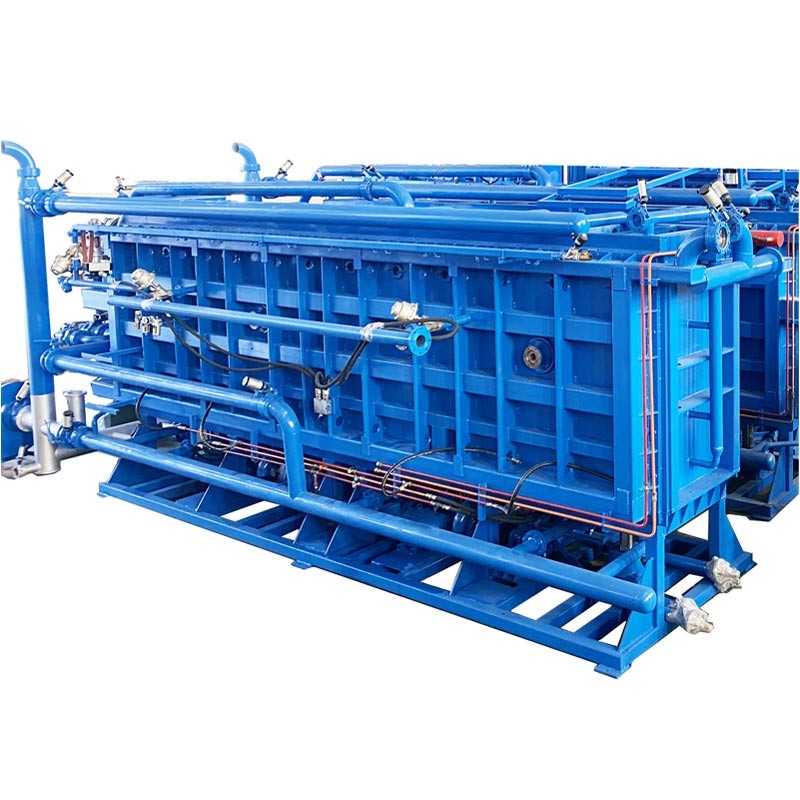

EXCELLENT QUALITY EPS AUTOMATIC CEMENT BLOCK MOULDING MACHINE
Customized EPS plate forming machine, length 3 meters, 6 meters, etc., the main body of the equipment adopts high quality square steel welding
Mechanical Structure :
a.the machine mold is welded onto strong rectangular tubes and steel plates which ensure high srength for the additonal safety of the machine..
b.after heat treatment all mold frames are processed through sand-blasting ,greatly improve corrosion performance and service life of the equipment
c.Adopts three German gauge and safety valve for multi-safety protection.
Steam System :
Three ball valves ,compared to one big steam valve control system saves 20%steam ,with ISO-standard butterfly valves,which greatly improves stability and increases machine life.
Control System:
a.adopts PLC(Mitsubishi) and HMI(WEINVIEW) making operation easy.
b.stroke is adjusted by the encoder controlled through the HMI settings ,easy adjustment and high accuracy .
| Item | Unit | PSBM300VC | PSBM400VC | PSBM600VC | PSBM800VC |
| Mould Cavity size | mm | 3060X1240X630 | 4080X1240X630 | 6100X1240X630 | 8120X1240X630 |
| Block Size | 12g/L | 3000X1200X600 | 4000X1200X600 | 6000X1200X600 | 8000X1200X600 |
| Steam Inlet | mm | DN100 | DN150 | DN150 | DN200 |
| Steam Consumption | kg/cycle | 30-40 | 45-55 | 60-70 | 80-100 |
| Steam Pressure | Mpa | 0.8 | 0.8 | 0.8 | 0.8 |
| Compressed Air Inlet | mm | DN50 | DN50 | DN50 | DN50 |
| Compressed Air Consumption |
m³/cycle | 1.5-1.8 | 1.8-2 | 2-2.3 | 2.2-2.5 |
| Compressed Air Pressure |
Mpa | 0.6 | 0.6 | 0.6 | 0.6 |
| Drainage Steam vent | mm | ∅150 | ∅200 | ∅200 | ∅250 |
| Throughput | 15kg/m³ | 6-15min | 7-18min | 8-18min | 10-18min |
| Connected Load | kw | 11 | 13 | 13 | 16.5 |
| Outside Dimension | mm | 5030X2270X2900 | 6600X2550X2900 | 8500X2700X2900 | 11300X2800X3100 |
| Weight | kg | 6000 | 8500 | 9500 | 13800 |
FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.
2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied
3. Are you a trading company or a manufacturer?
We are manufacturer.
4. How long is your delivery time?
Normally delivery time is 30~45 days.
5. How many years have your company made this kind of equipment?
More than 10 years.
6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.
7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation
8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.
9. Can you can design the equipment according to our size?
Yes, it is acceptable
10. How many production lines in your factory?
We have total 10 production line.
