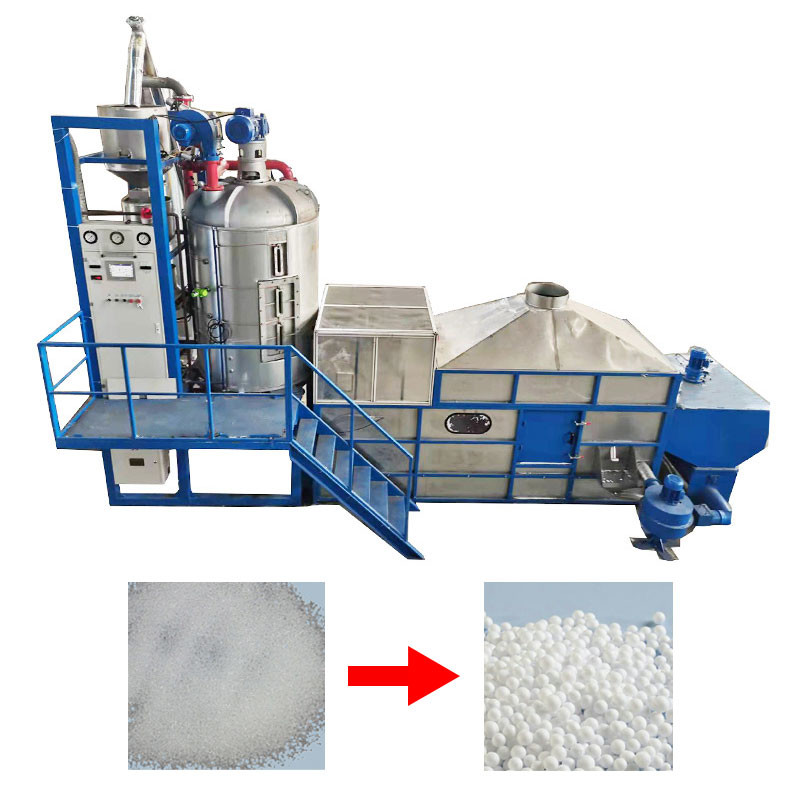

EPS Foam Batch Preexpander With Drying Bed Blue or White

EPS Foam Batch Preexpander With Drying Bed Blue or White
Features Gallery Product Description Request A Quote
Application: EPS Foam For EPS Plant
Warranty: 1 Year
Transport Package: Standard Export Package
Origin: Zhejiang,China
Voltage: AC380V 50Hz
Color: Blue Or White
High Light:

EPS Foam batch preexpander


Blue batch preexpander


White polystyrene expander

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSPEB
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Product Description

EPS Foam Machinery with Drying Bed Batch Pre Expander Equipment

Main Features:
1. All process including filling, expanding, sieving, delumping and conveying to silos are done automatically.
2. With primary and secondary expansion device to get density of 8-30g/l
3.  Fist filling is controlled by frequency converter
4. With power-off protection device
Item Unit PSPEB-A90 PSPEB-A130 PSPEB-A150
Expansion Chamber Diameter mm ∅900 ∅1300 ∅150
Volume 0.85 2.4 5.4
Useable volume 0.6 1.6 4.5
Steam Inlet mm ∅50 ∅65 ∅100
Consumption kg/cycle 2-4 10-12 18-20
Pressure Mpa 0.6-0.8 0.6-0.8 0.6-0.8
Compressed air Inlet mm ∅40 ∅40 ∅50
Consumption m³/cycle 0.3-0.4 0.7-0.9 0.5-0.8
Pressure Mpa 0.6-0.8 0.6-0.8 0.6-0.8
Drainage Drainage port mm ∅100 ∅100 ∅150
Condensation mm ∅40 ∅100 ∅50
Connected load Installing power Kw 17 21 40
Density g/L 12-90 12-30 12-30
Out side dimensions % ±1.5 ±2 ±2
Material conveying mm ∅150 ∅150 ∅200
Overall size (LXWXH) mm 6500X2000X4900 7400X3000X4500 11000X2850X6100
Weight kg 2500 4250 8000
Room height required mm 5000 6000 7000
Productivity kg/h 18g/L 350 12g/L 530 12g/L 1000
kg/h 25g/L 480 15g/L 670 15g/L 1300
kg/h 32g/L 540 20g/L 920 18g/L 1800
kg/h 50g/L 600 30g/L 1220 25g/L 2400

EPS Foam Batch Preexpander With Drying Bed Blue or White 0

EPS Foam Batch Preexpander With Drying Bed Blue or White 1

EPS Foam Batch Preexpander With Drying Bed Blue or White 2EPS Foam Batch Preexpander With Drying Bed Blue or White 3
EPS Foam Batch Preexpander With Drying Bed Blue or White 4


1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.


2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied


3. Are you a trading company or a manufacturer?
We are manufacturer.


4. How long is your delivery time?
Normally delivery time is 30~45 days.


5. How many years have your company made this kind of equipment?
More than 10 years.


6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.


7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation


8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.


9. Can you can design the equipment according to our size?
Yes, it is acceptable


10. How many production lines in your factory?
We have total 10 production line.
