Upright ETPU Machine

Upright ETPU Machine
Features Gallery Product Description Request A Quote
Warranty Period: 1year
Voltage: AC380V 50Hz
Origin: Zhejiang CHINA
Raw Material: ETPU
High Light:

Upright ETPU Machine


380V ETPU Machine


1009 shape molding machine

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSETPU
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 20pcs per month
Product Description

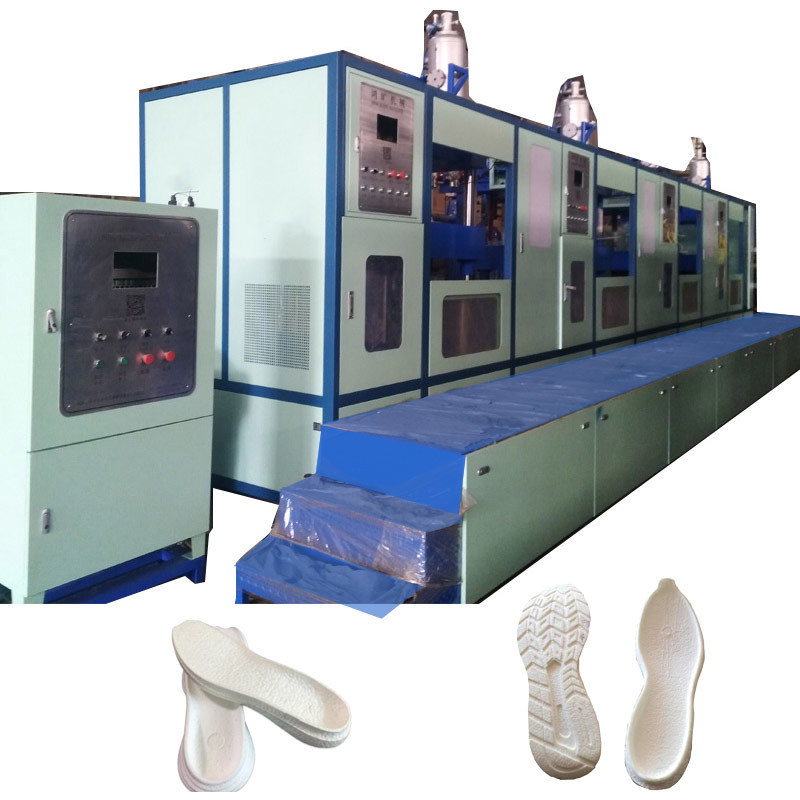

Used to produce high grade sports shoes low custom ETPU equipment (Upright type)

Automatic vertical ETPU popcorn special molding machine, using mitsubishi FXUPLC control production popular popcorn sports insole can 1 out of 2,1 out of 4, can be customized according to customer requirements

1. Mitsubishi PLC control system make the ETPU automatic moulding machine easy control.
2. High-precision seam technology, high-strength square tube welded by tempering prevent form deformation
3. High frequency impulse proportional distribution feed system.
4. The polystyrene moulding machine sets independent air chamber of separate control, flexible for production scheduling.
5. Application of digital proportional control technology offers more accurate control and easier operation, can also make the polystyrene moulding machine has higher production efficiency.


N0. Item Parameter
1 Molding Specifications 1004 1006 1008 1009
2 Precision mold accuracy 0.1mm
3 Steam Pressure Control 0.01kg
4 Ejection Flow control 0.01kg
5 Hydraulic Control System More than double mercury,oil cylinder
6 Hydraulic Clamping Capacity 60T,80T,100T
7 Travel speed 300mm/s
8 Control System Mitsubishi PLC
10 Guide Post Φ100mmX4
11 Steam Inlet DN100
12 Water Inlet DN100
13 Perssure Air Inlet DN65
14 Drainge Outlet DN150


Upright ETPU Machine 0

Upright ETPU Machine 1

Upright ETPU Machine 2


Upright ETPU Machine 3

1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.


2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied


3. Are you a trading company or a manufacturer?
We are manufacturer.


4. How long is your delivery time?
Normally delivery time is 30~45 days.


5. How many years have your company made this kind of equipment?
More than 10 years.


6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.


7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation


8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.


9. Can you can design the equipment according to our size?
Yes, it is acceptable


10. How many production lines in your factory?
We have total 10 production line.
