Automatic EPS Block Molding Machine For Polystyrene Sheet 6m

1
MOQ
negotiation
Price
Automatic EPS Block Molding Machine For Polystyrene Sheet 6m
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380V 50Hz
Power: 36Kw
Weight: 15000kg
Room Height Required: 6000mm
Product: EPS Block
Origin: Zhejiang CHINA
Highlight:

Automatic EPS Block Molding Machine

,

6m EPS Block Molding Machine

,

Polystyrene Sheet Molding Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Certification: -
Model Number: PSBM600
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 5pcs per month
Product Description

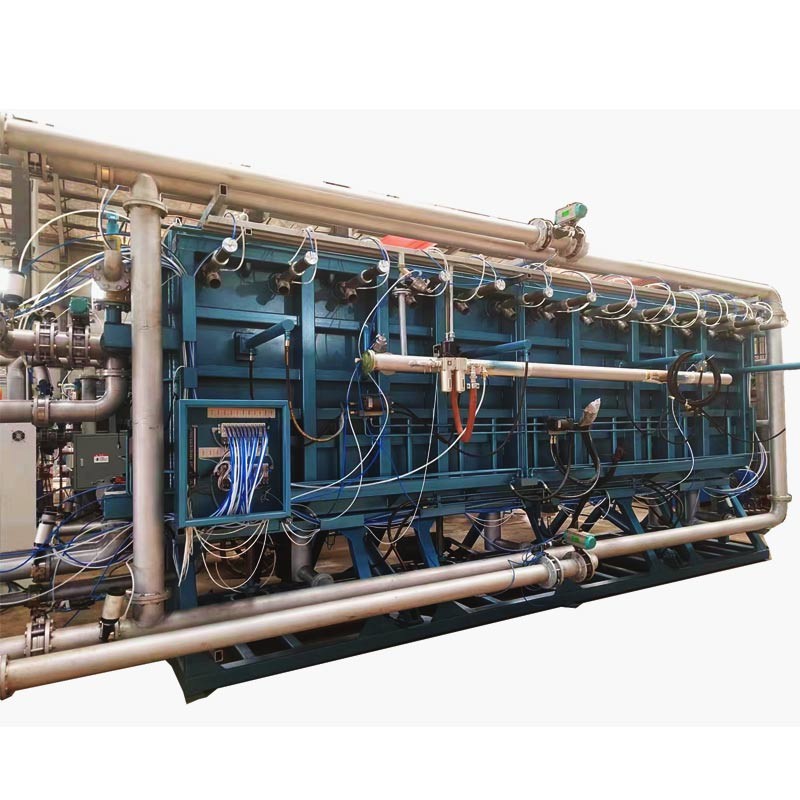

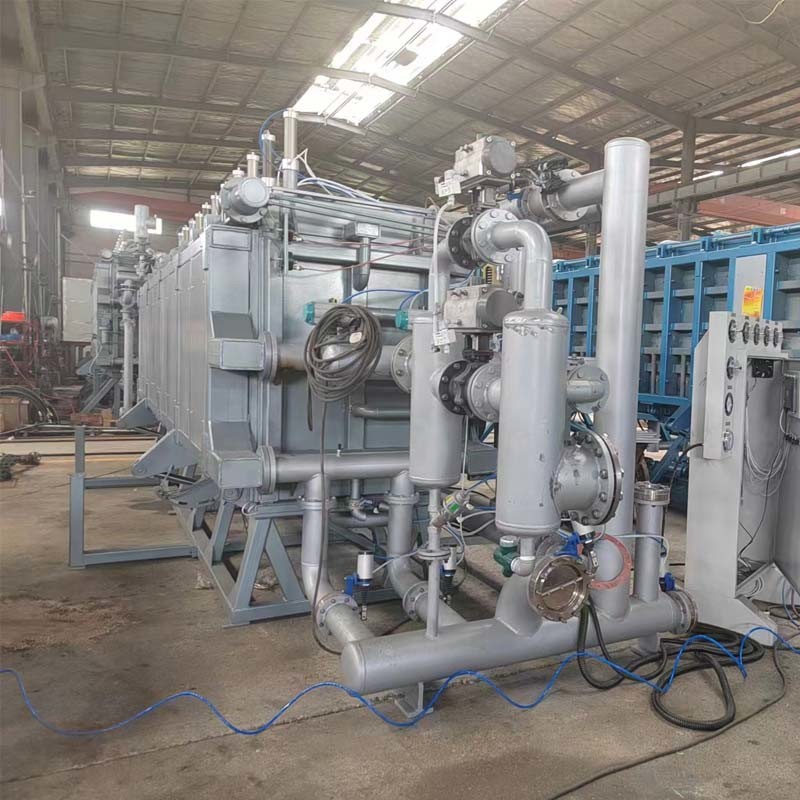

6M POLYSTYRENE SHEET MOLDING MACHINE EPS BLOCK MOLDING MACHINE

Control System
PLC and human-touch Control, automatic operation, convenient maintenance.
Structure Design
High quality square tube and steel plate are used for the machine's structure in perfect Hydraulic station control the signal door, model's stripping,and locking device.Spare parts and fittings are high quality products of well-known brand which keep the machine in along service life.

Item PSBM600
Mould Cavity size 6100X1240X1030
Block Size 6000X1200X1000
Steam Inlet DN150
Steam Consumption 100-130
Steam Pressure 0.8
Compressed Air Inlet DN40
Compressed Air
Consumption
0.4-0.6
Compressed Air
Pressure
0.6
Cooling Water Inlet DN40
Cooling Water Consumption 0.8-1
Cooling Water Pressure 0.4-0.6
Drainage Vacuum Drain 200
Drainage Steam Vent 200
Drainage Condensate 100
Drainage Blower Outlet 150
Throughput 8min
Connected Load 36
Outside Dimension 12600X3960X2906
Weight 15000
Room Height Required 6000



Automatic EPS Block Molding Machine For Polystyrene Sheet 6m 0



FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
