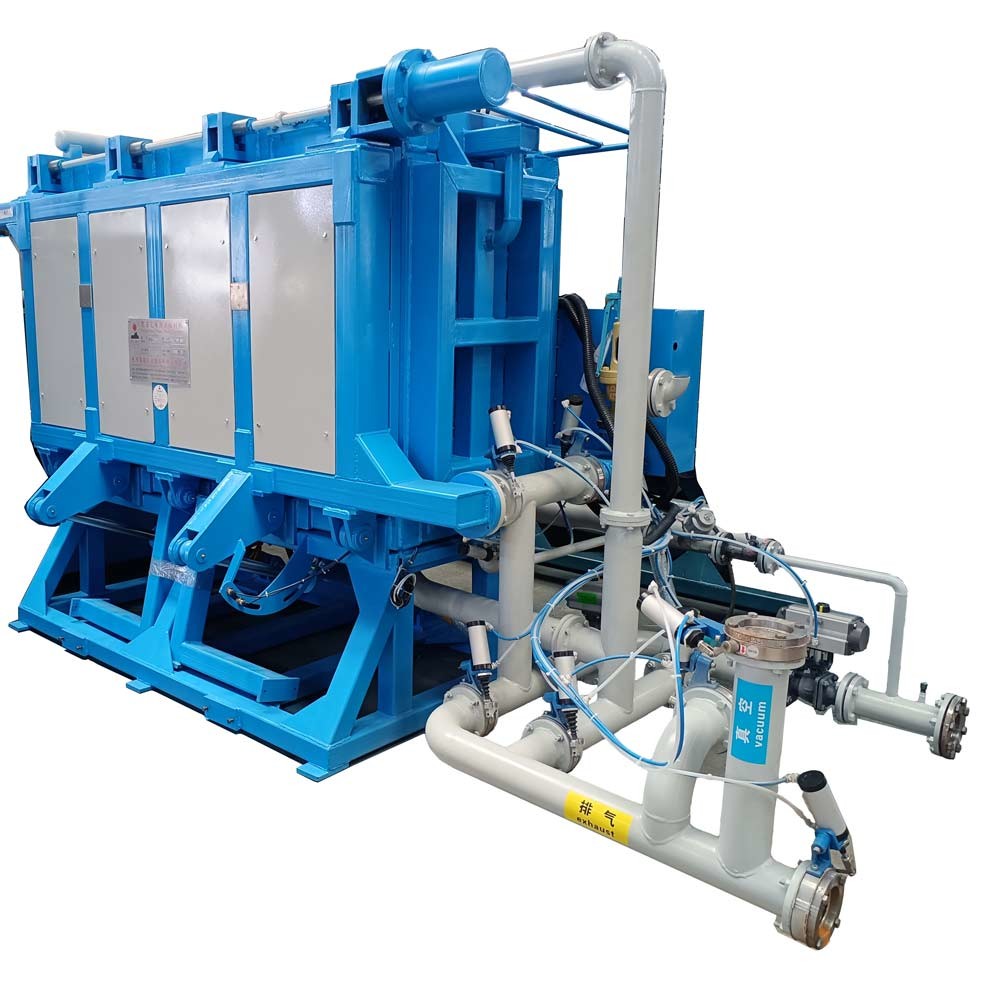

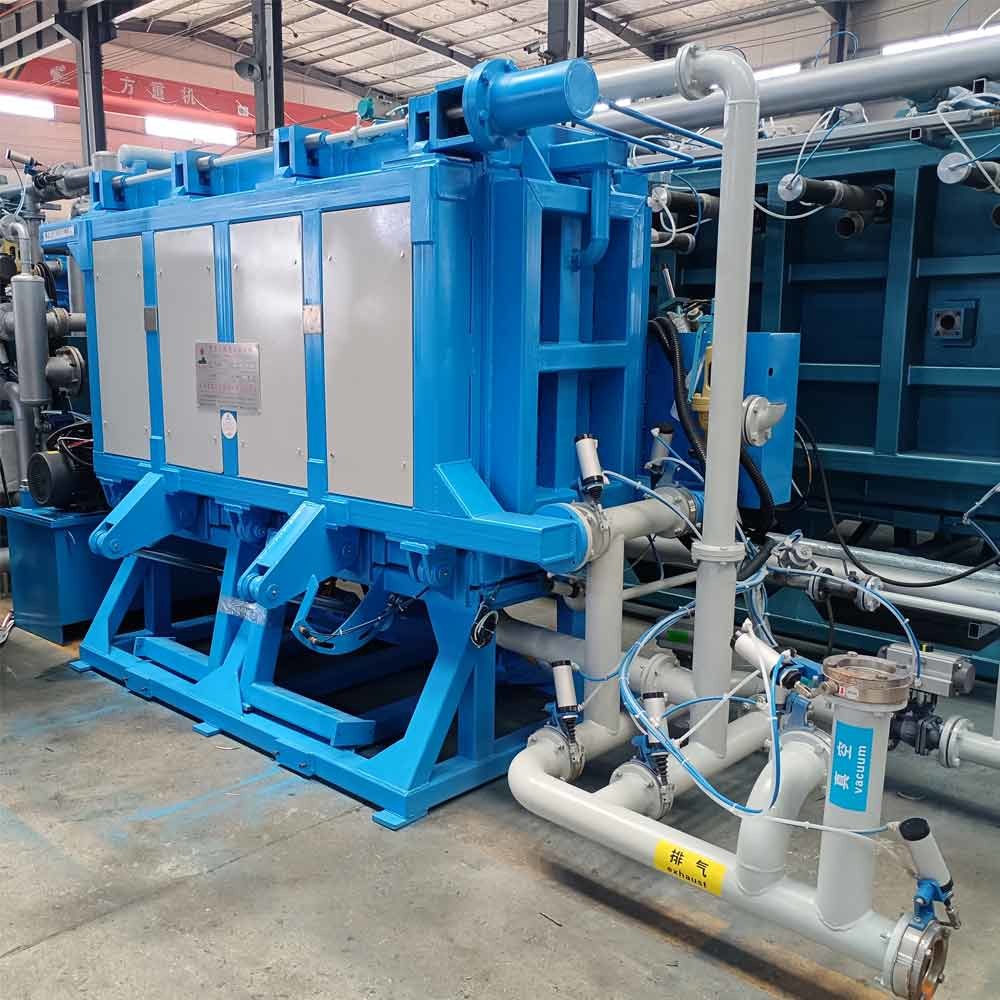

EPS 2M BLOCK MOULDING MACHINE 2M POLYSTYRENE FOAM PLATES VACCUUM MACHINE

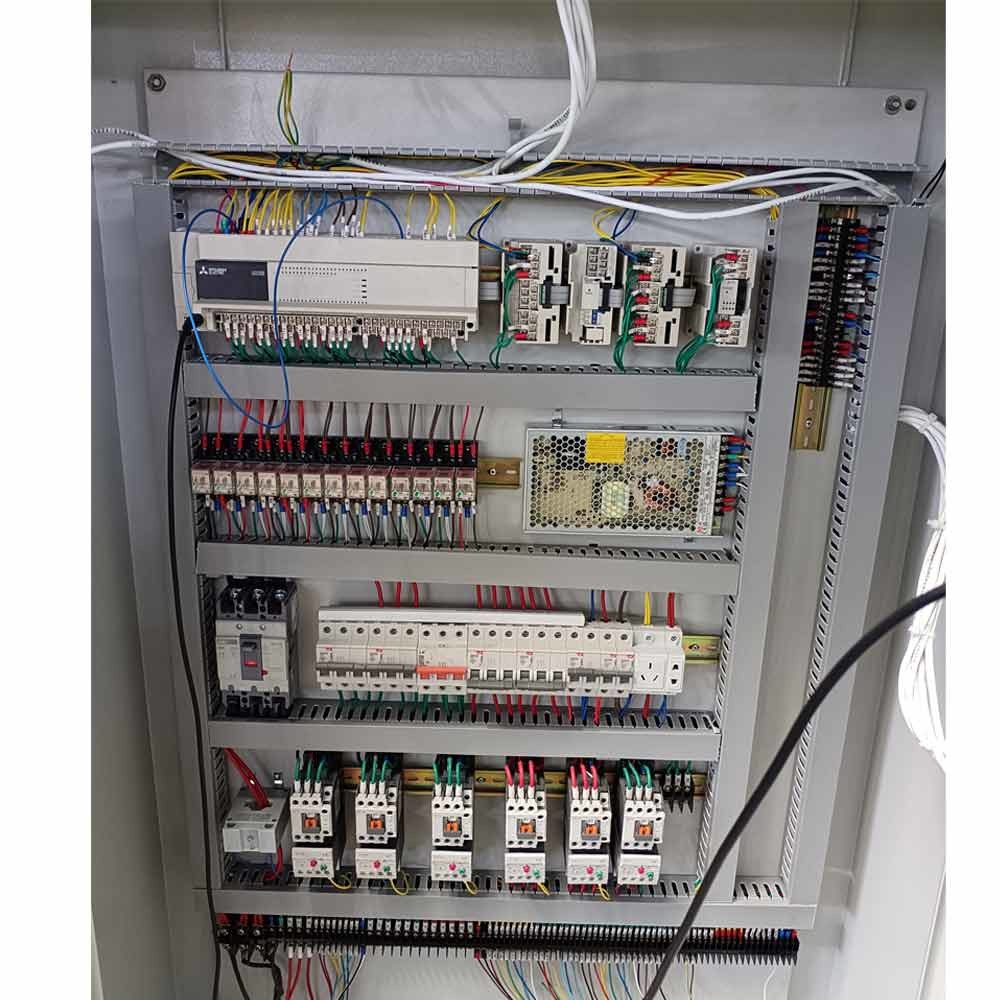

Control System
PLC and human-touch Control, automatic operation, convenient maintenance.
Structure Design
High quality square tube and steel plate are used for the machine's structure in perfect Hydraulic station control the signal door, model's stripping,and locking device.Spare parts and fittings are high quality products of well-known brand which keep the machine in along service life.
| Item | Unit | PSBM200VC |
| Mould Cavity size | mm | 2040X1240X630 |
| Block Size | 12g/L | 2000X1200X600 |
| Steam Inlet | mm | DN100 |
| Steam Consumption | kg/cycle | 20-30 |
| Steam Pressure | Mpa | 0.8 |
| Compressed Air Inlet | mm | DN50 |
| Compressed Air Consumption |
m³/cycle | 1-1.5 |
| Compressed Air Pressure |
Mpa | 0.6 |
| Drainage Steam vent | mm | ∅125 |
| Drainage Blower Outlet | mm | ∅125 |
| Throughput | 15kg/m³ | 5-12min |
| Connected Load | kw | 9.5 |
| Outside Dimension | mm | 4000X2200X2900 |
| Weight | kg | 4200 |
| Room Height Required | mm | 6000 |
