Expanded Polypropylene EPP Molding Machine Fully Automatic

1
MOQ
negotiation
Price
Expanded Polypropylene EPP Molding Machine Fully Automatic
Features Gallery Product Description Request A Quote
Features
Specifications
Mould Dimension: 800X1300mm
Stroke Speed: 300mm/m
Warranty Period: 1year
Origin: Zhejiang CHINA
Steam Pressure: >0.6Mpa
Highlight:

Automatic EPP Molding Machine

,

Expanded Polypropylene EPP Molding Machine

,

Fully Automatic EPP Molding Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSEPP80-130
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 20pcs per month
Product Description

Fully automatic expanded polypropylene shape moulding Machine EPP production line

Main feature:

High Efficiency: EPP machines are known for their high production efficiency. They can rapidly complete the production process of foam products, significantly enhancing productivity. With advanced control systems, these machines enable automated operations, minimizing human intervention and further boosting efficiency.



Item Unit PSEPP80 PSEPP120-14 PSEPP120-16 PSEPP130
Mould Dimension mm 800X1300 1200X1400 1200X1600 1300X1800
Max Product Dimension mm 800X1300X350 1200X1400X350 1200X1600X350 1300X1800X350
Stroke Speed mm/m 300
Steam Perssure
Control Accuracy
bar 0.03-0.08
Steam Perssure Mpa >0.6
Steam Inlet mm DN100
Cooling Water Perssure Mpa >0.4
Cooling Water
Temperature
40-50
Cooling Water Inlet mm DN100
Compressed Air
Pressure
Mpa >0.6
Compressed Air
Inlet
mm DN25
Outside Dimension mm 5000X2700X4100 5000X2800X4500 5000X3000X4500 5000X3200X4600
Weight kg 10000 11000 12000 14000

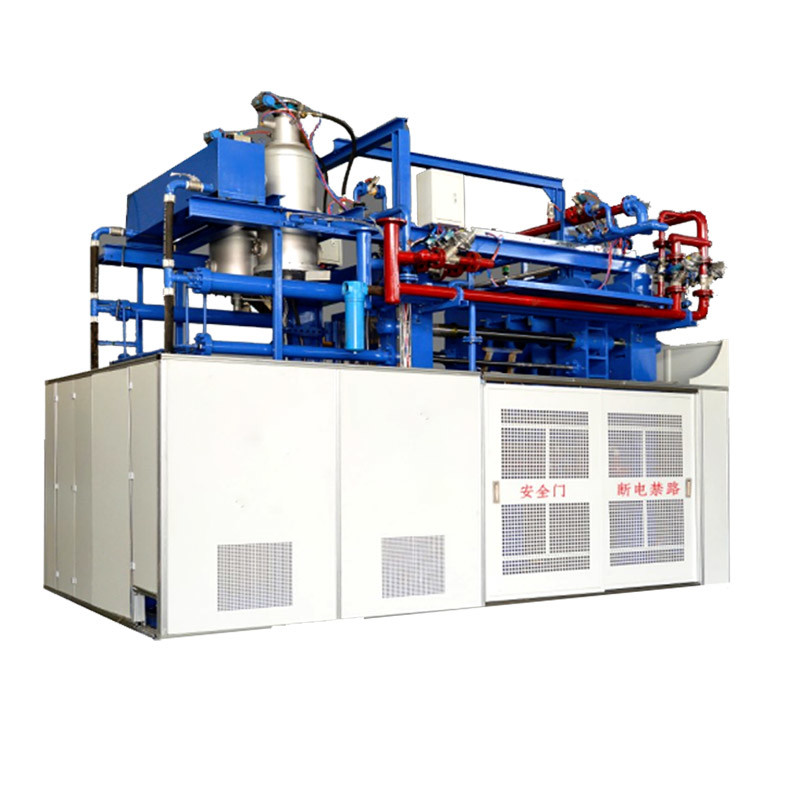

Expanded Polypropylene EPP Molding Machine Fully Automatic 0

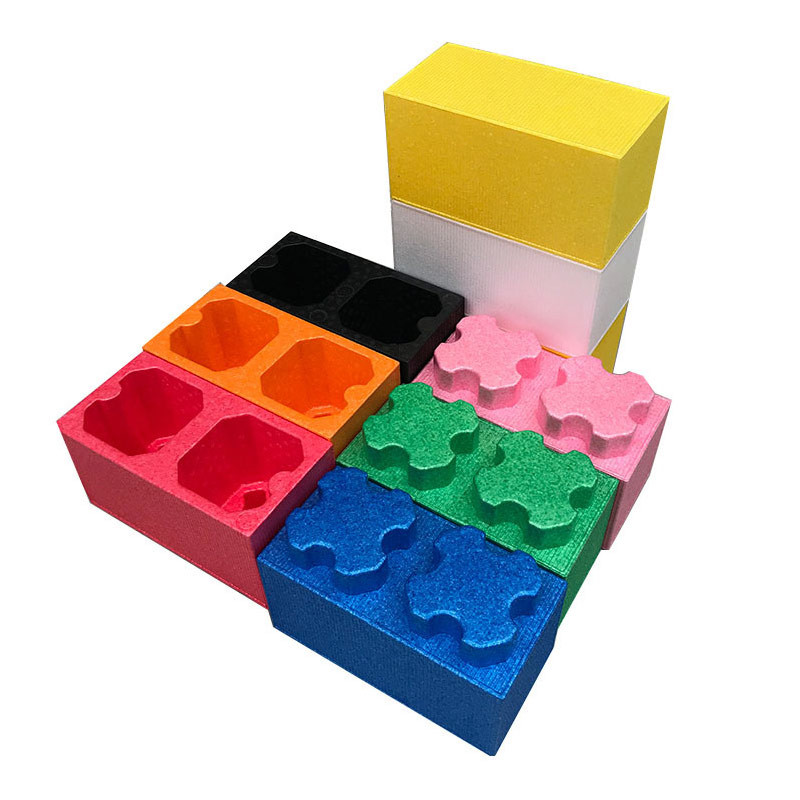

Expanded Polypropylene EPP Molding Machine Fully Automatic 1

FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
