Home /Products/EPS Block Moulding Machine/High Strength EPS Block Moulding Machine For Additional Safety

High Strength EPS Block Moulding Machine For Additional Safety

1
MOQ
negotiation
Price
High Strength EPS Block Moulding Machine For Additional Safety
Features Gallery Product Description Request A Quote
Features
Specifications
Processing Type: Foaming Machine
Mould Cavity Size: 3060X1240X630mm
Block Size: 3000X1200X600 12g/L
Origin: Zhejiang CHINA
Warranty Period: 1year
Steam Inlet: DN100mm
Steam Consumption: 30-40 Kg/cycle
Steam Pressure: 0.8Mpa
Highlight:

Additional Safety EPS Block Moulding Machine

,

High Strength EPS Block Moulding Machine

,

High Strength eps block molding machine
Basic Infomation
Place of Origin: Zhejiang China
Brand Name: PINSHENG
Model Number: PSBM300VC
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

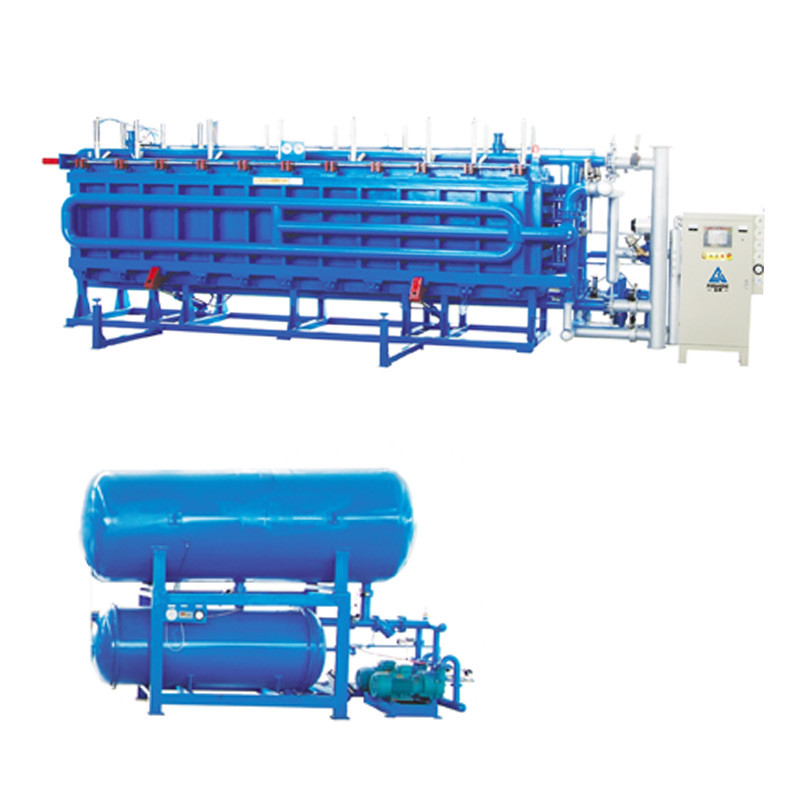

EPS Block Moulding Machine is a fully automatic and high-performance molding equipment.



  • after heat treatment all mold frames are processed through sand-blasting,greatly improve corrosion performance and service life of the equipment.
  • Adopts three German gauge and safety valve for multi-safety protection.
Item Unit PSBM200VC PSBM300VC PSBM400VC PSBM600VC PSBM800VC
Mould Cavity size mm 2040X1240X630 3060X1240x630 4080X1240x630 6100X1240X630 8120X1240X630
Block Size 12g/L 2000X1200X600 3000X1200X600 4000X1200X600 6000x1200X600 8000X1200X600
Steam Inlet mm DN100 DN100 DN150 DN150 DN200
Steam Consumption Kg/cycle 20-30 30-40 45-55 60-70 80-100
Steam Pressure Mpa 0.8 0.8 0.8 0.8 0.8
Compressed Air Iniet mm DN50 DN50 DN50 DN50 DN50
Compressed AirConsumption m3/cycle 1-1.5 1.5-1.8 1.8-2 2-2.3 2.2-2.5
Compressed Air Pressure Mpa 0.6 0.6 0.6 0.6 0.6
Drainage Steam vent mm Ф125 Ф150 Ф200 Ф200 Ф250
Drainage Blower Outlet mm Ф125 Ф125 Ф150 Ф150 Ф200
Throughput 15kg/m3 5-12min 6-15min 7-18min 8-18min 10-18min
Connected Load Kw 9.5 11 13 13 16.5
Outside Dimension mm 4000X2200x2900 5030x2270x2900 6600x2550x2900 8500X2700X2900 11300x2800X3100
Weight kg 4200 6000 8500 9500 13800



High Strength EPS Block Moulding Machine For Additional Safety 0

High Strength EPS Block Moulding Machine For Additional Safety 1High Strength EPS Block Moulding Machine For Additional Safety 2

Tag:

1240mm EPS Block Moulding Machine

1030mm EPS Block Moulding Machine

3060mm eps block making machine
