Home /Products/EPS Block Moulding Machine/Fully Automatic EPS Vacuum Block Making Machine Safety

Fully Automatic EPS Vacuum Block Making Machine Safety

1
MOQ
negotiation
Price
Fully Automatic EPS Vacuum Block Making Machine Safety
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380V 50Hz
Power: 20Kw
Weight: 5000kg
Room Height Required: 6000mm
Product: EPS Block
Origin: Zhejiang CHINA
Warranty Period: 1year
Contrl System: PLC
Highlight:

Vacuum Block Making Machine

,

Fully Automatic EPS Block Moulding Machine

,

Safety EPS Block Moulding Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Certification: -
Model Number: PSBM200B
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 5pcs per month
Product Description

EPS BLOCK MAKING MACHINE POLYSTYRENE SHEET EPS BLOCK MOULDING MACHINE

Main features :
Mechanical Structure :
a.the machine mold is welded onto strong rectangular tubes and steel plates which ensure high srength for the additonal safety of the machine.
b.after heat treatment all mold frames are processed through sand-blasting , greatly improve corrosion performance and service life of the equipment c.Adopts three German gauge and safety valve for multi-safety protection.
Steam System :
Three ball valves ,compared to one big steam valve control system saves 20% steam ,with ISO-standard butterfly valves,which greatly improves stability and increases machine life.
Control System:
a.adopts PLC(Mitsubishi) and HMI(WEINVIEW) making operation easy. b.stroke is adjusted by the encoder controlled through the HMI settings , easy adjustment and high accuracy .

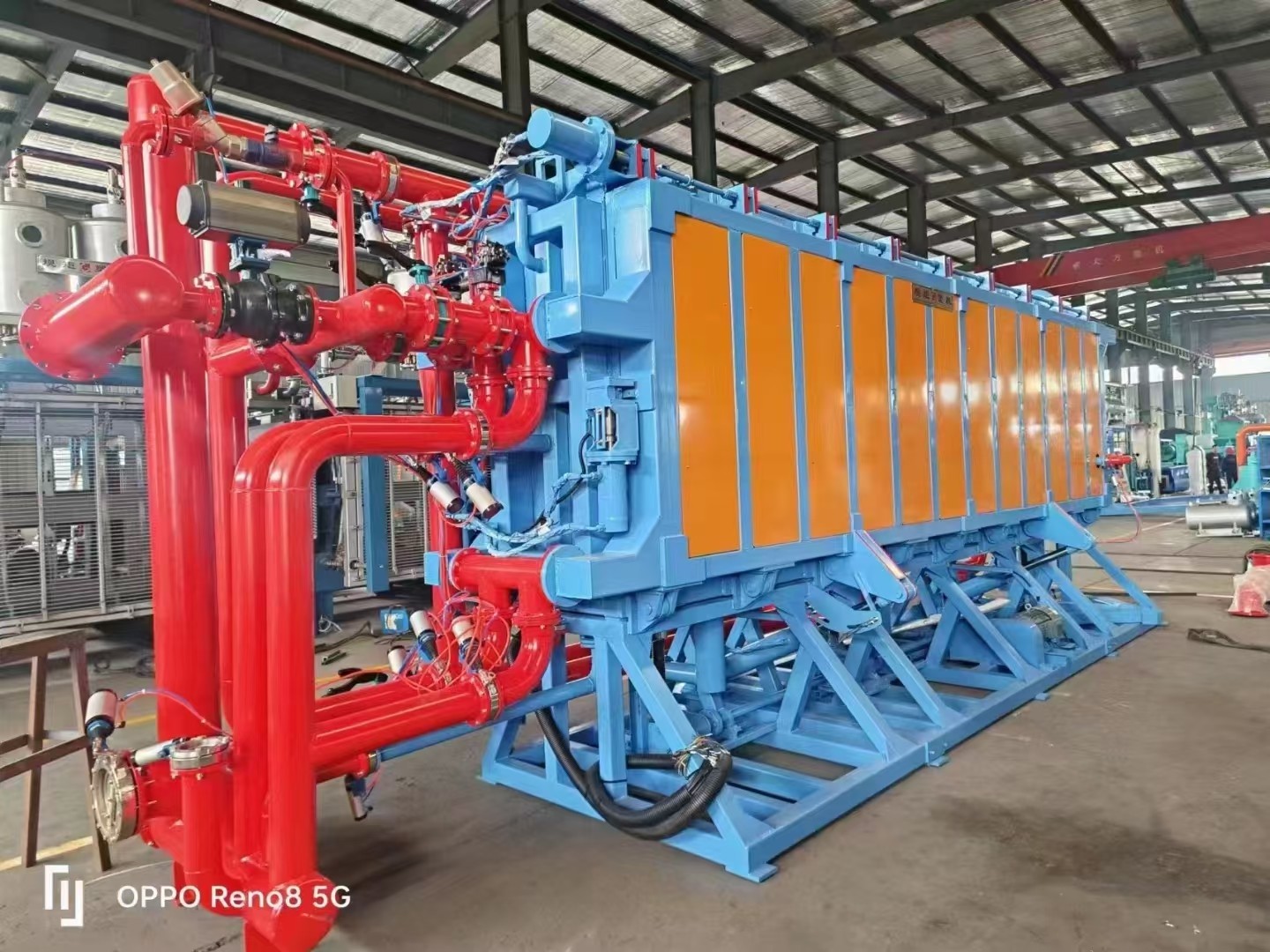

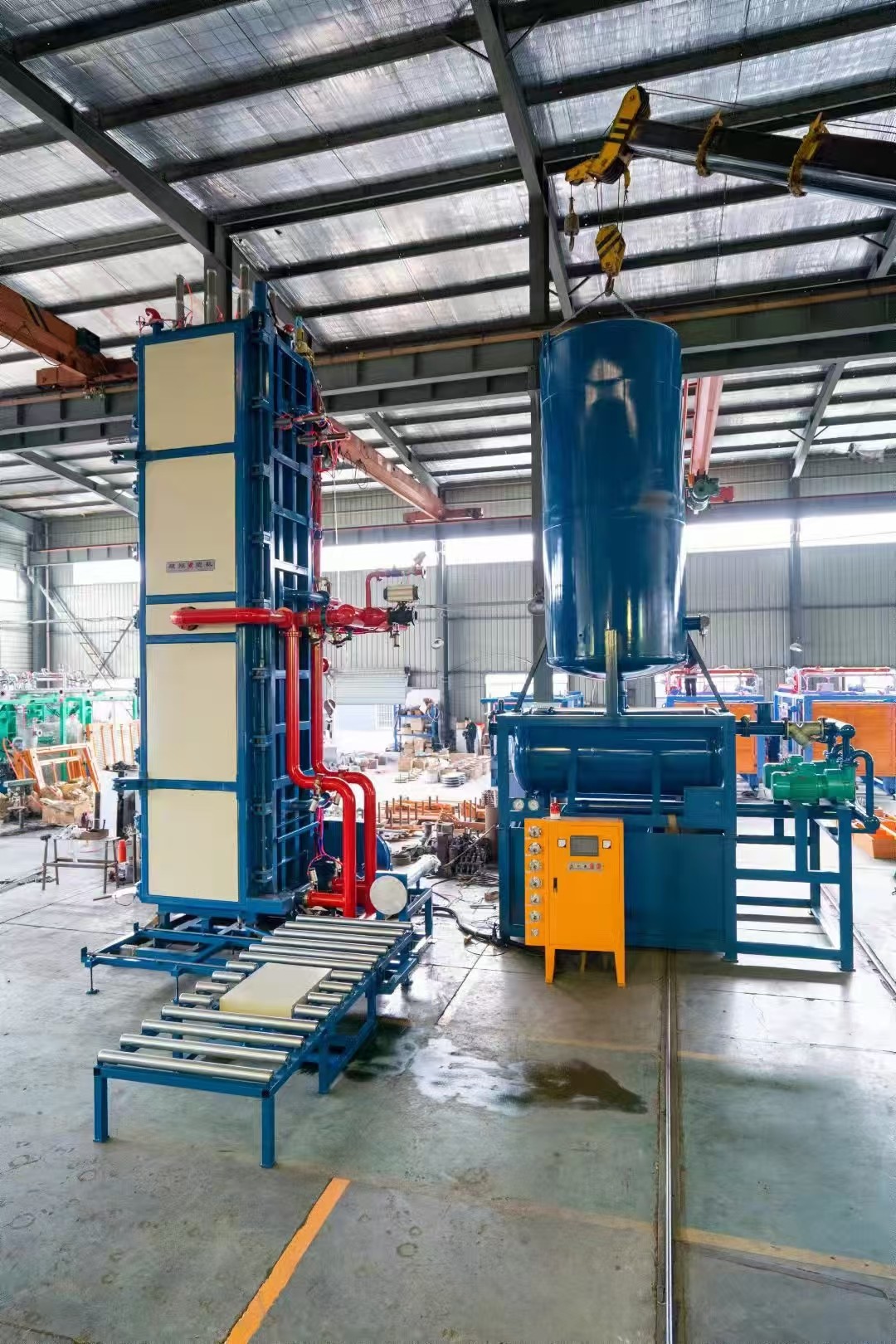

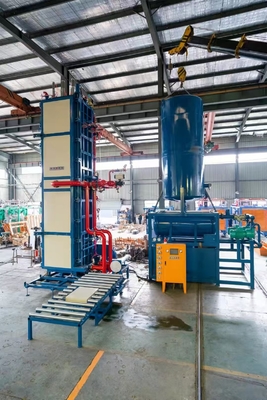

Fully Automatic EPS Vacuum Block Making Machine Safety 0Fully Automatic EPS Vacuum Block Making Machine Safety 1Fully Automatic EPS Vacuum Block Making Machine Safety 2Fully Automatic EPS Vacuum Block Making Machine Safety 3



Fully Automatic EPS Vacuum Block Making Machine Safety 4
