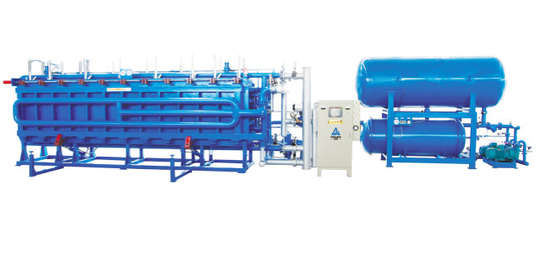

Fully Automatic EPS Foam Vacuum Block Forming Machine

1
MOQ
negotiation
Price
Fully Automatic EPS Foam Vacuum Block Forming Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Processing Type: Foaming Machine
Cycle Time: 120-300S
Room Height Required: 5m
Origin: Zhejiang CHINA
Warranty Period: 1year
Machine Dimension: 2040X1240X1030mm
Heating Method: Electricity
Computerized: Computerized
Customized: Customized
Product Type: EPS
Highlight:

EPS Foam Vacuum Block Forming Machine

,

Vacuum Block Forming Machine

,

Fully Automatic EPS Block Moulding Machine

Basic Infomation
Place of Origin: Zhejiang China
Brand Name: PINSHENG
Model Number: PSBM200-800B
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description
Factory Price Automatic Expandable Polystyrene Foam Vacuum Forming EPS Block Moulding Machine.

EPS foam blocks are large, rectangular or square-shaped blocks made from expanded polystyrene beads, commonly used in construction, insulation, and other applications.

Here are some key points about EPS block molding machines:

The machine is adopted with Mitsubishi PLC and Taiwan HMl control theopening & clamping mold ,automatic feeding ,heating feeding. heating andheat preservation ,wind cooling,stripping ,product ejection and other automaticcycling procedures.
The machine is set with high-efficiency vacuum pump and Steam coolingdevice with quick mold speed of the product and low water content ,especiallywhich can produce thicken foam plastic board with hiah production eficiencyand improve efficiency of more than twice to the common board machine
The machine is welded with high -guality square pipe ,high quality shapesteel and heat treatment ,which can bear swelling pressure of high-precisionproduct with high strength and non-deformation
The surface of mold cavity of the machie is adopted with japanese Teflondope to ensure that the product can be easy to strip for improving the aesthetics of the appearance .

Key Features of EPS Block Moulding Machines:

Heating System: Utilizes steam or hot water to expand and mold EPS beads into solid blocks.
Moulds: Available in various sizes and shapes to produce blocks that meet specific customer requirements.
Control System: Often equipped with automated controls for precise temperature and pressure management, enhancing production efficiency.
Production Capacity: Varies from small to large-scale operations, allowing manufacturers to produce anywhere from a few hundred to several thousand blocks per day.
Energy Efficiency: Many modern machines are designed to minimize energy consumption, contributing to lower operational costs.

Applications:

Construction: Used for insulation panels, roof insulation, and lightweight fill.
Packaging: Provides protective packaging solutions for fragile items.
Furniture: Used in the production of lightweight furniture components.

Item Unit PSBM200B PSBM300B PSBM400B PSBM600B PSBM800B
Mould Cavity size mm 2040X1240X1030 3060X1240X1030 4080X1240X1030 6100X1240X1030 8140X1240X1030
Block Size 12g/L 2000X1200X1000 3000X1200X1000 4000X1200X1000 6000X1200X1000 8000X1200X1000
Steam Inlet mm DN50 DN50 DN150 DN150 DN150
Steam Consumption kg/cycle 25-45 45-65 60-85 95-120 115-160
Steam Pressure Mpa 0.8 0.8 0.8 0.8 0.8
Compressed Air Inlet mm DN40 DN40 DN40 DN40 DN40

Compressed Air

Consumption

㎡/cycle 0.2-0.4 0.4-0.6 0.6-0.8 0.4-0.6 0.4-0.6

Compressed Air

Pressure

Mpa 0.6 0.6 0.6 0.6 0.6
Cooling Water Inlet mm DN40 DN40 DN40 DN40 DN40

Cooling Water

Consumption

㎡/cycle 0.4 0.6 0.8 1 1.2
Cooling Water Pressure Mpa 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4
Drainage Vacuum Drain mm 100 125 125 150 150
Drainage Condensate mm 100 100 100 100 100
Drainage Blower Outlet mm 100 100 150 150 150
Throughput 15kg/㎡ 4min 6min 7min 8min 8min
Connected Load kw 20 24 25 33 41
Outside Dimension mm 5700X4000X2800 7200X4500X3000 11000X4500X3000 12600X34500X3100 15700X4600X3500
Weight kg 5000 6500 10000 14000 17000
Room Height Required mm 6000 6000 6000 6000 6000





Fully Automatic EPS Foam Vacuum Block Forming Machine 0

Fully Automatic EPS Foam Vacuum Block Forming Machine 1Fully Automatic EPS Foam Vacuum Block Forming Machine 2
