Name: High Production Capacity EPS Block Moulding Machine For Fish Vegetable Box
Brand: NINGBO PINSHENG MACHINERY CO.,LTD
SKU: PSBM200-800B
Price: 39,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Processing Type: Foaming Machine

Cycle Time: 120-300S

Room Height Required: 5m

Origin: Zhejiang CHINA

Warranty Period: 1year

Machine Dimension: 2040X1240X1030mm

Heating Method: Electricity

Computerized: Computerized

Customized: Customized

Product Type: EPS

Highlight:

Fish Vegetable Box Moulding Machine

High Production Capacity EPS machine

Fish Vegetable Box EPS machine

Basic Infomation

Place of Origin: Zhejiang China

Brand Name: PINSHENG

Model Number: PSBM200-800B

Payment & Shipping Terms

Delivery Time: 6-10days

Payment Terms: T/T LC

Supply Ability: 10pcs per month

Gallery

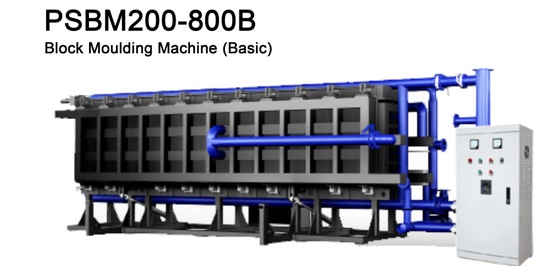

High Production Capacity EPS Block Moulding Machine For Fish Vegetable Box

Product Description

Automatic Vacuum EPS Block Moulding Machine For Fish Vegetable.

Key Features

High Production Capacity: Designed for efficient mass production of EPS blocks.
Automation: Many models come with automated systems for improved efficiency and reduced labor costs.
Energy Efficiency: Optimized heating and cooling systems to minimize energy consumption.

Components

Moulding Chamber: Contains the moulds where EPS beads are expanded and shaped into blocks.
Heating System: Uses steam or hot air to expand the polystyrene beads.
Cooling System: Cools the blocks after moulding to solidify their shape.
Control Panel: Allows operators to monitor and adjust parameters like temperature and pressure.

Applications

Construction: Used as insulation panels in buildings.
Packaging: Provides protective packaging solutions for fragile items.
Decorative Items: Can be processed into various decorative shapes and designs.

Item	Unit	PSBM200B	PSBM300B	PSBM400B	PSBM600B	PSBM800B
Mould Cavity size	mm	2040X1240X1030	3060X1240X1030	4080X1240X1030	6100X1240X1030	8140X1240X1030
Block Size	12g/L	2000X1200X1000	3000X1200X1000	4000X1200X1000	6000X1200X1000	8000X1200X1000
Steam Inlet	mm	DN50	DN50	DN150	DN150	DN150
Steam Consumption	kg/cycle	25-45	45-65	60-85	95-120	115-160
Steam Pressure	Mpa	0.8	0.8	0.8	0.8	0.8
Compressed Air Inlet	mm	DN40	DN40	DN40	DN40	DN40
Compressed Air Consumption	㎡/cycle	0.2-0.4	0.4-0.6	0.6-0.8	0.4-0.6	0.4-0.6
Compressed Air Pressure	Mpa	0.6	0.6	0.6	0.6	0.6
Cooling Water Inlet	mm	DN40	DN40	DN40	DN40	DN40
Cooling Water Consumption	㎡/cycle	0.4	0.6	0.8	1	1.2
Cooling Water Pressure	Mpa	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Drainage Vacuum Drain	mm	100	125	125	150	150
Drainage Condensate	mm	100	100	100	100	100
Drainage Blower Outlet	mm	100	100	150	150	150
Throughput	15kg/㎡	4min	6min	7min	8min	8min
Connected Load	kw	20	24	25	33	41
Outside Dimension	mm	5700X4000X2800	7200X4500X3000	11000X4500X3000	12600X34500X3100	15700X4600X3500
Weight	kg	5000	6500	10000	14000	17000
Room Height Required	mm	6000	6000	6000	6000	6000
