Name: Custom-Made ETPU Machine For Fish Box Package Production Line
Brand: NINGBO PINSHENG MACHINERY CO.,LTD
SKU: PSETPU1004-1009
Price: 39,500.00 USD
Availability: InStock

Custom-Made ETPU Machine For Fish Box Package Production Line

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Voltage: AC380V 50Hz

Warranty Period: 1year

Origin: Zhejiang CHINA

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Control System: PLC

Model: Machine

Power Source: Electric

Raw Material: ETPU

Highlight:

Custom-Made ETPU Machine

Fish Box Package Production Line

Fish Box Package ETPU Machine

Basic Infomation

Place of Origin: CHINA

Brand Name: PIN SHENG

Model Number: PSETPU1004-1009

Payment & Shipping Terms

Delivery Time: 6-10days

Payment Terms: T/T LC

Supply Ability: 20pcs per month

Gallery

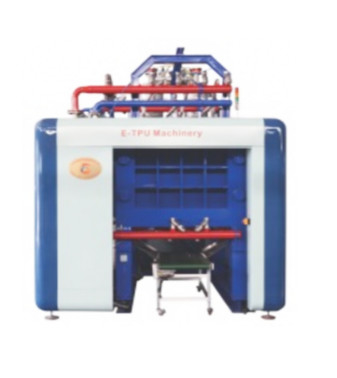

Custom-Made ETPU Machine For Fish Box Package Production Line

Product Description

Auto Continuous ETPU Machine For Fish Box Package Production Line.

Key Features

High Resilience: Produces foam that can withstand repeated stress and is highly elastic.
Versatile Production: Capable of creating various shapes and sizes for different uses.
Fast Production Cycles: Optimized for efficiency, allowing for quick turnaround times.

Components

Feeding System: Introduces raw ETPU material into the machine for processing.
Heating Element: Melts the thermoplastic polyurethane to facilitate expansion.
Moulding Chamber: Where the material is shaped into the desired form.
Cooling System: Solidifies the foam after it has been moulded.
Control Panel: Allows operators to monitor and adjust settings for temperature, pressure, and timing.

Applications

Footwear: Used in producing soles and cushioning materials.
Automotive: Components for seats, interior fittings, and insulation.
Sports Equipment: Padding and protective gear for athletes.

N0.	ltem	Parameter
1	Molding Specifications	1004 1006 1008 1009
2	Precision mold accuracy	0.1mm
3	Steam Pressure Control	0.01kg
4	Ejection Flow control	0.01kg
5	Hydraulic Control System	More than double mercury,oil cylinder
6	Hydraulic Clamping Capacity	60T,80T,100T
7	Travel speed	300mm/s
8	Control System	Mitsubishi PLC
9	HMI	WEINVLEW
10	Guide Post	100mmX4
11	Steam Inlet	DN100
12	Water Inlet	DN100
13	Perssure Air Inlet	DN65
14	Drainge Outlet	DN150

Custom-Made ETPU Machine For Fish Box Package Production Line 0

Custom-Made ETPU Machine For Fish Box Package Production Line 3

Custom-Made ETPU Machine For Fish Box Package Production Line 4
