Electricity Heating Full Auto EPS Block Moulding Machine For Fish Vegetable Box

1
MOQ
negotiation
Price
Electricity Heating Full Auto EPS Block Moulding Machine For Fish Vegetable Box
Features Gallery Product Description Request A Quote
Features
Specifications
Processing Type: Foaming Machine
Cycle Time: 120-300S
Origin: Zhejiang CHINA
Warranty Period: 1year
Heating Method: Electricity
Computerized: Computerized
Customized: Customized
Product Type: EPS
Highlight:

Full Auto EPS Block Moulding Machine

,

Fish Vegetable Box Moulding Machine

,

Electricity Heating EPS Block Moulding Machine

Basic Infomation
Place of Origin: Zhejiang China
Brand Name: PINSHENG

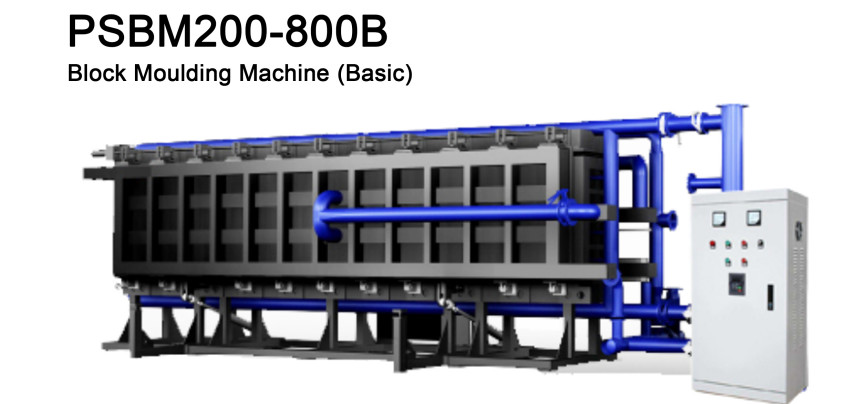

Model Number: PSBM200-800B
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description
Energy Efficiency EPS Block Moulding Machine For Fish Vegetable Box.

Working Principle
The machine typically operates using a vertical structural design, constructed from high-quality welded steel profiles with stress-relief heat treatment to ensure strength and resistance to deformation from high-density product expansion. It integrates advanced penetration heating technology, distributing steam evenly through multiple air channels to reduce energy consumption. A dual-feed system with high-pressure suction fans ensures efficient material input, while an optimized cooling system guarantees uniform density and dimensional accuracy in the final EPS blocks.

Key Features

  1. High-Quality Output
    • Produces EPS blocks with uniform density, precise dimensions, and excellent thermal insulation, shock absorption, and buffering properties, suitable for packaging, construction, and other industries.
  2. High Efficiency
    • Advanced process control enables rapid molding and short cycle times. Fully automated models support continuous production, significantly enhancing output capacity.
  3. Energy Saving
    • Optimized steam intake and cooling systems reduce energy consumption, balancing production quality with cost-effectiveness.

Applications

  • Packaging Industry: Manufactures protective foam blocks for electronics, home appliances, glassware, and other fragile items, ensuring safe transportation and storage.
  • Construction Industry: Produces EPS insulation boards for building walls and roofs, reducing energy loss and improving indoor comfort.
  • Other Fields: Used in crafting display models, decorative materials, floating components for marine applications, and more.

Selection Considerations

  1. Production Capacity: Choose models based on daily output requirements (e.g., 5–20 cubic meters per day).
  2. Automation Level: Higher automation reduces labor costs and improves consistency but involves higher initial investment.
  3. Machine & Mold Size: Ensure the equipment fits within the production facility and supports the required block dimensions and shapes.
  4. After-Sales Support: Prioritize suppliers offering reliable maintenance, technical support, and mold customization services.
Item Unit PSBM200B PSBM300B PSBM400B PSBM600B PSBM800B
Mould Cavity size mm 2040X1240X1030 3060X1240X1030 4080X1240X1030 6100X1240X1030 8140X1240X1030
Block Size 12g/L 2000X1200X1000 3000X1200X1000 4000X1200X1000 6000X1200X1000 8000X1200X1000
Steam Inlet mm DN50 DN50 DN150 DN150 DN150
Steam Consumption kg/cycle 25-45 45-65 60-85 95-120 115-160
Steam Pressure Mpa 0.8 0.8 0.8 0.8 0.8
Compressed Air Inlet mm DN40 DN40 DN40 DN40 DN40

Compressed Air

Consumption

㎡/cycle 0.2-0.4 0.4-0.6 0.6-0.8 0.4-0.6 0.4-0.6

Compressed Air

Pressure

Mpa 0.6 0.6 0.6 0.6 0.6
Cooling Water Inlet mm DN40 DN40 DN40 DN40 DN40

Cooling Water

Consumption

㎡/cycle 0.4 0.6 0.8 1 1.2
Cooling Water Pressure Mpa 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4
Drainage Vacuum Drain mm 100 125 125 150 150
Drainage Condensate mm 100 100 100 100 100
Drainage Blower Outlet mm 100 100 150 150 150
Throughput 15kg/㎡ 4min 6min 7min 8min 8min
Connected Load kw 20 24 25 33 41
Outside Dimension mm 5700X4000X2800 7200X4500X3000 11000X4500X3000 12600X34500X3100 15700X4600X3500
Weight kg 5000 6500 10000 14000 17000
Room Height Required mm 6000 6000 6000 6000 6000
