Beads Foaming Batch Pre Expander 9.5kw 3100x1500x3500mm

1
MOQ
negotiation
Price
Beads Foaming Batch Pre Expander 9.5kw 3100x1500x3500mm
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: AC380V 50Hz
Installing Power: 9.5kw
Warranty Period: 1 Year
Overall Size (L*W*H): 3100X1500X3500mm
Steam Consumption: 3-5 Kg/cycle
Steam Inlet: ∅25 Mm
Compressed Air Consumption: 0.5-0.9 M³/cycle
Density: 12-30 G/L
12g/L: 70-90 Kg/h
18g/L: 110-120 Kg/h
20g/L: 160-180 Kg/h
30g/L: 200-220 Kg/h
High Light:

Beads Foaming Batch Pre Expander

,

9.5kw Batch Pre Expander

,

3500mm preexpander

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSPEB-N70
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

EPS Expandable Polystyrene Beads Foaming Machine Batch Pre-expander PSPEB-N70.

Main features :
The machine adopts Mitsubishi PLC and Taiwan HMI with atuo to filling material,auto electronic weighint,auto controlling chamber temperature ,
pressure and level testing to .
Steam system:Steam pressure reducer and angle valve to contorl steam.
Fillng system:Adopts electronic weighing system ,setting filling weight to HMI for material filling automatically .
Material level control:Adopts laser sensor to control the expansion level.
Electronic control: Mitsubishi PLC and Taiwan HMI,chneider components

Item Unit PSPEB-N70
Expansion Chamber Diameter mm 500
Height mm 1000
Volume 0.2
Steam Inlet mm 25
Consumption kg/cycle 3-5
Pressure Mpa 0.6-0.8
Compressed air Inlet mm 20
Consumption m³/cycle 0.5-0.9
Pressure Mpa 0.6-0.8
Drainage Blower outlet mm 65
The total emission mm 65
Connected load Installing power Kw 9.5
Consumption kg/cycle 0.2
Density g/L 12-30
Overall size (LXWXH) mm 3100X1500X3500
Weight kg 1500
Room height required mm 5000
Productivity 12g/L kg/h 70-90
18g/L kg/h 110-120
20g/L kg/h 160-180
30g/L kg/h 200-220

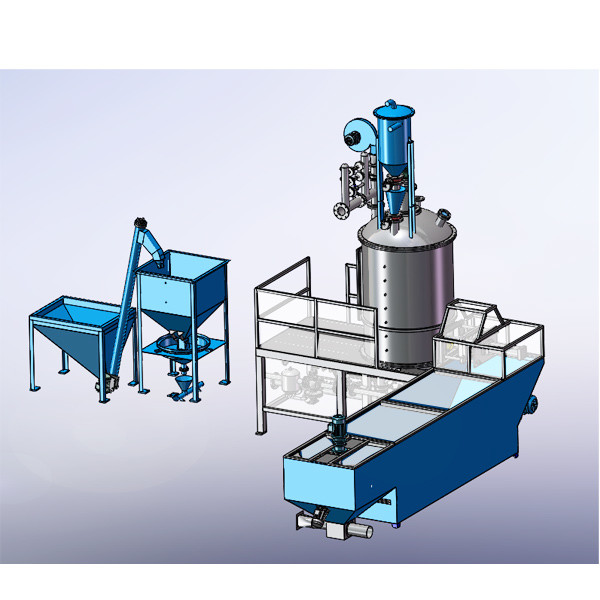

Beads Foaming Batch Pre Expander 9.5kw 3100x1500x3500mm 0

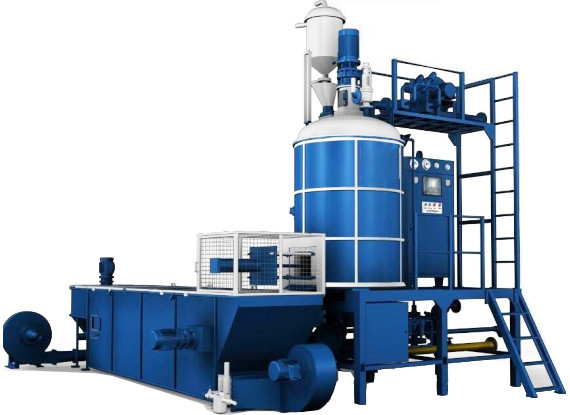

Beads Foaming Batch Pre Expander 9.5kw 3100x1500x3500mm 1

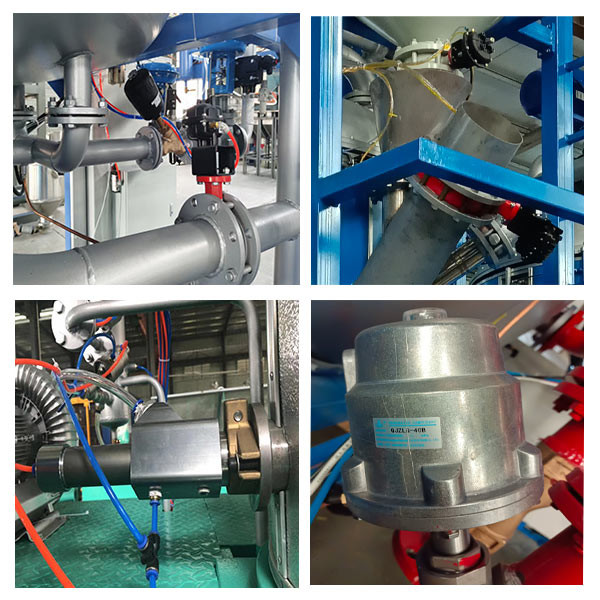

Beads Foaming Batch Pre Expander 9.5kw 3100x1500x3500mm 2

FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
