Automatic EPS Pre Expander Machine Batch 9kw-9.3kw

1
MOQ
negotiation
Price
Automatic EPS Pre Expander Machine Batch 9kw-9.3kw
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: AC380V,50Hz
Power: 9-9.3kw
Raw Material: EPS
Warranty Period: 1year
Origin: Zhejiang CHINA
Type: Bacth
High Light:

9.3kw pre expander machine

,

EPS pre expander machine

,

Automatic eps preexpander

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Certification: -
Model Number: PSPEB-50-60
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 20pcs per month
Product Description

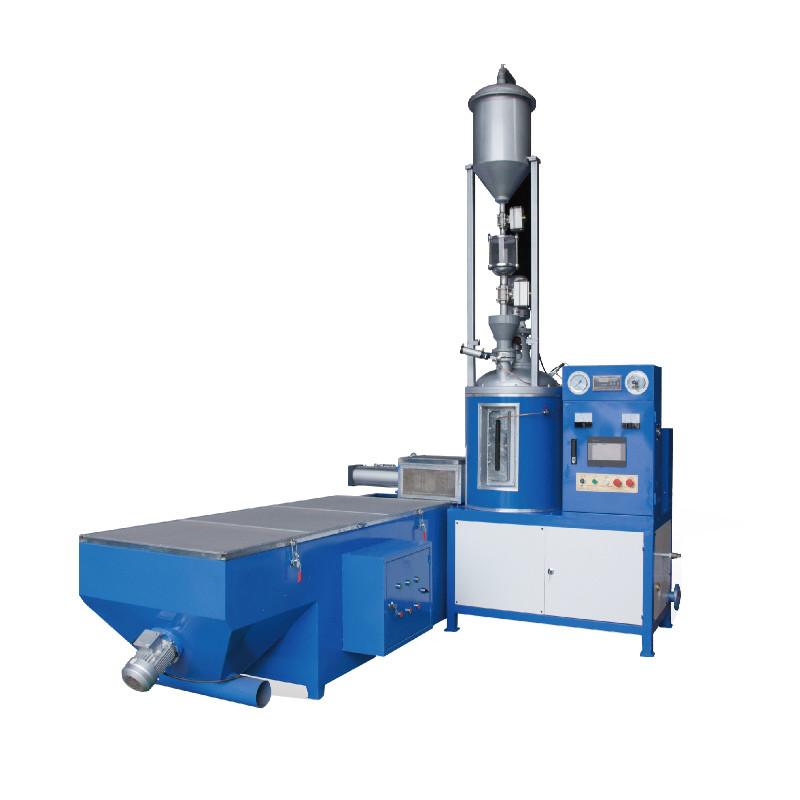

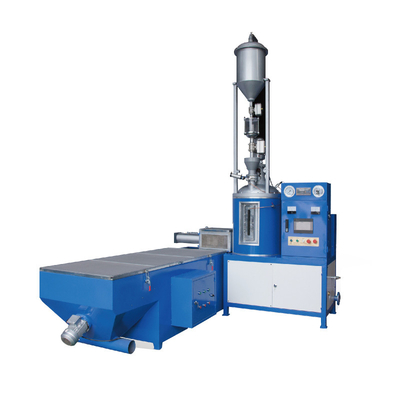

EPS Automatic Batch Lost-Foam Pre-Expander machine

Main features:

1. The intelligent control system is composed of PLC(Mitsubishi) and HMI(WEINVIEW).

2. When foaming ,normal pressure or pressurized foaming can be selected according to different requirements.

3. The machine has uniform foamed beads with error less than 2%.

4. The machine has the advantages of high cost performance ,safety,stability and convenient maintenance.



Item Unit PSPEB-50 PSPEB-60
Chamber Dimension mm 500 600
Steam Inlet mm DN25 DN2
Steam Pressure Mpa 0.4-0.8 0.4-0.8
Copressed Air Mpa 0.6-0.8 0.6-0.8
Desity g/L 10-70 10-70
Efficiency kg/h 30-100 45-150
Power Kw 9 9.3
Weight Kg 600 800







Automatic EPS Pre Expander Machine Batch 9kw-9.3kw 0

FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
