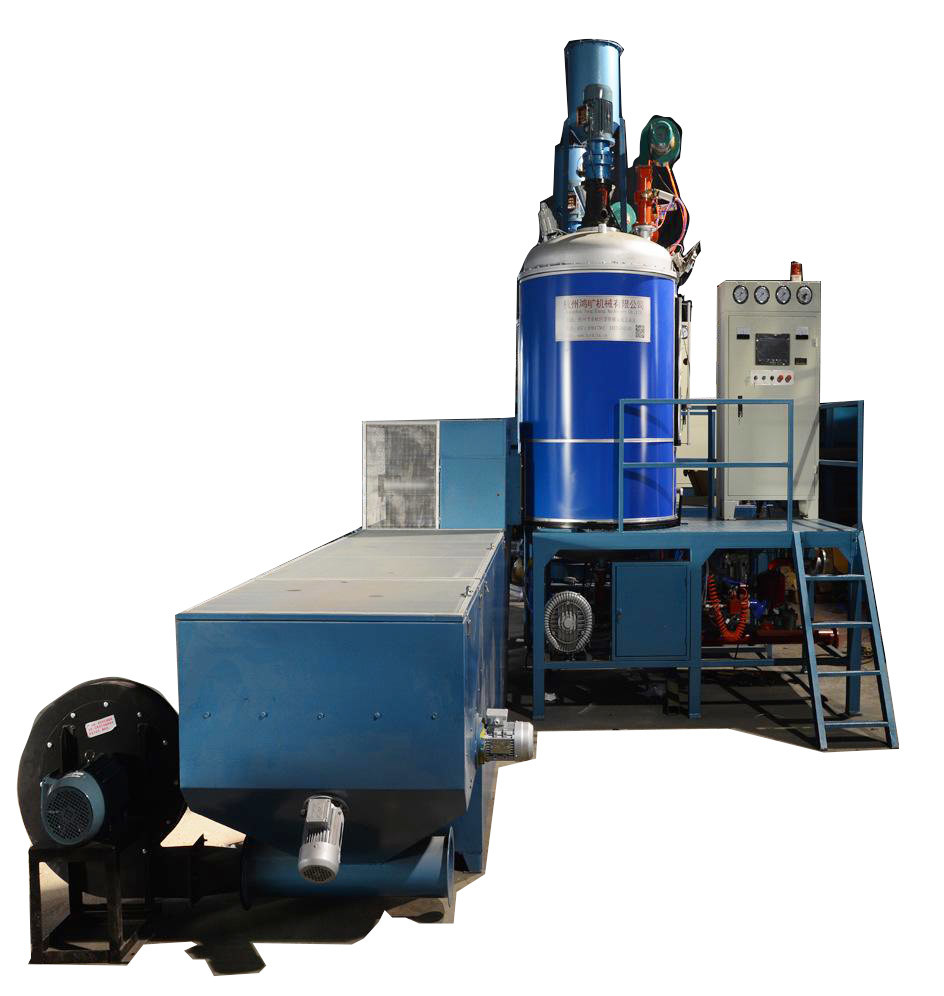

Typical Batch Pre Expander 25kw 12-30g/L 6500x4100x5400mm

Typical Batch Pre Expander 25kw 12-30g/L 6500x4100x5400mm
Features Gallery Product Description Request A Quote
Voltage: AC380V 50Hz
Installing Power: 25kw
Warranty Period: 1year
Origin: Zhejiang CHINA
Steam Consumption: 3-5 Kg/cycle
Compressed Air Consumption: 0.5-0.9 M³/cycle
Density: 12-30g/L
Overall Size (L*W*H): 6500X4100X5400mm
High Light:

25kw Batch Pre Expander


30g/L Batch Pre Expander


5400mm batch preexpander

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSPEB-N150
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

High Capacity Typical Batch Pre-expander machine

Main features :
The machine adopts Mitsubishi PLC and Taiwan HMI with atuo to filling material,auto electronic weighint,auto controlling chamber temperature ,
pressure and level testing to .
Steam system:

Steam pressure reducer and angle valve to contorl steam.
Fillng system:

Adopts electronic weighing system ,setting filling weight to HMI for material filling automatically .
Material level control:

Adopts laser sensor to control the expansion level.
Electronic control:

Mitsubishi PLC and Taiwan HMI,chneider components

Item Unit PSPEB-N150
Expansion Chamber Diameter mm 1500
Volume 3.2
Steam Inlet mm 50
Consumption kg/cycle 15-18
Pressure Mpa 0.6-0.8
Compressed air Inlet mm DN40
Consumption m³/cycle 0.5-0.6
Pressure Mpa 0.6-0.8
Drainage Blower outlet mm 100
The total emission mm 150
Connected load Installing power Kw 25
Density g/L 12-30
Overall size (LXWXH) mm 6500X4100X5400
Weight kg 5000
Room height required mm 6000
Productivity 12g/L kg/h 600
15g/L kg/h 900
20g/L kg/h 1200
30g/L kg/h 1500


Typical Batch Pre Expander 25kw 12-30g/L 6500x4100x5400mm 0Typical Batch Pre Expander 25kw 12-30g/L 6500x4100x5400mm 1

Typical Batch Pre Expander 25kw 12-30g/L 6500x4100x5400mm 2

1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.


2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied


3. Are you a trading company or a manufacturer?
We are manufacturer.


4. How long is your delivery time?
Normally delivery time is 30~45 days.


5. How many years have your company made this kind of equipment?
More than 10 years.


6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.


7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation


8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.


9. Can you can design the equipment according to our size?
Yes, it is acceptable


10. How many production lines in your factory?
We have total 10 production line.
