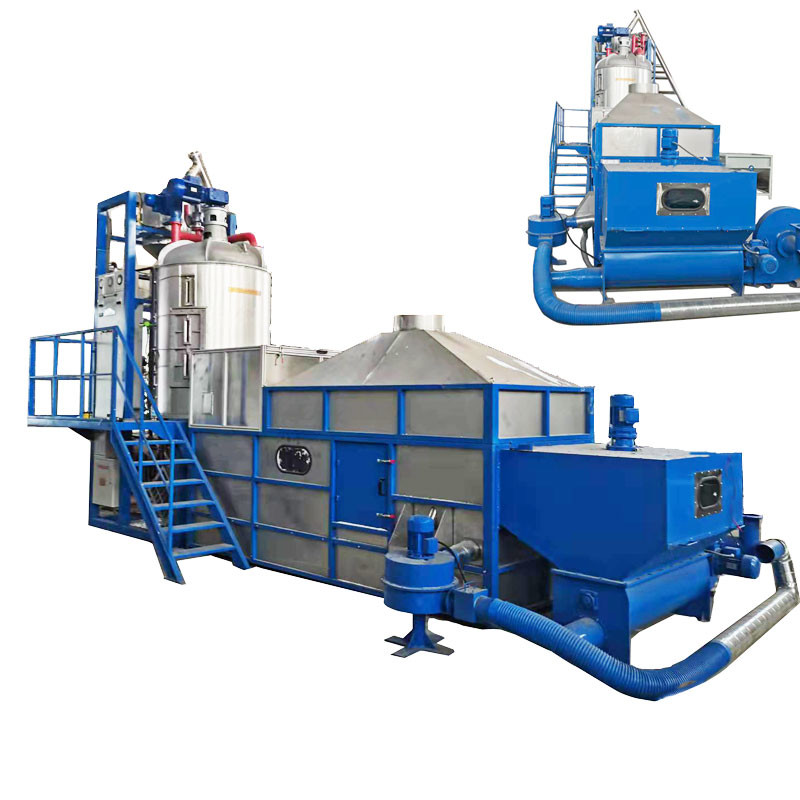

EPS Polystyrene foam beads making machine
Main features :
Material weight measure section takes special measuring controlling device and loading device ,they are controlled by PLC and HMI ,the amount can be controlled accurately .

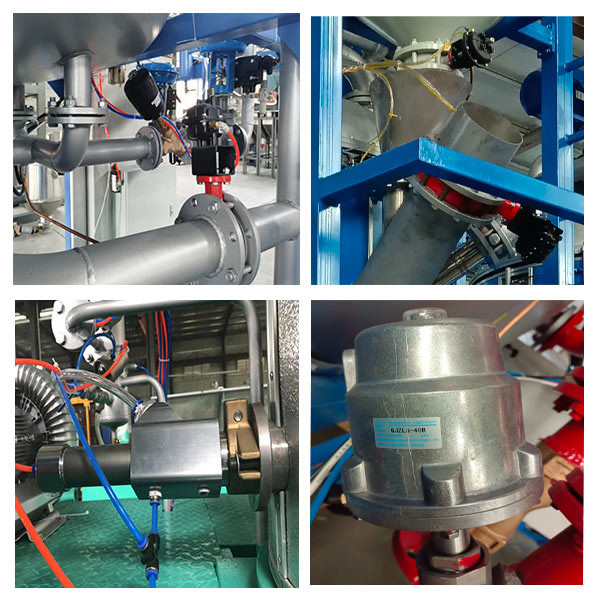

Steam system:
Accurate pressure reducer and PID control system (proprotional steam valve system)to keep very stable and accurate steam ,ensure material varia-tion.
Pressure control:
Pressure sensor with multi-steam exhausting system to keep expansion chamber pressure stable,as well as reduces the steam consumption.
Fillng system:
Set filling weight in HMI and electronic weighing filling to realize silling accurately and automatically .
Material level control:
Adopts laser sensor to control the expansion level.
Temperature control:
The temperature sensor and compressedair proprtional valve maintains accurate expansion temperature which is suitable for highdensity expansion ,resulting in less broken beads.
| Item | Unit | PSPEB-A130 | PSPEB-A150 | |
| Expansion Chamber | Diameter | mm | ∅1300 | ∅150 |
| Volume | m³ | 2.4 | 5.4 | |
| Useable volume | m³ | 1.6 | 4.5 | |
| Steam | Inlet | mm | ∅65 | ∅100 |
| Consumption | kg/cycle | 10-12 | 18-20 | |
| Compressed air | Consumption | m³/cycle | 0.7-0.9 | 0.5-0.8 |
| Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | |
| Drainage | Drainage port | mm | ∅100 | ∅150 |
| Condensation | mm | ∅100 | ∅50 | |
| Connected load | Installing power | Kw | 21 | 40 |
| Density | g/L | 12-30 | 12-30 | |
| Out side dimensions | % | ±2 | ±2 | |
| Material conveying | mm | ∅150 | ∅200 | |
| Overall size (LXWXH) | mm | 7400X3000X4500 | 11000X2850X6100 | |
| Weight | kg | 4250 | 8000 | |
| Room height required | mm | 6000 | 7000 | |
| Productivity | kg/h | 12g/L 530 | 12g/L 1000 | |
| kg/h | 15g/L 670 | 15g/L 1300 | ||
| kg/h | 20g/L 920 | 18g/L 1800 | ||
| kg/h | 30g/L 1220 | 25g/L 2400 | ||
FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.
2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied
3. Are you a trading company or a manufacturer?
We are manufacturer.
4. How long is your delivery time?
Normally delivery time is 30~45 days.
5. How many years have your company made this kind of equipment?
More than 10 years.
6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.
7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation
8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.
9. Can you can design the equipment according to our size?
Yes, it is acceptable
10. How many production lines in your factory?
We have total 10 production line.
