EPS Automatic High Efficiency Batch Pre Expander Foaming Machine With Energy Effcient110/150

1
MOQ
negotiation
Price
EPS Automatic High Efficiency Batch Pre Expander Foaming Machine With Energy Effcient110/150
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380V 50Hz
Power: 18kw,33kw
Warranty Period: 1year
Raw Material: EPS
Foaming Density: 4-30g
Room Height Required: 6000mm
High Light:

Batch EPS Pre Expander

,

18kw EPS Pre Expander

,

Automatic batch preexpander

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSPEBN-110/150
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Product Description

Latest Style Automatic Bath EPS Pre Expander

The biggest characteristic vulcanized drying bed is made of stainless steel welding, and its service life is much higher than that of ordinary models

Main features:
1. The appearance design is beautiful, the main structure is made of gb square steel, sandblasting, painting and durable after welding.
2. The drying bed can be made of 304 stainless steel according to customer requirements to improve the corrosion resistance of the equipment.
3. The control system is closed loop controlled by Mitsubishi FX5U series PLC, which is accurate and stable.
4. Angle seat valve adopts MSG brand, pneumatic proportional valve adopts SMC brand, which can accurately control the flow of steam.



Item Unit PSPEB-N150 PSPEB-N110
Expansion Chamber Diameter mm 1500 1100
Height mm 2200 1500
Volume 3.8 1.4
Steam Inlet mm DN50 DN50
Consumption kg/cycle 13-16 8-11
Pressure Mpa 0.6-0.8 0.6-0.8
Compressed air Inlet mm 50 40
Consumption m³/cycle 0.5-0.6 0.5-0.6
Pressure Mpa 0.6-0.8 0.6-0.8
Drainage Drainage outlet mm DN100 DN80
Blower outlet mm 100 80
Connected load Installing power Kw 33 18
Density g/L 4-30 10-30
Overall size (LXWXH) mm 7400X4400X5400 6800X3200X4600
Weight kg 4500 3500
Room height required mm 6000 6000
Productivity 4g/L kg/h 180 /
10g/L kg/h 400 200
12g/L kg/h 600 240
15g/L kg/h 900 320
Weight Tolerance     ±5% ±3%

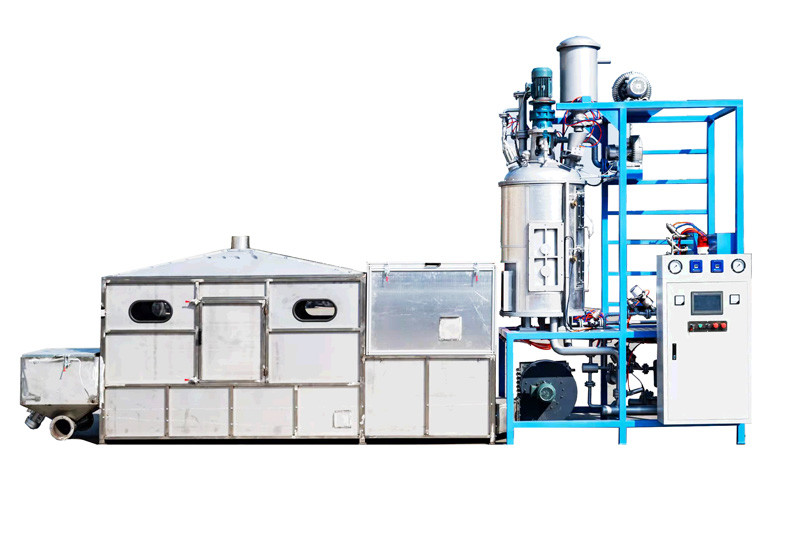

EPS Automatic High Efficiency Batch Pre Expander Foaming Machine With Energy Effcient110/150 0

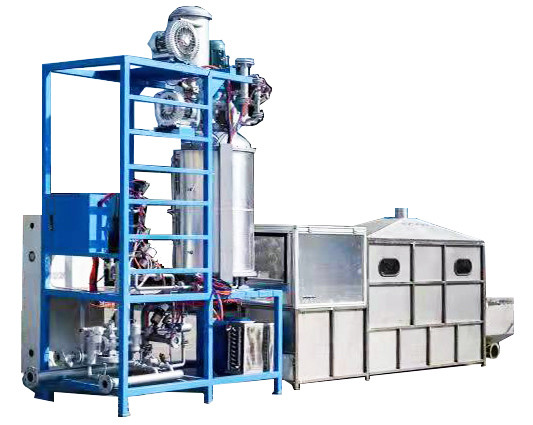

EPS Automatic High Efficiency Batch Pre Expander Foaming Machine With Energy Effcient110/150 1

FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
