PLC Square Steel EPS Expander Machine 380V 50Hz

1
MOQ
negotiation
Price
PLC Square Steel EPS Expander Machine 380V 50Hz
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380V 50Hz
Power: 18kw,33kw
Warranty Period: 1year
Raw Material: EPS
Foaming Density: 4-30g
Room Height Required: 6000mm
High Light:

EPS Expander Machine 18kw

,

Square Steel EPS Expander Machine

,

PLC EPS Pre Expander

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSPEBN-110/150
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Product Description

eps expander machine

The biggest characteristic vulcanized drying bed is made of stainless steel welding, and its service life is much higher than that of ordinary models

Main features:
1. The appearance design is beautiful, the main structure is made of gb square steel, sandblasting, painting and durable after welding.
2. The drying bed can be made of 304 stainless steel according to customer requirements to improve the corrosion resistance of the equipment.
3. The control system is closed loop controlled by Mitsubishi FX5U series PLC, which is accurate and stable.
4. Angle seat valve adopts MSG brand, pneumatic proportional valve adopts SMC brand, which can accurately control the flow of steam.



Item Unit PSPEB-N150 PSPEB-N110
Expansion Chamber Diameter mm 1500 1100
Height mm 2200 1500
Volume 3.8 1.4
Steam Inlet mm DN50 DN50
Consumption kg/cycle 13-16 8-11
Pressure Mpa 0.6-0.8 0.6-0.8
Compressed air Inlet mm 50 40
Consumption m³/cycle 0.5-0.6 0.5-0.6
Pressure Mpa 0.6-0.8 0.6-0.8
Drainage Drainage outlet mm DN100 DN80
Blower outlet mm 100 80
Connected load Installing power Kw 33 18
Density g/L 4-30 10-30
Overall size (LXWXH) mm 7400X4400X5400 6800X3200X4600
Weight kg 4500 3500
Room height required mm 6000 6000
Productivity 4g/L kg/h 180 /
10g/L kg/h 400 200
12g/L kg/h 600 240
15g/L kg/h 900 320
Weight Tolerance     ±5% ±3%

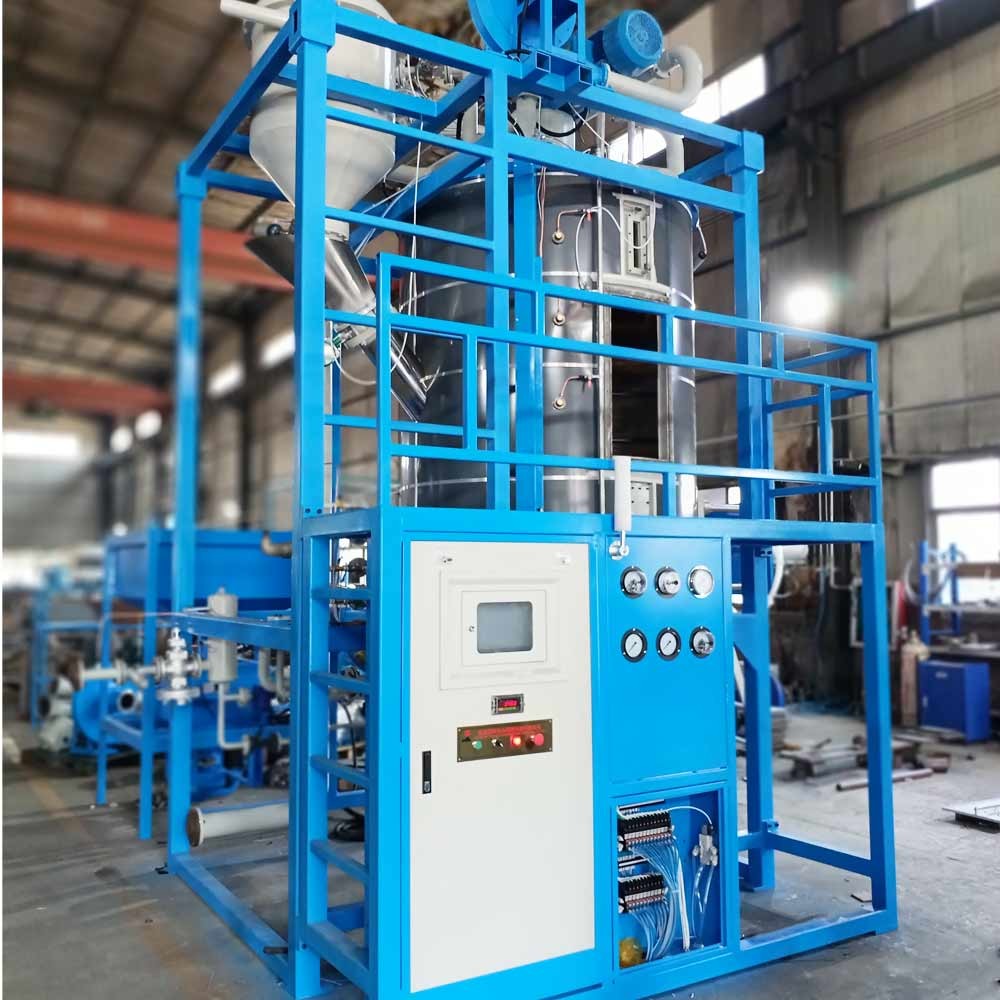

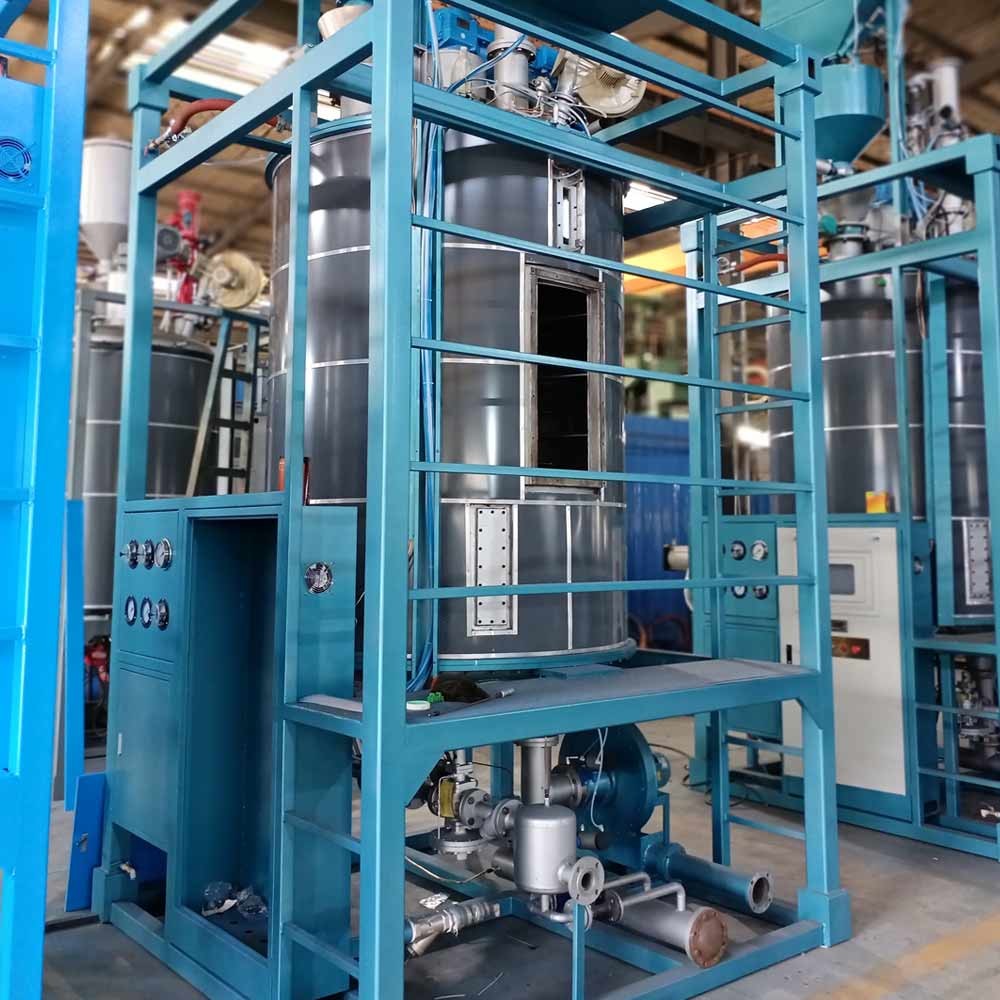

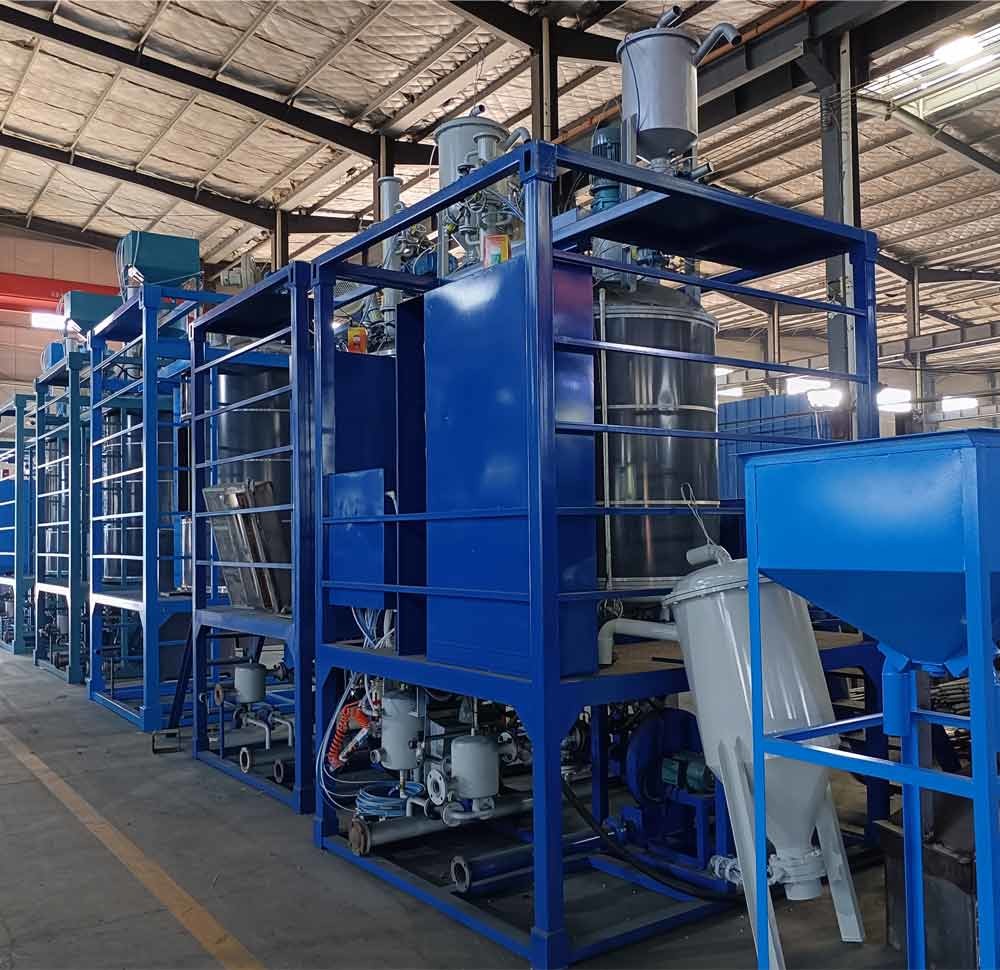

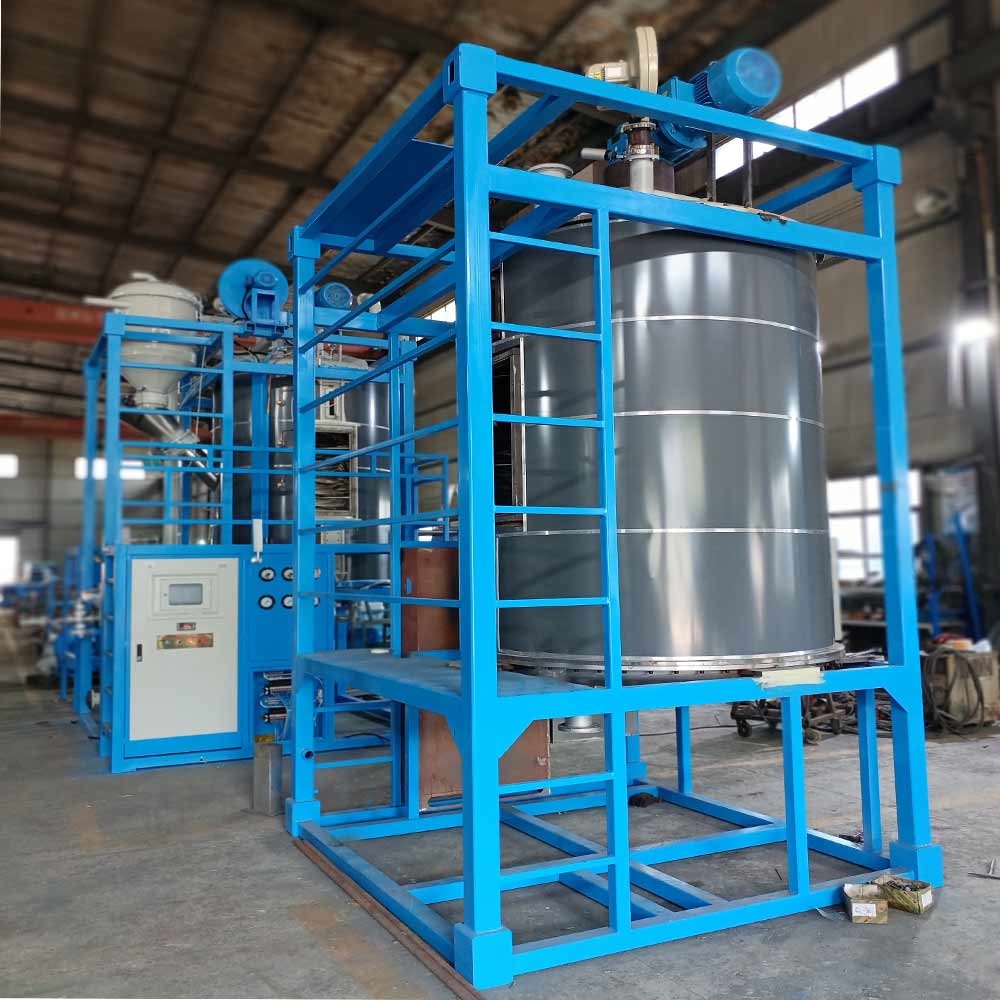

PLC Square Steel EPS Expander Machine 380V 50Hz 0PLC Square Steel EPS Expander Machine 380V 50Hz 1PLC Square Steel EPS Expander Machine 380V 50Hz 2PLC Square Steel EPS Expander Machine 380V 50Hz 3
