Home /Products/EPS Pre Expander/Save Energy EPS Pre Expander With Advanced Expansion And Density Control Bread 0.35~3.5mm

Save Energy EPS Pre Expander With Advanced Expansion And Density Control Bread 0.35~3.5mm

1
MOQ
negotiation
Price

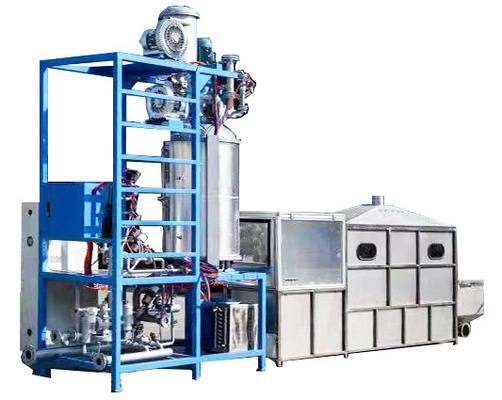

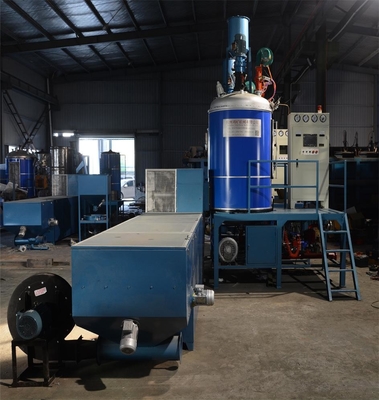

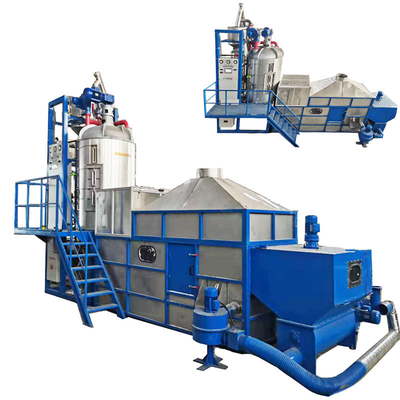

Save Energy EPS Pre Expander With Advanced Expansion And Density Control Bread 0.35~3.5mm
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: AC380V 50Hz
Process Monitoring: High
Port: SHANGHAI/NINGBO
Expansion Chamber Diameter: 1200 Mm
Warranty: 1 Year
Overall Dimensions: 4590x4500x3300 Mm
Material: Stainless Steel
Highlight:

Density Control EPS Pre Expander

,

Advanced Expansion EPS Pre Expander

,

3.5mm EPS Pre Expander
Basic Infomation
Place of Origin: Zhejiang China
Brand Name: PINSHENG
Model Number: PSSM 200F
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description
Hopper: EPS beads, which are small polystyrene pellets, are loaded into a hopper located at the top of the machine. The hopper feeds the beads into the subsequent stages of the process.
Pre-Expanding Chamber: The EPS beads are transferred from the hopper to the pre-expanding chamber. In this chamber, the beads are exposed to steam and heat, causing them to expand. The steam penetrates the beads, softening the polystyrene and vaporizing the pentane gas inside, creating a cellular structure within the material.
Expansion Control: EPS expander machines are equipped with controls to regulate the steam flow, temperature, and expansion time. These controls allow the operator to achieve consistent expansion and control the density and size of the expanded beads.
Aging Silo: After pre-expansion, the expanded beads are transferred to an aging silo or chamber. This silo allows the beads to cool and stabilize, reducing their moisture content and ensuring uniform expansion. The aging process helps optimize the properties of the expanded beads for further processing.

Save Energy EPS Pre Expander With Advanced Expansion And Density Control Bread 0.35~3.5mm 0Save Energy EPS Pre Expander With Advanced Expansion And Density Control Bread 0.35~3.5mm 1Save Energy EPS Pre Expander With Advanced Expansion And Density Control Bread 0.35~3.5mm 2Save Energy EPS Pre Expander With Advanced Expansion And Density Control Bread 0.35~3.5mm 3Save Energy EPS Pre Expander With Advanced Expansion And Density Control Bread 0.35~3.5mm 4


Tag:

Batch EPS Pre Expander

21kw batch pre expander

18kw EPS Pre Expander
