Home /Products/EPS Pre Expander/Complete Turnkey Projects EPS Pre Expander Machine / EPS Foam Expansion Machine

Complete Turnkey Projects EPS Pre Expander Machine / EPS Foam Expansion Machine

1
MOQ
negotiation
Price
Complete Turnkey Projects EPS Pre Expander Machine / EPS Foam Expansion Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: AC380V 50Hz
Process Monitoring: High
Port: SHANGHAI/NINGBO
Expansion Chamber Diameter: 1200 Mm
Warranty: 1 Year
Overall Dimensions: 4570x4500x3330 Mm
Material: Stainless Steel
Highlight:

Complete EPS Foam Expansion Machine

,

Turnkey Projects EPS Pre Expander Machine
Basic Infomation
Place of Origin: Zhejiang China
Brand Name: PINSHENG
Model Number: PSSM 200F
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

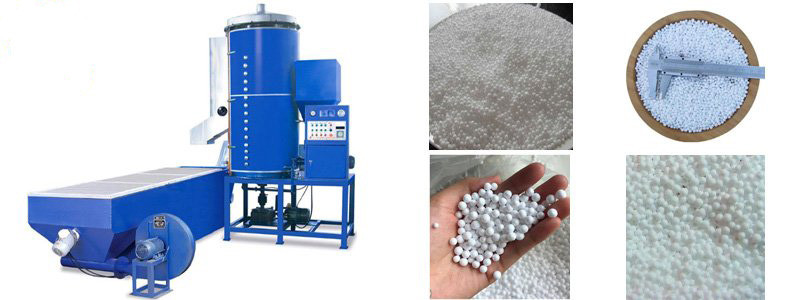

Hopper: EPS beads, which are small polystyrene pellets, are loaded into a hopper located at the top of the machine.
Pre-Expanding Chamber: The EPS beads are transferred from the hopper to the pre-expanding chamber. In this chamber, the beads are exposed to steam and heat, causing them to expand. The steam penetrates the beads, softening the polystyrene and vaporizing the pentane gas inside, creating a cellular structure within the material.
Expansion Control: EPS expander machines are equipped with controls to regulate the steam flow, temperature, and expansion time. These controls allow the operator to achieve consistent expansion and control the density and size of the expanded beads.
Aging Silo: After pre-expansion, the expanded beads are transferred to an aging silo or chamber. This silo allows the beads to cool and stabilize, reducing their moisture content and ensuring uniform expansion.
Drying (Optional): Depending on the specific requirements and applications, some EPS expander machines may include a drying stage to remove any remaining moisture from the expanded beads.
Discharge: Once the expanded beads have gone through the pre-expansion and aging processes, they are discharged from the machine.

Complete Turnkey Projects EPS Pre Expander Machine / EPS Foam Expansion Machine 0Complete Turnkey Projects EPS Pre Expander Machine / EPS Foam Expansion Machine 1Complete Turnkey Projects EPS Pre Expander Machine / EPS Foam Expansion Machine 2Complete Turnkey Projects EPS Pre Expander Machine / EPS Foam Expansion Machine 3Complete Turnkey Projects EPS Pre Expander Machine / EPS Foam Expansion Machine 4


Tag:

Batch EPS Pre Expander

21kw batch pre expander

18kw EPS Pre Expander
