Name: Safe Environment EPS Pre Expander Machine For Expanded Polystyrene Foam Production
Brand: NINGBO PINSHENG MACHINERY CO.,LTD
SKU: PSSM 200F
Price: 39,500.00 USD
Availability: InStock

Safe Environment EPS Pre Expander Machine For Expanded Polystyrene Foam Production

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Voltage: AC380V 50Hz

Process Monitoring: High

Port: SHANGHAI/NINGBO

Warranty: 1 Year

Overall Dimensions: 4490x4910x3510 Mm

Material: Stainless Steel

Weight: 3510

Highlight:

Polystyrene Foam EPS Pre Expander Machine

Safe Environment EPS Pre Expander Machine

Basic Infomation

Place of Origin: Zhejiang China

Brand Name: PINSHENG

Model Number: PSSM 200F

Payment & Shipping Terms

Delivery Time: 6-10days

Payment Terms: T/T LC

Supply Ability: 10pcs per month

Gallery

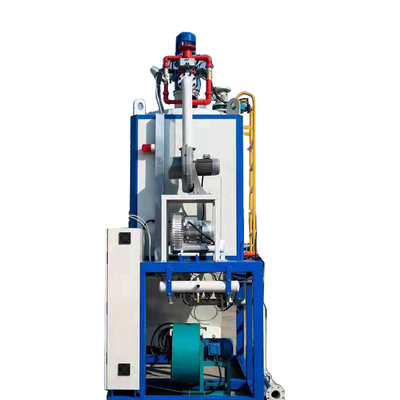

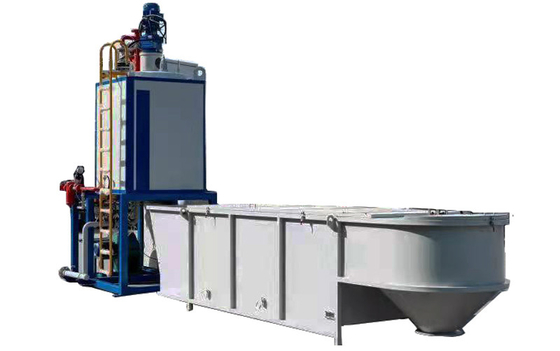

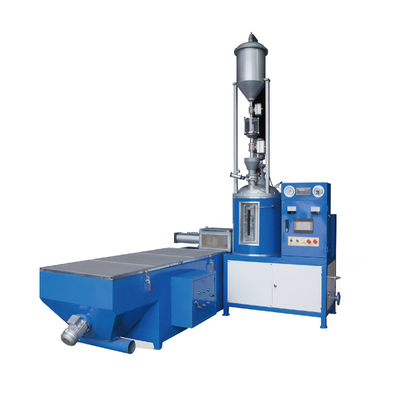

Safe Environment EPS Pre Expander Machine For Expanded Polystyrene Foam Production

Product Description

The EPS (Expanded Polystyrene) pre-expander machine is a device used in the manufacturing process of expanded polystyrene foam products.

Hopper: The machine has a hopper where the raw polystyrene beads are loaded.

Pre-expanding chamber: The pre-expanding chamber is the main part of the machine where the actual expansion process takes place. The chamber is typically cylindrical and equipped with steam injection outlets. The polystyrene beads are introduced into the chamber, and steam is injected to heat and expand the beads.

Steam injection system: The pre-expander machine is equipped with a steam injection system that supplies steam into the pre-expanding chamber. The steam softens the polystyrene beads, causing them to expand.

Agitation system: Inside the pre-expanding chamber, there is an agitation system that ensures uniform heating and expansion of the beads. It usually consists of rotating arms or paddles that stir the beads while they are being exposed to steam.

Exhaust system: The pre-expander machine has an exhaust system to remove the steam and any volatile gases released during the expansion process. This system helps maintain a controlled and safe environment within the machine.

Control panel: The machine features a control panel that allows operators to monitor and adjust various parameters such as steam pressure, temperature, and expansion time. This ensures precise control over the expansion process and the quality of the expanded foam.

The EPS pre-expander machine is available in different sizes and capacities to accommodate various production requirements. Larger machines can handle higher volumes of beads and offer greater expansion capabilities.

The pre-expanded beads produced by the machine are then transferred to a molding machine, where they are further processed into specific shapes such as blocks, sheets, or custom-molded products.

Safe Environment EPS Pre Expander Machine For Expanded Polystyrene Foam Production 0
