Safe Environment Polystyrene Expansion Beads Making Machine

1
MOQ
negotiation
Price
Safe Environment Polystyrene Expansion Beads Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: AC380V 50Hz
Process Monitoring: High
Port: SHANGHAI/NINGBO
Warranty: 1 Year
Overall Dimensions: 4490x4890x3530 Mm
Material: Stainless Steel
Weight: 3510
Highlight:

Polystyrene Expansion Beads Making Machine

,

Safe Environment eps pre expander
Basic Infomation
Place of Origin: Zhejiang China
Brand Name: PINSHENG
Model Number: PSSM 200F
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description
The EPS (Expanded Polystyrene) pre-expander machine is a device used in the manufacturing process of expanded polystyrene foam products.

Hopper: The machine has a hopper where the raw polystyrene beads are loaded.
Pre-expanding chamber: The pre-expanding chamber is the main part of the machine where the actual expansion process takes place. The chamber is typically cylindrical and equipped with steam injection outlets. The polystyrene beads are introduced into the chamber, and steam is injected to heat and expand the beads.
Steam injection system: The pre-expander machine is equipped with a steam injection system that supplies steam into the pre-expanding chamber. The steam softens the polystyrene beads, causing them to expand.
Agitation system: Inside the pre-expanding chamber, there is an agitation system that ensures uniform heating and expansion of the beads. It usually consists of rotating arms or paddles that stir the beads while they are being exposed to steam.
Exhaust system: The pre-expander machine has an exhaust system to remove the steam and any volatile gases released during the expansion process. This system helps maintain a controlled and safe environment within the machine.
Control panel: The machine features a control panel that allows operators to monitor and adjust various parameters such as steam pressure, temperature, and expansion time. This ensures precise control over the expansion process and the quality of the expanded foam.
The EPS pre-expander machine is available in different sizes and capacities to accommodate various production requirements.

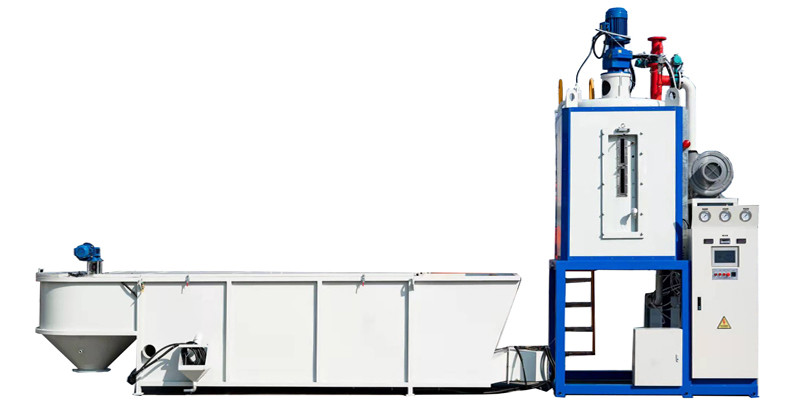

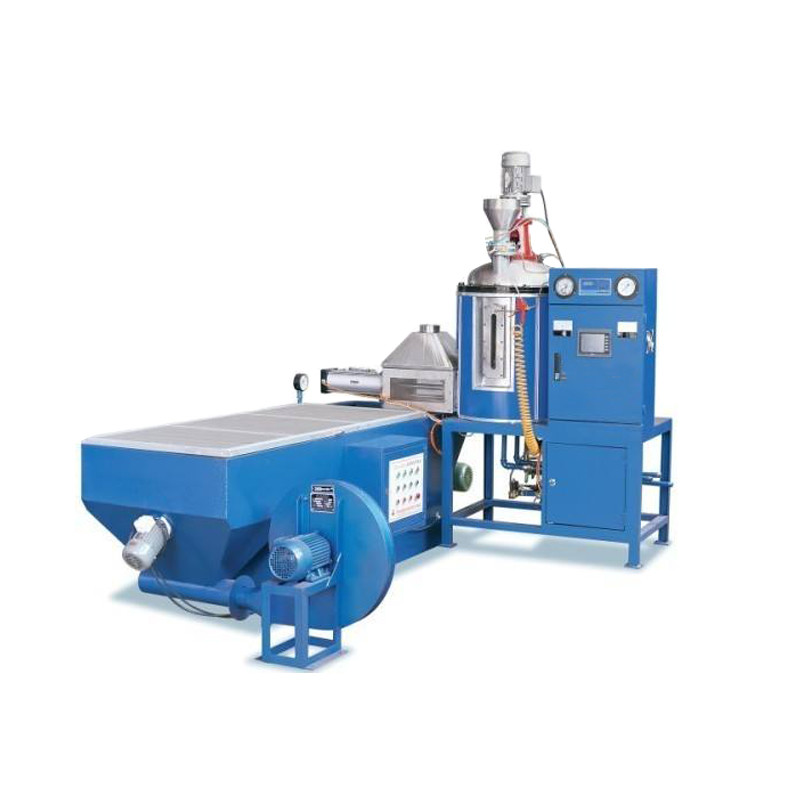

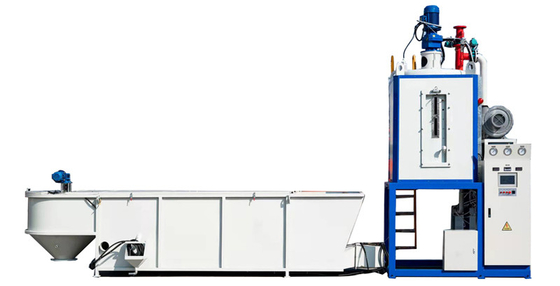

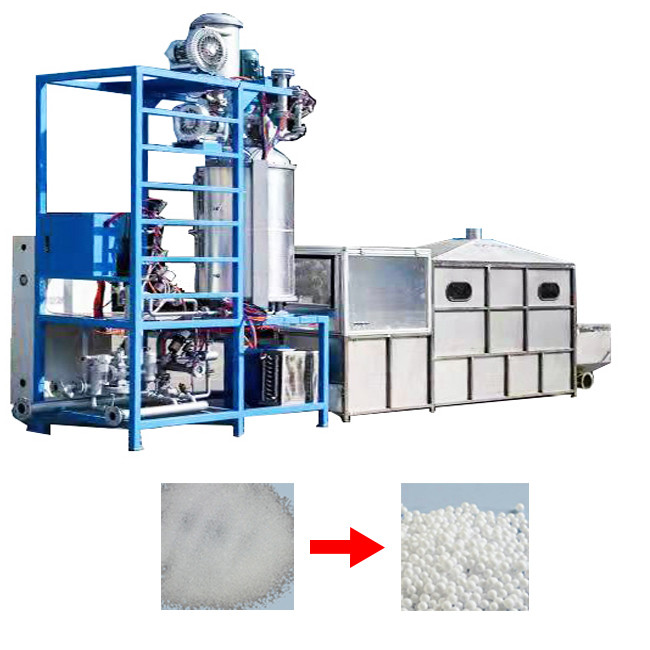

Safe Environment Polystyrene Expansion Beads Making Machine 0Safe Environment Polystyrene Expansion Beads Making Machine 1Safe Environment Polystyrene Expansion Beads Making Machine 2Safe Environment Polystyrene Expansion Beads Making Machine 3Safe Environment Polystyrene Expansion Beads Making Machine 4


Tag:

Batch EPS Pre Expander

21kw batch pre expander

18kw EPS Pre Expander
