Home /Products/EPS Pre Expander/EPS Pre Expander Machine For Expanded Polystyrene Foam Products

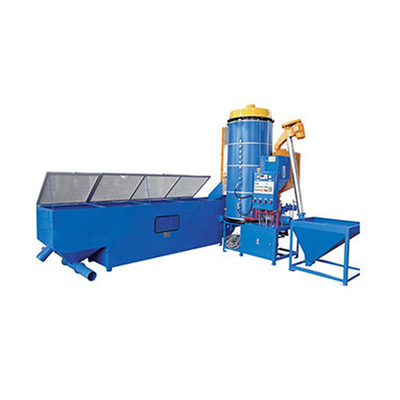

EPS Pre Expander Machine For Expanded Polystyrene Foam Products

1
MOQ
negotiation
Price
EPS Pre Expander Machine For Expanded Polystyrene Foam Products
Features Gallery Product Description Request A Quote
Features
Specifications
Expansion Chamber Diameter: 1200mm
Expansion Chamber Volume: 2.2m3
Port: SHANGHAI/NINGBO
Warranty: 1 Year
Overall Dimensions: 4900x4700x3200 Mm
Weight: 1800
Drainage: 20mm
Highlight:

Polystyrene Foam EPS Pre Expander

,

EPS Pre Expander Machine

,

Expanded Polystyrene Foam EPS Pre Expander
Basic Infomation
Place of Origin: Zhejiang China
Brand Name: PINSHENG
Model Number: PSPEC120
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description
The EPS (Expanded Polystyrene) pre-expander machine is a device used in the manufacturing process of expanded polystyrene foam products.


Main features:

a. All processes including filling, expanding sieving, de-lumping and conveying work automatically

b. With primary and secondary expansion device to get density of 8-30g/L

c. First filing is controlled by frequency converter

d. Stainless steel dryer bed.

e. Power-off protection device

f. Japan steam pressure reducing valve.

Note:

As for economical type, above item 3,4,5,6will be exclusive



Item Unit PSPEC90 PSPEC120
Expansion Chamber Diameter mm Ф900 Ф1200
Volume m3 1.2 2.2
Useable volume m3 0.8 1.5
Steam Inlet mm Ф25 Ф40
Consumption Kg/cycle 100-150 150-200
Pressure Mpa 0.6-0.8 0.6-0.8
Compressed air Inlet mm Ф25 Ф25
Pressure Mpa 0.6-0.8 0.6-0.8
Drainage Condensation mm Ф20 Ф20
Connected load Instaling power Kw 10 15
Density First expansion g/L 12-30 14-30
Second expansion g/L 8-11 8-13
Overall size (LXWXH) mm 4700X3000X3200 4900X4700X3200
Weight kg 1500 1800
Room height required mm 5000 5000
Productivity 15g/L kg/h 150 250
20g/L kg/h 200 300
25g/L kg/h 250 410
30g/L kg/h 300 500

EPS Pre Expander Machine For Expanded Polystyrene Foam Products 0EPS Pre Expander Machine For Expanded Polystyrene Foam Products 1EPS Pre Expander Machine For Expanded Polystyrene Foam Products 2EPS Pre Expander Machine For Expanded Polystyrene Foam Products 3EPS Pre Expander Machine For Expanded Polystyrene Foam Products 4


Tag:

Batch EPS Pre Expander

21kw batch pre expander

18kw EPS Pre Expander
