Name: Polystyrene EPS Expander Produces Polystyrene Foam Pellets And EPS Raw Material Foaming
Brand: NINGBO PINSHENG MACHINERY CO.,LTD
SKU: PSPEC90/120
Price: 39,500.00 USD
Availability: InStock

Polystyrene EPS Expander Produces Polystyrene Foam Pellets And EPS Raw Material Foaming

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Expansion Chamber Diameter: 1200mm

Expansion Chamber Volume: 2.2m3

Port: SHANGHAI/NINGBO

Warranty: 1 Year

Overall Dimensions: 4900x4700x3200 Mm

Weight: 1800

Highlight:

Polystyrene Foam Pellets Expander

Polystyrene EPS Expander

EPS Raw Material Expander

Basic Infomation

Place of Origin: Zhejiang China

Brand Name: PINSHENG

Model Number: PSPEC90/120

Payment & Shipping Terms

Delivery Time: 6-10days

Payment Terms: T/T LC

Supply Ability: 10pcs per month

Gallery

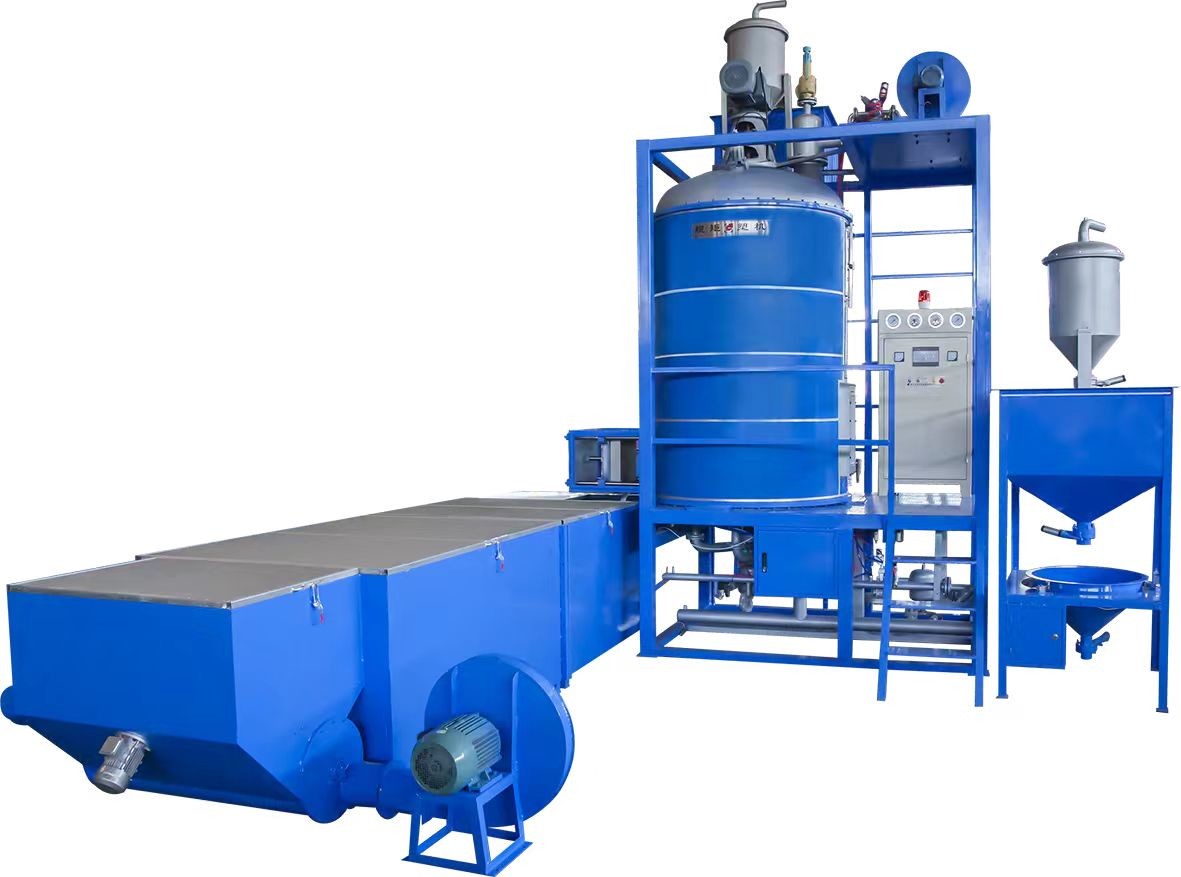

Polystyrene EPS Expander Produces Polystyrene Foam Pellets And EPS Raw Material Foaming

Product Description

The EPS (Expanded Polystyrene) pre-expander machine is a device used in the manufacturing process of expanded polystyrene foam products.

Main features:

a. All processes including filling, expanding sieving, de-lumping and conveying work automatically

b. With primary and secondary expansion device to get density of 8-30g/L

c. First filing is controlled by frequency converter

d. Stainless steel dryer bed.

e. Power-off protection device

f. Japan steam pressure reducing valve.

Note:

As for economical type, above item 3,4,5,6will be exclusive

Main features:

1.The chamber surface is made by stainless steel with good shape and long life

2.The fluidized Bed Drier can be bought by customer solely.

3.The twice pre-explander can pre-expand once or twice to enable the EPS density to be ideal state.

Item		Unit	PSPEC90	PSPEC120
Expansion Chamber	Diameter	mm	Ф900	Ф1200
	Volume	m3	1.2	2.2
	Useable volume	m3	0.8	1.5
Steam	Inlet	mm	Ф25	Ф40
	Consumption	Kg/cycle	100-150	150-200
	Pressure	Mpa	0.6-0.8	0.6-0.8
Compressed air	Inlet	mm	Ф25	Ф25
Compressed air	Pressure	Mpa	0.6-0.8	0.6-0.8
Drainage	Condensation	mm	Ф20	Ф20
Connected load	Instaling power	Kw	10	15
Density	First expansion	g/L	12-30	14-30
Density	Second expansion	g/L	8-11	8-13
Overall size (LXWXH)		mm	4700X3000X3200	4900X4700X3200
Weight		kg	1500	1800
Room height required		mm	5000	5000
Productivity	15g/L	kg/h	150	250
	20g/L	kg/h	200	300
	25g/L	kg/h	250	410
	30g/L	kg/h	300	500
