Name: Automatic Efficiency EPS Pre Expander Foam Panel Production Line
Brand: NINGBO PINSHENG MACHINERY CO.,LTD
SKU: PSPEC90/120
Price: 39,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Expansion Chamber Diameter: 1200mm

Expansion Chamber Volume: 2.2m3

Port: SHANGHAI/NINGBO

Warranty: 1 Year

Overall Dimensions: 4900x4700x3200 Mm

Weight: 1800

Transport Package: Standard Export Package

Raw Material: EPS

Type: Automatic

Material: Stainless Steel

Highlight:

Automatic Efficiency EPS Pre Expander

Automatic EPS Pre Expander

EPS Preexpander Foam Panel Production Line

Basic Infomation

Place of Origin: Zhejiang China

Brand Name: PINSHENG

Model Number: PSPEC90/120

Payment & Shipping Terms

Delivery Time: 6-10days

Payment Terms: T/T LC

Supply Ability: 10pcs per month

Gallery

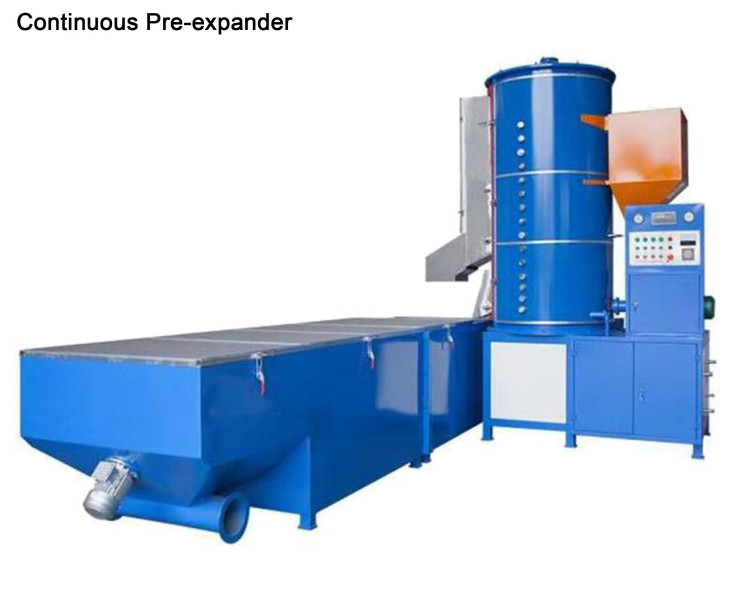

Automatic Efficiency EPS Pre Expander Foam Panel Production Line

Product Description

Expanded Polystyrene EPS Pre Expander Sandwich Foam Panel Production Line.

Key Features of EPS Pre Expanders:

Functionality: The machine heats polystyrene beads, causing them to expand. This process can involve multiple stages to achieve the desired density and expansion ratio.

Steam and Temperature Control: Precise control of steam pressure and temperature is crucial for consistent expansion and quality of the final product.

Production Efficiency: Modern EPS pre-expanders are designed for high efficiency, allowing for continuous operation and rapid production cycles.

Versatility: They can produce various densities of EPS, catering to different industrial needs.

Environmental Considerations: Some models are designed to minimize energy consumption and reduce emissions, aligning with sustainability goals.

Applications:

Insulation Products: Producing expanded beads used in insulation panels.
Packaging: Creating cushioning materials for fragile items.
Construction: Making lightweight blocks and panels for building projects.

Benefits:

Efficiency: Increases production efficiency by preparing beads for quick and effective moulding.
Quality Control: Ensures uniformity in bead size and density, which is crucial for the final product quality.

Item		Unit	PSPEC90	PSPEC120
Expansion Chamber	Diameter	mm	Ф900	Ф1200
	Volume	m3	1.2	2.2
	Useable volume	m3	0.8	1.5
Steam	Inlet	mm	Ф25	Ф40
	Consumption	Kg/cycle	100-150	150-200
	Pressure	Mpa	0.6-0.8	0.6-0.8
Compressed air	Inlet	mm	Ф25	Ф25
Compressed air	Pressure	Mpa	0.6-0.8	0.6-0.8
Drainage	Condensation	mm	Ф20	Ф20
Connected load	Instaling power	Kw	10	15
Density	First expansion	g/L	12-30	14-30
Density	Second expansion	g/L	8-11	8-13
Overall size (LXWXH)		mm	4700X3000X3200	4900X4700X3200
Weight		kg	1500	1800
Room height required		mm	5000	5000
Productivity	15g/L	kg/h	150	250
	20g/L	kg/h	200	300
	25g/L	kg/h	250	410
	30g/L	kg/h	300	500
