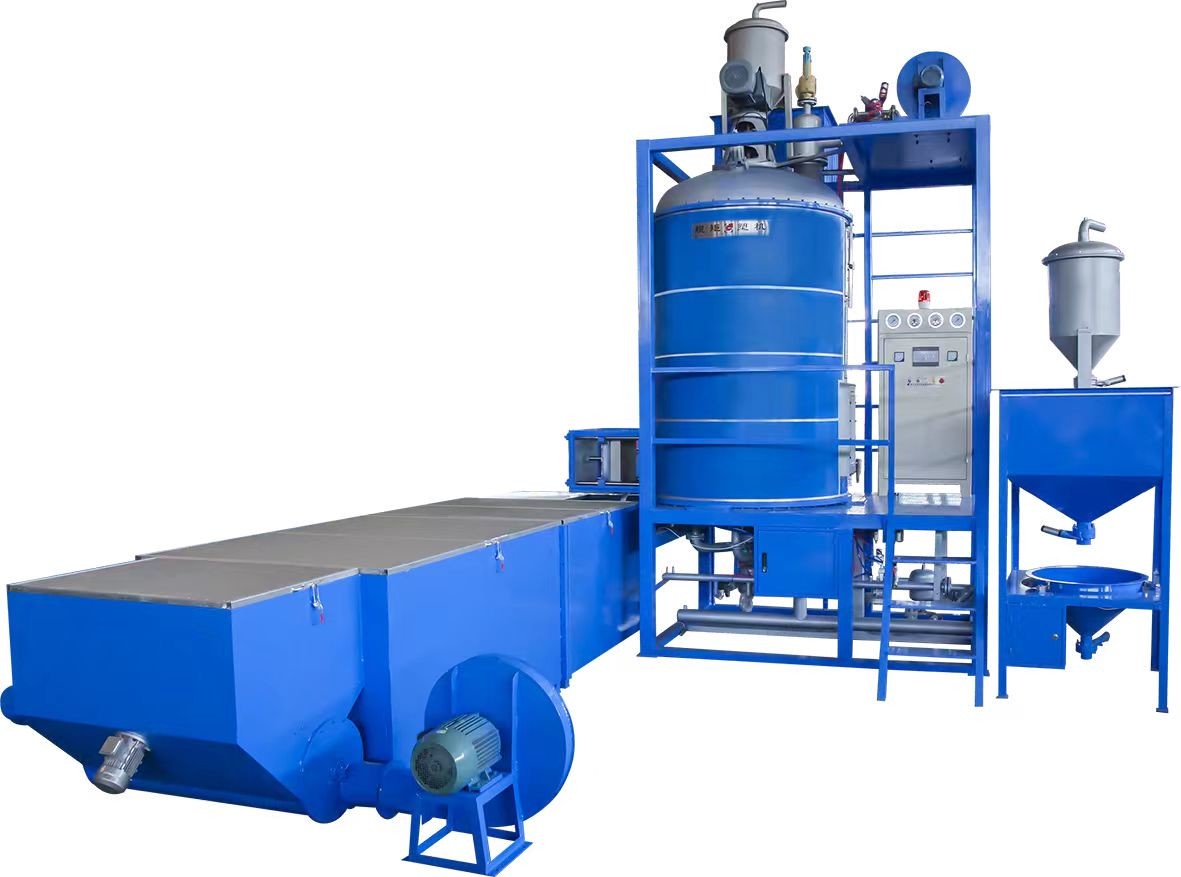

Feeding System: Automatically feeds raw polystyrene beads into the pre-expander.
Heating System: Uses steam or hot air to heat the beads, causing them to expand. This is a critical step that facilitates the expansion process.
Expansion Chamber: The main body where the beads are heated and expanded. The chamber is designed to maintain the right pressure and temperature levels for effective expansion.
Cooling System: After expansion, the beads need to cool down to ensure they retain their expanded shape.
Control Panel: Automated controls regulate the temperature, pressure, and timing of the expansion process for precision and efficiency.
The expanded EPS beads produced by the pre-expander can be used in a variety of applications, including:
Item | Unit | PSPEC90 | PSPEC120 | |
Expansion Chamber | Diameter | mm | Ф900 | Ф1200 |
Volume | m3 | 1.2 | 2.2 | |
Useable volume | m3 | 0.8 | 1.5 | |
Steam | Inlet | mm | Ф25 | Ф40 |
Consumption | Kg/cycle | 100-150 | 150-200 | |
Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | |
Compressed air | Inlet | mm | Ф25 | Ф25 |
Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | |
Drainage | Condensation | mm | Ф20 | Ф20 |
Connected load | Instaling power | Kw | 10 | 15 |
Density | First expansion | g/L | 12-30 | 14-30 |
Second expansion | g/L | 8-11 | 8-13 | |
Overall size (LXWXH) | mm | 4700X3000X3200 | 4900X4700X3200 | |
Weight | kg | 1500 | 1800 | |
Room height required | mm | 5000 | 5000 | |
Productivity | 15g/L | kg/h | 150 | 250 |
20g/L | kg/h | 200 | 300 | |
25g/L | kg/h | 250 | 410 | |
30g/L | kg/h | 300 | 500 |
