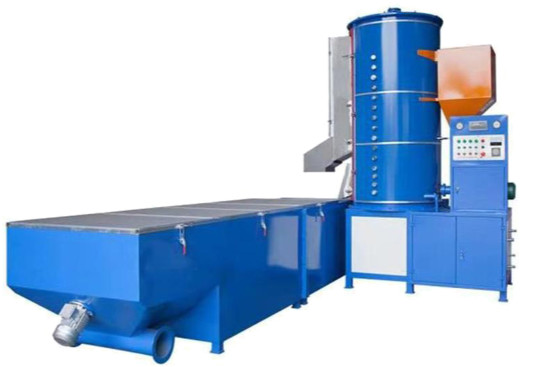

Name: EPS Pre Expander Machine For Expandable Polystyrene Beads Production System
Brand: NINGBO PINSHENG MACHINERY CO.,LTD
SKU: PSPEC90/120
Price: 39,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Expansion Chamber Diameter: 1200mm

Expansion Chamber Volume: 2.2m3

Port: SHANGHAI/NINGBO

Warranty: 1 Year

Overall Dimensions: 4900x4700x3200 Mm

Weight: 1800

Transport Package: Standard Export Package

Raw Material: EPS

Type: Automatic

Material: Stainless Steel

Highlight:

EPS Pre-Expander Machine System

EPS Pre-Expander Machine

Expandable Polystyrene Beads Production System

Basic Infomation

Place of Origin: Zhejiang China

Brand Name: PINSHENG

Model Number: PSPEC90/120

Payment & Shipping Terms

Delivery Time: 6-10days

Payment Terms: T/T LC

Supply Ability: 10pcs per month

Gallery

EPS Pre Expander Machine For Expandable Polystyrene Beads Production System

Product Description

Small Size Bead Foam Eps Pre expander Expandable Making Machine Box Wall Insulation.

Key Features of EPS Pre Expanders:

Functionality: The machine heats polystyrene beads, causing them to expand. This process can involve multiple stages to achieve the desired density and expansion ratio.

Steam and Temperature Control: Precise control of steam pressure and temperature is crucial for consistent expansion and quality of the final product.

Production Efficiency: Modern EPS pre-expanders are designed for high efficiency, allowing for continuous operation and rapid production cycles.

Versatility: They can produce various densities of EPS, catering to different industrial needs.

Environmental Considerations: Some models are designed to minimize energy consumption and reduce emissions, aligning with sustainability goals.

Applications:

Packaging field: It can be made into packaging boxes and packaging pads of various shapes, which are used to pack various fragile and valuable items, such as electronic products, glass products, ceramic products, etc., and can effectively protect the items from damage during transportation and storage.

Construction field: EPS particles can be heated and expanded, then formed through molds and cut into insulation boards of required sizes and shapes for use in thermal insulation of building walls, roofs, and floors. They can also be made into decorative components of various shapes, such as door and window frames, lines, flower panels, etc., for decorating the interior and exterior of buildings.

Item		Unit	PSPEC90	PSPEC120
Expansion Chamber	Diameter	mm	Ф900	Ф1200
	Volume	m3	1.2	2.2
	Useable volume	m3	0.8	1.5
Steam	Inlet	mm	Ф25	Ф40
	Consumption	Kg/cycle	100-150	150-200
	Pressure	Mpa	0.6-0.8	0.6-0.8
Compressed air	Inlet	mm	Ф25	Ф25
Compressed air	Pressure	Mpa	0.6-0.8	0.6-0.8
Drainage	Condensation	mm	Ф20	Ф20
Connected load	Instaling power	Kw	10	15
Density	First expansion	g/L	12-30	14-30
Density	Second expansion	g/L	8-11	8-13
Overall size (LXWXH)		mm	4700X3000X3200	4900X4700X3200
Weight		kg	1500	1800
Room height required		mm	5000	5000
Productivity	15g/L	kg/h	150	250
	20g/L	kg/h	200	300
	25g/L	kg/h	250	410
	30g/L	kg/h	300	500
