Home /Products/Batch Pre Expander/Professional Batch Pre Expander For Expanded Material Production

Professional Batch Pre Expander For Expanded Material Production

1
MOQ
negotiation
Price
Professional Batch Pre Expander For Expanded Material Production
Features Gallery Product Description Request A Quote
Features
Specifications
Steam Consumption: 8-11 Kg/cycle
Compressed Air Consumption: 0.5-0.6 M³/cycle
Overall Size (L*W*H): 5600X3800X4500mm
Productivity 12g/L: 240kg/h
Productivity 18g/L: 320 Kg/h
Productivity 25g/L: 430kg/h
Productivity 30g/L: 600 Kg/h
Highlight:

Professional Batch Pre Expander

,

Expanded Material Batch Pre Expander

,

Material Production Batch Pre Expander
Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSPEB-N110
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

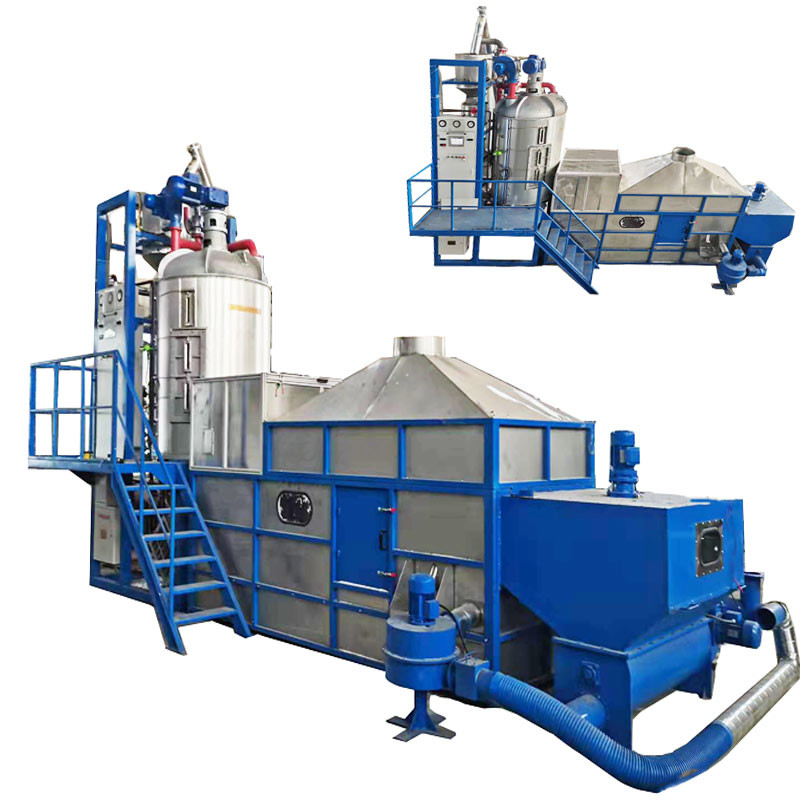

Batch Pre Expander Machine

Including common dryer bed, screw conveyer, filling, sieving devices,etc

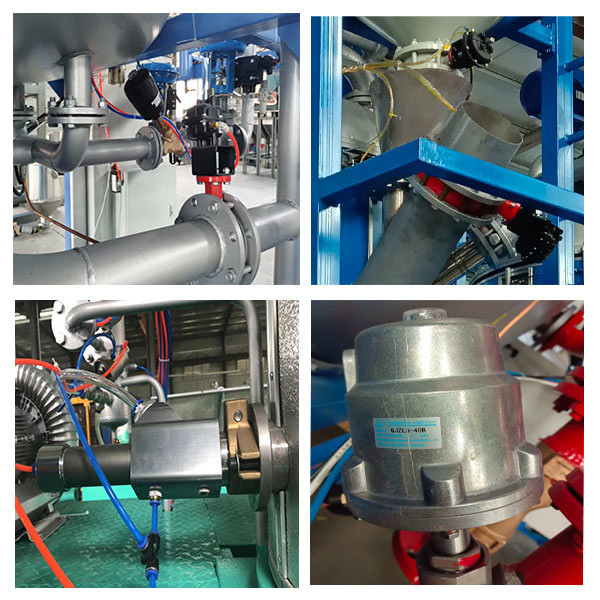

a. Steam system: Steam pressure reducer and angle valve to control steam.

b. Filling system: Adopts electronic weighing system, setting filling weight on touch screen for the material filling automatically



Item Unit PSPEB-N70 PSPEB-N150
Expansion Chamber Diameter mm Ф500 Ф1500
Volume m3 1000 2300
Useable volume m3 0.2 3.8
Steam Inlet mm Ф25 Ф50
Consumption Kg/cycle 3-5 3-5
Pressure Mpa 0.6-0.8 0.6-0.8
Compressed air Inlet mm Ф20 Ф40
Consumption m3/cycle 0.4-0.6 0.5-0.6
Pressure Mpa 0.6-0.8 0.6-0.8
Drainage Blower outlet g/L Ф65 Ф100
The total emission g/L Ф65 Ф150
Connected load Instaling power Kw 9.5 38
Consumption kg/cycle 0.2 0.65
Density g/L 12-30 12-30
Overall size (LXWXH) mm 3100X1500X3500 3700X3000X5300
Weight kg 1500 4800
Room height required mm 5000 6000
Productivity 12g/L kg/h 70-90 500-600
18g/L kg/h 110-120 800-900
20g/L kg/h 160-180 1000-1200
30g/L kg/h 200-220 1400-1500



Professional Batch Pre Expander For Expanded Material Production 0

Professional Batch Pre Expander For Expanded Material Production 1Professional Batch Pre Expander For Expanded Material Production 2

Professional Batch Pre Expander For Expanded Material Production 3
