Home /Products/Batch Pre Expander/Batch Pre Expander For Automated And Precise Expansion Control

Batch Pre Expander For Automated And Precise Expansion Control

1
MOQ
negotiation
Price
Batch Pre Expander For Automated And Precise Expansion Control
Features Gallery Product Description Request A Quote
Features
Specifications
Steam Consumption: 15-18 Kg/cycle
Compressed Air Consumption: 0.5-0.6 M³/cycle
Overall Size (L*W*H): 6500X4100X5400mm
Productivity 12g/L: 600kg/h
Productivity 18g/L: 900 Kg/h
Productivity 25g/L: 1200kg/h
Productivity 30g/L: 1500 Kg/h
Highlight:

Precise Expansion Control Pre Expander

,

Automated Batch Pre Expander

,

Precise Expansion Control Batch Pre Expander
Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSPEB-N150
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

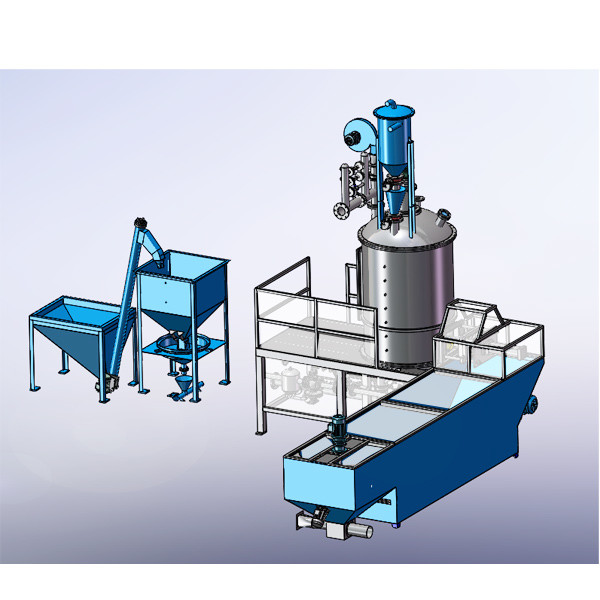

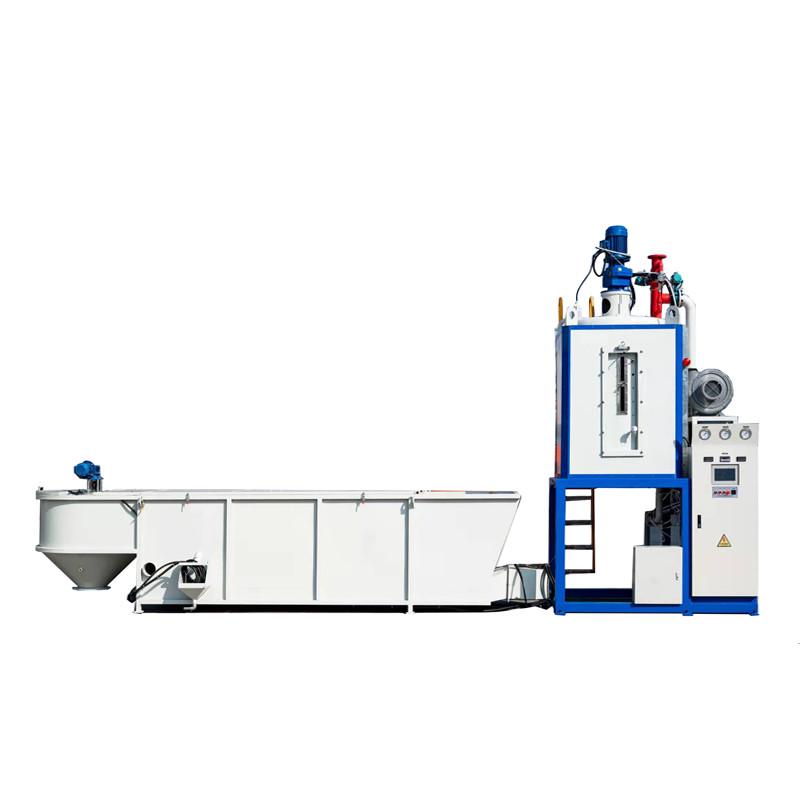

Batch Pre Expander Machine

Including common dryer bed, screw conveyer, filling, sieving devices,etc

a. Material level control: Adopts photo sensor to control the expansion level.

b. Electric control: Adopt PLC and touch screen, keep all process work automatically

Item Unit PSPEB-N70 PSPEB-N150
Expansion Chamber Diameter mm Ф500 Ф1500
Volume m3 1000 2300
Useable volume m3 0.2 3.8
Steam Inlet mm Ф25 Ф50
Consumption Kg/cycle 3-5 3-5
Pressure Mpa 0.6-0.8 0.6-0.8
Compressed air Inlet mm Ф20 Ф40
Consumption m3/cycle 0.4-0.6 0.5-0.6
Pressure Mpa 0.6-0.8 0.6-0.8
Drainage Blower outlet g/L Ф65 Ф100
The total emission g/L Ф65 Ф150
Connected load Instaling power Kw 9.5 38
Consumption kg/cycle 0.2 0.65
Density g/L 12-30 12-30
Overall size (LXWXH) mm 3100X1500X3500 3700X3000X5300
Weight kg 1500 4800
Room height required mm 5000 6000
Productivity 12g/L kg/h 70-90 500-600
18g/L kg/h 110-120 800-900
20g/L kg/h 160-180 1000-1200
30g/L kg/h 200-220 1400-1500



Batch Pre Expander For Automated And Precise Expansion Control 0

Batch Pre Expander For Automated And Precise Expansion Control 1Batch Pre Expander For Automated And Precise Expansion Control 2

Batch Pre Expander For Automated And Precise Expansion Control 3
