Home /Products/Batch Pre Expander/Industrial Batch Pre Expander For EPS Foam Insulation Materials

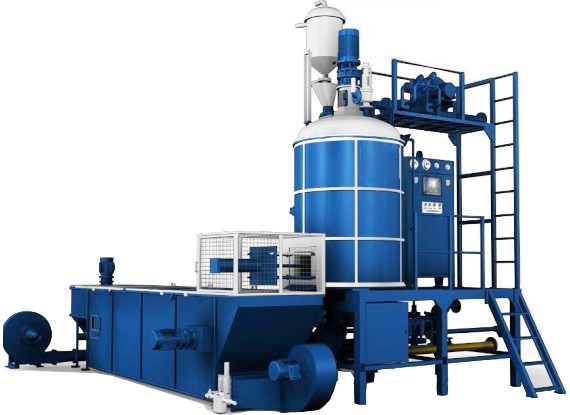

Industrial Batch Pre Expander For EPS Foam Insulation Materials

1
MOQ
negotiation
Price
Industrial Batch Pre Expander For EPS Foam Insulation Materials
Features Gallery Product Description Request A Quote
Features
Specifications
Steam Consumption: 2-4 Kg/cycle
Compressed Air Consumption: 0.4-0.6 M³/cycle
Overall Size (L*W*H): 5600X2950X3360mm
Productivity 18g/L: 100 Kg/h
Productivity 25g/L: 160kg/h
Productivity 30g/L: 220 Kg/h
Weight: 1500kg
Highlight:

Industrial Batch Pre Expander

,

EPS Foam Insulation Materials Pre Expander

,

EPS Foam Insulation Batch Pre Expander
Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSPEB-N70
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

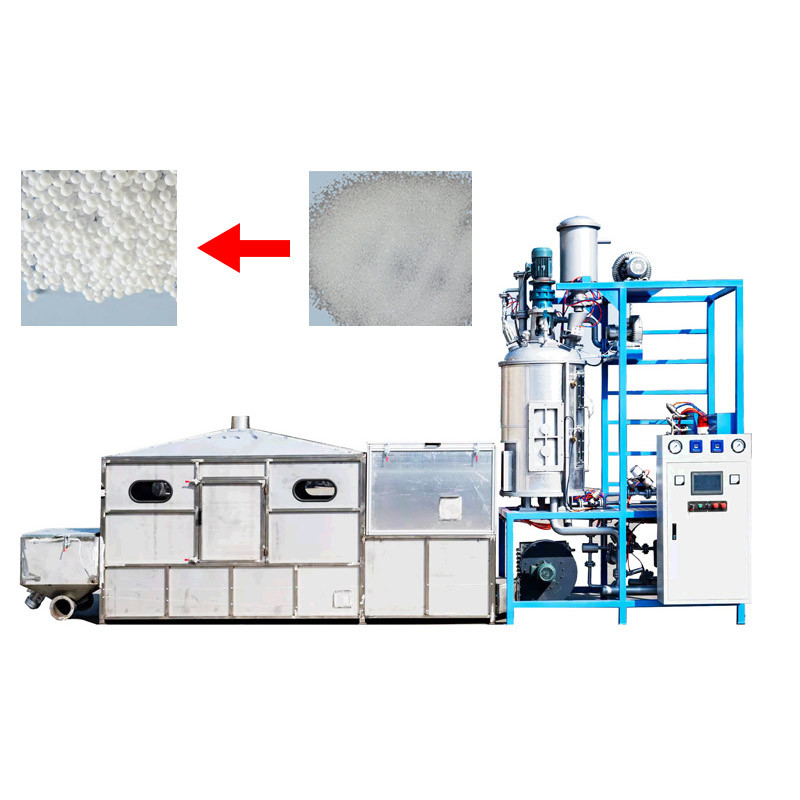

Batch Pre Expander Machine

Note:

a. Vibration level sensor is optional.

b. Proportional valves of steam and com-pressed air are optional.

c. Chamber pressure and temperature sensors control system are optional.

d. As for SPJ70B pre-expander, the machine needs to be equipped with PID control system when the expansion density is above 30g/L

Item Unit PSPEB-N70 PSPEB-N150
Expansion Chamber Diameter mm Ф500 Ф1500
Volume m3 1000 2300
Useable volume m3 0.2 3.8
Steam Inlet mm Ф25 Ф50
Consumption Kg/cycle 3-5 3-5
Pressure Mpa 0.6-0.8 0.6-0.8
Compressed air Inlet mm Ф20 Ф40
Consumption m3/cycle 0.4-0.6 0.5-0.6
Pressure Mpa 0.6-0.8 0.6-0.8
Drainage Blower outlet g/L Ф65 Ф100
The total emission g/L Ф65 Ф150
Connected load Instaling power Kw 9.5 38
Consumption kg/cycle 0.2 0.65
Density g/L 12-30 12-30
Overall size (LXWXH) mm 3100X1500X3500 3700X3000X5300
Weight kg 1500 4800
Room height required mm 5000 6000
Productivity 12g/L kg/h 70-90 500-600
18g/L kg/h 110-120 800-900
20g/L kg/h 160-180 1000-1200
30g/L kg/h 200-220 1400-1500



Industrial Batch Pre Expander For EPS Foam Insulation Materials 0

Industrial Batch Pre Expander For EPS Foam Insulation Materials 1Industrial Batch Pre Expander For EPS Foam Insulation Materials 2

Industrial Batch Pre Expander For EPS Foam Insulation Materials 3



Tag:

Batch eps pre expander machine

4500mm eps expander

Polystyrene eps pre expander machine
