Home /Products/Batch Pre Expander/Automatic Expandable Polystyrene Batch Pre Expander

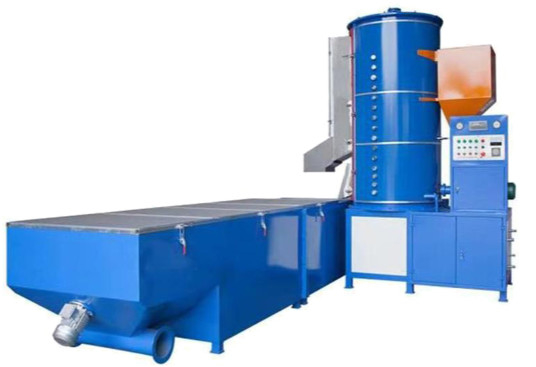

Automatic Expandable Polystyrene Batch Pre Expander

1
MOQ
negotiation
Price
Automatic Expandable Polystyrene Batch Pre Expander
Features Gallery Product Description Request A Quote
Features
Specifications
Processing Type: Foaming Machine
Useable Volume: 4.8
Room Height Required: 5m
Origin: Zhejiang CHINA
Warranty Period: 1year
Max Product Height: 1840 Mm
Outside Dimensions: 11250x6600x6500mm
Weight: 8.50t
Highlight:

Polystyrene Batch Pre Expander

,

Automatic Expandable Polystyrene Batch Pre Expander

,

Automatic Batch Pre Expander
Basic Infomation
Place of Origin: Zhejiang China
Brand Name: PINSHENG
Model Number: SPJ180B
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description
Pre-expansion: The process begins with the pre-expansion of EPS beads. The beads are fed into a pre-expander, where they are exposed to steam and heat.
Variable volume barrel inherits the foam- ing precision of the small barrel and also has the characteristics of high efficiency of the large barrel. The raw materials can be turned 360° in the barrel and heated evenly. The uniformity of the foam partic- les is also very good.
The feeding and discharging speed of the conical barrel is very fast. The feeding speed is increased by 50%, and the dis- charging efficiency is increased by 65%.
Variable volume barrel optimizes the EPS pre-expansion mechanism and heating process, and has the characteristics of high efficiency and high output. The amount of steam required to prepare one ton of materials can be saved by 20%.
lt pre-expands black suspended graphite materials through a special heating process, which has a higher expansion ratio than conventional pre-expanders.

Automatic Expandable Polystyrene Batch Pre Expander 0Automatic Expandable Polystyrene Batch Pre Expander 1Automatic Expandable Polystyrene Batch Pre Expander 2Automatic Expandable Polystyrene Batch Pre Expander 3

Item   Unit SPJ180B
Expansion Chamber   mm 1800(Inner diameter)*2700(height)
Useable Volume   m³ 4.8
Steam Entry mm DN80
Pressure Mpa 0.5~0.6
Compressed Air Entry mm DN65
Working pressure Mpa 0.5~0.65
Drainage Port steam Vent mm DN150
Drain outlet mm DN80
Motor Spindle Motor kW 11
Discharge fan kW 5.5
Drying motor kW 11
Transport fan kW 11
Crushing motor kW 1.1
Vibrating motor kW 0.55
Flap motor kW 0.75
Throughput   12g/L 2200~2400kg/h
  15g/L 2650~2800kg/h
  18g/L 3000~3200kg/h
  20g/L 3300~3500kg/h
Density Tolerance     ≤±1.5%
Outside Dimensions   mm 11250*6600*6500
Weight   t 8.5
Optional Pipeline control option   Balance vable
Material level control   Vibration sensor

Automatic Expandable Polystyrene Batch Pre Expander 4
