Home /Products/Batch Pre Expander/Batch Pre Expander Auto EPS Machine Polystyrene White Foam Beads

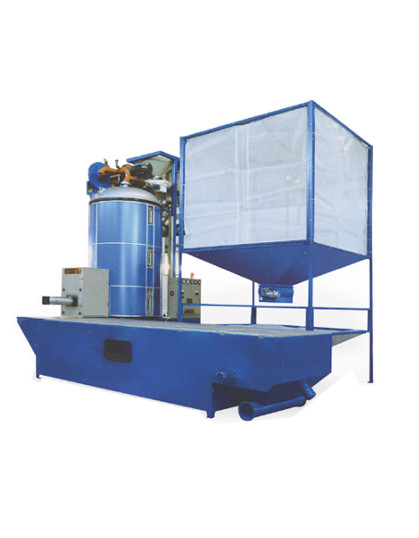

Batch Pre Expander Auto EPS Machine Polystyrene White Foam Beads

1
MOQ
negotiation
Price
Batch Pre Expander Auto EPS Machine Polystyrene White Foam Beads
Features Gallery Product Description Request A Quote
Features
Specifications
Room Height Requierd: 6000mm
Compressed Air Consumption: 0.4-0.6 M³/cycle
Overall Size (L*W*H): 5600X2950X3360mm
Productivity 18g/L: 100 Kg/h
Productivity 25g/L: 160kg/h
Steam Pressure: 0.6-0.8Mpa
Density: 12-30g/L
Highlight:

Batch Pre Expander Machine Auto

,

Batch Pre Expander EPS Machine

,

Polystyrene Beads Batch Pre Expander Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSPEB-N150
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

Batch Pre Expander Machine

Main features :
The machine adopts Mitsubishi PLC and Taiwan HMI with atuo to filling material,auto electronic weighint,auto controlling chamber temperature , pressure and level testing to .
Steam system:Steam pressure reducer and angle valve to contorl steam.
Fillng system:Adopts electronic weighing system ,setting filling weight to HMI for material filling automatically.
Material level control:Adopts laser sensor to control the expansion level. Electronic control: Mitsubishi PLC and TaiwanHMI,chneider components.

Advantages

  • Efficiency: Capable of processing large quantities at once.
  • Quality Control: Allows for consistent product quality through controlled conditions.
  • Versatility: Can be adjusted for different materials and specifications.
Item Unit PSPEB-N70 PSPEB-N110
Expansion Chamber Diameter mm Ф500 Ф1500
Volume m3 1000 2300
Useable volume m3 0.2 3.8
Steam Inlet mm Ф25 Ф50
Consumption Kg/cycle 3-5 3-5
Pressure Mpa 0.6-0.8 0.6-0.8
Compressed air Inlet mm Ф20 Ф40
Consumption m3/cycle 0.4-0.6 0.5-0.6
Pressure Mpa 0.6-0.8 0.6-0.8
Drainage Blower outlet g/L Ф65 Ф100
The total emission g/L Ф65 Ф150
Connected load Instaling power Kw 9.5 38
Consumption kg/cycle 0.2 0.65
Weight kg 1500 3500



Batch Pre Expander Auto EPS Machine Polystyrene White Foam Beads 0



Batch Pre Expander Auto EPS Machine Polystyrene White Foam Beads 1Batch Pre Expander Auto EPS Machine Polystyrene White Foam Beads 2

Batch Pre Expander Auto EPS Machine Polystyrene White Foam Beads 3



Tag:

Batch eps pre expander machine

4500mm eps expander

Polystyrene eps pre expander machine
