Name: Automatic EPS Batch Pre Foaming Machine Expanded Polystyrene
Brand: NINGBO PINSHENG MACHINERY CO.,LTD
SKU: PSPEB-N70/150
Price: 39,500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Processing Type: Batch Pre Expander Machine

Room Height Required: 5000mm

Origin: Zhejiang CHINA

Warranty Period: 1year

Outside Dimensions: 11250x6600x6500mm

Weight: 1500KG/4800KG

Highlight:

Expanded Polystyrene Batch Pre Foaming Machine

Automatic EPS Batch Pre Foaming Machine

Automatic Batch Pre Foaming Machine

Basic Infomation

Place of Origin: Zhejiang China

Brand Name: PINSHENG

Model Number: PSPEB-N70/150

Payment & Shipping Terms

Delivery Time: 6-10days

Payment Terms: T/T LC

Supply Ability: 10pcs per month

Gallery

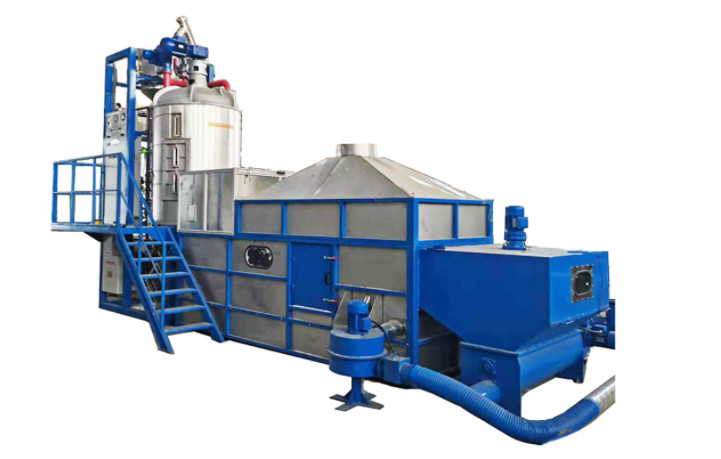

Automatic EPS Batch Pre Foaming Machine Expanded Polystyrene

Product Description

Pre-expansion: The process begins with the pre-expansion of EPS beads. The beads are fed into a pre-expander, where they are exposed to steam and heat.

Variable volume barrel inherits the foam- ing precision of the small barrel and also has the characteristics of high efficiency of the large barrel. The raw materials can be turned 360° in the barrel and heated evenly. The uniformity of the foam partic- les is also very good.
The feeding and discharging speed of the conical barrel is very fast. The feeding speed is increased by 50%, and the dis- charging efficiency is increased by 65%.

Variable volume barrel optimizes the EPS pre-expansion mechanism and heating process, and has the characteristics of high efficiency and high output. The amount of steam required to prepare one ton of materials can be saved by 20%.

lt pre-expands black suspended graphite materials through a special heating process, which has a higher expansion ratio than conventional pre-expanders.

Main features:
The machine adopts Mitsubishi PLC and Taiwan HMI with atuo to filling material,auto electronic weighint,auto controlling chamber temperature , pressure and level testing to
Steam system:Steam pressure reducer and angle valve to contorl steam.

Fillng system:Adopts electronic weighing system ,setting filling weight to HMI for material filling automatically .
Material level control:Adopts laser sensor to control the expansion level.

Electronic control: Mitsubishi PLC and Taiwan HMI,chneider components

Automatic EPS Batch Pre Foaming Machine Expanded Polystyrene 0

Item		Unit	PSPEB-N70
Expansion Chamber	Height	mm	1000
Useable Volume	Volume	m³	0.2
Steam	Inlet	mm	25
Steam	Pressure	Mpa	0.6~0.8
Compressed Air	Inlet	mm	20
Compressed Air	Consumption	m³/cycle	0.5~0.9
Drainage Port	Blower outlet	g/L	65
Drainage Port	The total	g/L	65
Density Tolerance		g/L	12-30
Weight		kg	1500

Automatic EPS Batch Pre Foaming Machine Expanded Polystyrene 4
