Name: Automatic EPS Polystyrene Small Foam Pre Expander
Brand: NINGBO PINSHENG MACHINERY CO.,LTD
SKU: PSPEB-N70/150
Price: 39,500.00 USD
Availability: InStock

Automatic EPS Polystyrene Small Foam Pre Expander

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Steam Consumption: 2-4 Kg/cycle

Compressed Air Consumption: 0.4-0.6 M³/cycle

Overall Size (L*W*H): 5600X2950X3360mm

Productivity 18g/L: 100 Kg/h

Productivity 25g/L: 160kg/h

Productivity 30g/L: 220 Kg/h

Highlight:

Small Foam EPS Polystyrene Pre-Expander

Automatic EPS Polystyrene Pre-Expander

Polystyrene Small Foam Pre Expander Automatic

Basic Infomation

Place of Origin: CHINA

Brand Name: PIN SHENG

Model Number: PSPEB-N70/150

Payment & Shipping Terms

Delivery Time: 6-10days

Payment Terms: T/T LC

Supply Ability: 10pcs per month

Gallery

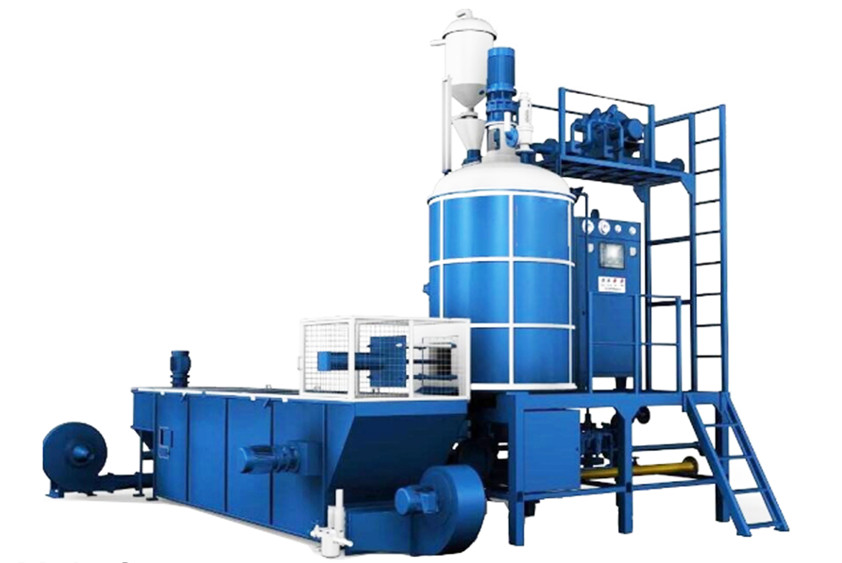

Automatic EPS Polystyrene Small Foam Pre Expander

Product Description

Batch Pre Expander Machine

Note:

a. Vibration level sensor is optional.

b. Proportional valves of steam and com-pressed air are optional.

c. Chamber pressure and temperature sensors control system are optional.

d. As for SPJ70B pre-expander, the machine needs to be equipped with PID control system when the expansion density is above 30g/L

Main features

The machine adopts Mitsubishi PLC and Taiwan HMl with atuo to fillingmaterial,auto electronic weighint,auto controlling chamber temperaturepressure and level testing to.

Steam system:Steam pressure reducer and angle valve to contorl steam.

Fillng system:Adopts electronic weighing system ,setting filling weight toHMl for material filling automatically.

Material level control:Adopts laser sensor to control the expansion level.

Electronic control: Mitsubishi PLC and Taiwan HMl,chneider components.

Item		Unit	PSPEB-N70	PSPEB-N150
Expansion Chamber	Diameter	mm	Ф500	Ф1500
	Volume	m3	1000	2300
	Useable volume	m3	0.2	3.8
Steam	Inlet	mm	Ф25	Ф50
	Consumption	Kg/cycle	3-5	3-5
	Pressure	Mpa	0.6-0.8	0.6-0.8
Compressed air	Inlet	mm	Ф20	Ф40
	Consumption	m3/cycle	0.4-0.6	0.5-0.6
	Pressure	Mpa	0.6-0.8	0.6-0.8
Drainage	Blower outlet	g/L	Ф65	Ф100
Drainage	The total emission	g/L	Ф65	Ф150
Connected load	Instaling power	Kw	9.5	38
Connected load	Consumption	kg/cycle	0.2	0.65
Density		g/L	12-30	12-30
Overall size (LXWXH)		mm	3100X1500X3500	3700X3000X5300
Weight		kg	1500	4800
Room height required		mm	5000	6000
Productivity	12g/L	kg/h	70-90	500-600
	18g/L	kg/h	110-120	800-900
	20g/L	kg/h	160-180	1000-1200
	30g/L	kg/h	200-220	1400-1500

Automatic EPS Polystyrene Small Foam Pre Expander 0

Automatic EPS Polystyrene Small Foam Pre Expander 1

Automatic EPS Polystyrene Small Foam Pre Expander 3
