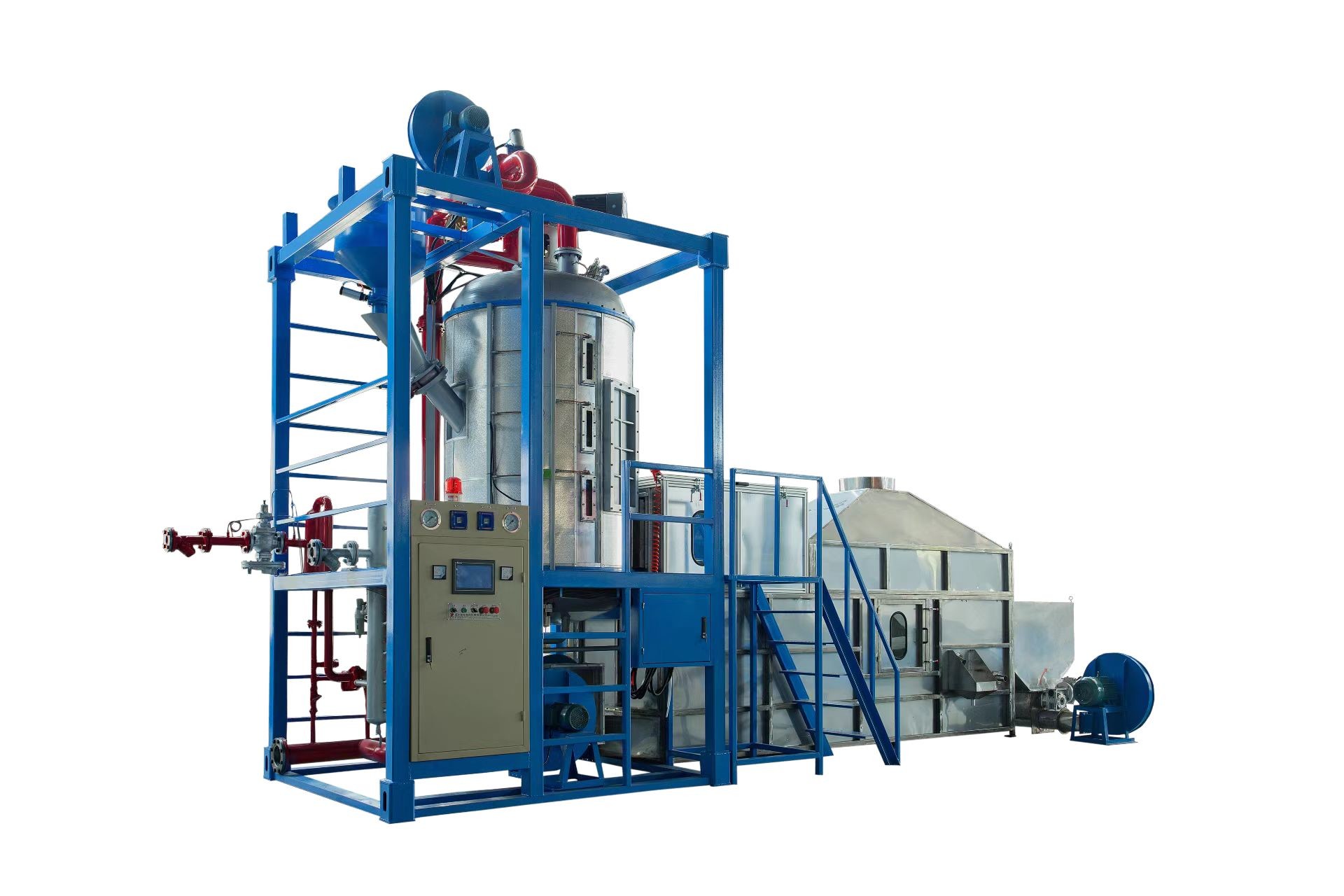

Name: High Efficiency Batch Pre Expander Production Line For Great Sale
Brand: NINGBO PINSHENG MACHINERY CO.,LTD
SKU: PSPEB-N70/N150
Price: 39,500.00 USD
Availability: InStock

High Efficiency Batch Pre Expander Production Line For Great Sale

MOQ

negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Steam Consumption: 8-11 Kg/cycle

Compressed Air Consumption: 0.5-0.6 M³/cycle

Overall Size (L*W*H): 5600X3800X4500mm

Productivity 18g/L: 320 Kg/h

Productivity 25g/L: 430kg/h

Productivity 30g/L: 600 Kg/h

Highlight:

Great Sale Batch Pre Expander

High Efficiency Batch Pre Expander

Batch Pre Expander Production Line

Basic Infomation

Place of Origin: CHINA

Brand Name: PIN SHENG

Model Number: PSPEB-N70/N150

Payment & Shipping Terms

Delivery Time: 6-10days

Payment Terms: T/T LC

Supply Ability: 10pcs per month

Gallery

High Efficiency Batch Pre Expander Production Line For Great Sale

Product Description

High Efficiency Batch Pre Expander Production Line For Great Sale.

Functionality

Heating: The raw material is heated, causing the blowing agent within the beads to vaporize.

Expansion: As the blowing agent expands, the beads increase in volume, creating a lightweight material.

Cooling: The expanded beads are then cooled to stabilize their structure before they are transported for further processing.

Importance

Efficiency: Batch pre-expanders allow for greater control over the expansion process, leading to consistent product quality.

Production Volume: They can handle large quantities of materials, making them suitable for industrial applications.

Quality Control: The pre-expansion process helps in achieving the desired density and structure of the final product.

Applications

Packaging: Used in protective packaging materials.

Insulation: Employed in thermal insulation products for construction.

Consumer Goods: Used in various foam products found in everyday items.

Item		Unit	PSPEB-N70	PSPEB-N150
Expansion Chamber	Diameter	mm	Ф500	Ф1500
	Volume	m3	1000	2300
	Useable volume	m3	0.2	3.8
Steam	Inlet	mm	Ф25	Ф50
	Consumption	Kg/cycle	3-5	3-5
	Pressure	Mpa	0.6-0.8	0.6-0.8
Compressed air	Inlet	mm	Ф20	Ф40
	Consumption	m3/cycle	0.4-0.6	0.5-0.6
	Pressure	Mpa	0.6-0.8	0.6-0.8
Drainage	Blower outlet	g/L	Ф65	Ф100
Drainage	The total emission	g/L	Ф65	Ф150
Connected load	Instaling power	Kw	9.5	38
Connected load	Consumption	kg/cycle	0.2	0.65
Density		g/L	12-30	12-30
Overall size (LXWXH)		mm	3100X1500X3500	3700X3000X5300
Weight		kg	1500	4800
Room height required		mm	5000	6000
Productivity	12g/L	kg/h	70-90	500-600
	18g/L	kg/h	110-120	800-900
	20g/L	kg/h	160-180	1000-1200
	30g/L	kg/h	200-220	1400-1500
