Semi Automatic EPS Foam Molders 1700x1000mm PSSM90-170S

1
MOQ
negotiation
Price
Semi Automatic EPS Foam Molders 1700x1000mm PSSM90-170S
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty Period: 1 Year
Voltage: AC380V 50Hz
Origin: Zhejiang CHINA
Material: EPS
Processing Type: Foaming Machine
Product Type: Foam Net, EPS, EPS Foam Shape Molding, Eps Foam Package, Eps Foam Box
High Light:

PIN SHENG Semi Automatic eps foam molders

,

PIN SHENG 1000mm eps foam molders

,

1700mm eps foam machine

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSSM90-170S
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 20pcs per month
Product Description

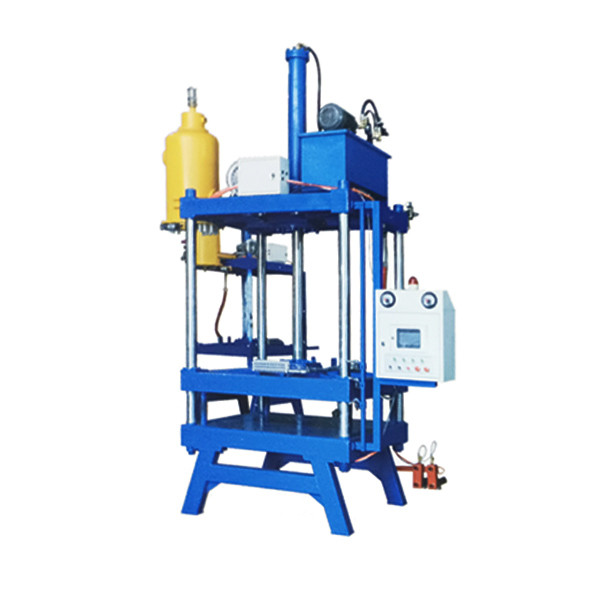

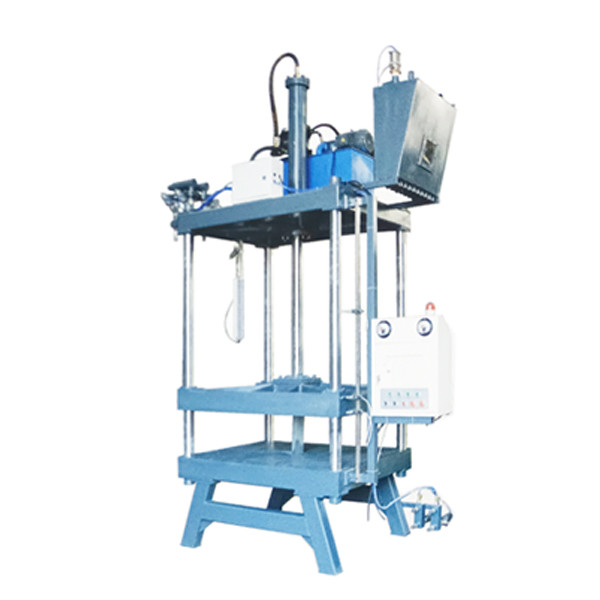

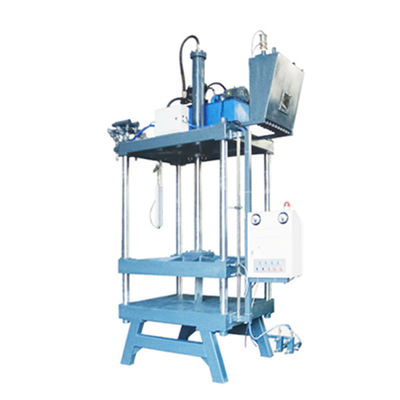

EPS White lost foam casting molding machine semi-auto eps shape molding machine PIN SHENG

Semi-automatic molding machine low price, simple operation, very used in order variety, small batch order customers.
1. The machine is adopted with PLCand HMI and clamping,feeding,heating mold,cooling,opening mold and stripping are in full automatic control.
2. The machine is adopted with vertical layout with compact structure and small floor space .the machine is transmited with hydraulic pressure with fast opening mold speed ,stable operation and small noise.
3. It is easy to operate and it can be swithed between full automation and manual operation .which can clamp mold preferably to reduce leakage.
4. The filling ,heating ,cooling and stripping are controlled automatically with accurate completely period time and stable product quality .
5. All the adopted electronic components ,pneumatic components,valves and other parts are all brands at home and abroad .



Item Unit PSSM90S PSSM100S PSSM120-08S PSSM120-10S PSSM130S PSSM150S PSSM170S
Mould Dimension mm 900X500 1000X700 1200X600 1200X800 1300X800 1500X1000 1700X1000
Stroke mm 150X1100
Platform size mm 900X700 1000X900 1200X800 1200X1000 1300X1000 1500X1200 1700X1200
Connected Load kw 5 5 5 5 5 5 7
Weight kg 2000 2500 2700 2800 3000 3500 3800



Semi Automatic EPS Foam Molders 1700x1000mm PSSM90-170S 0



Semi Automatic EPS Foam Molders 1700x1000mm PSSM90-170S 1

FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
