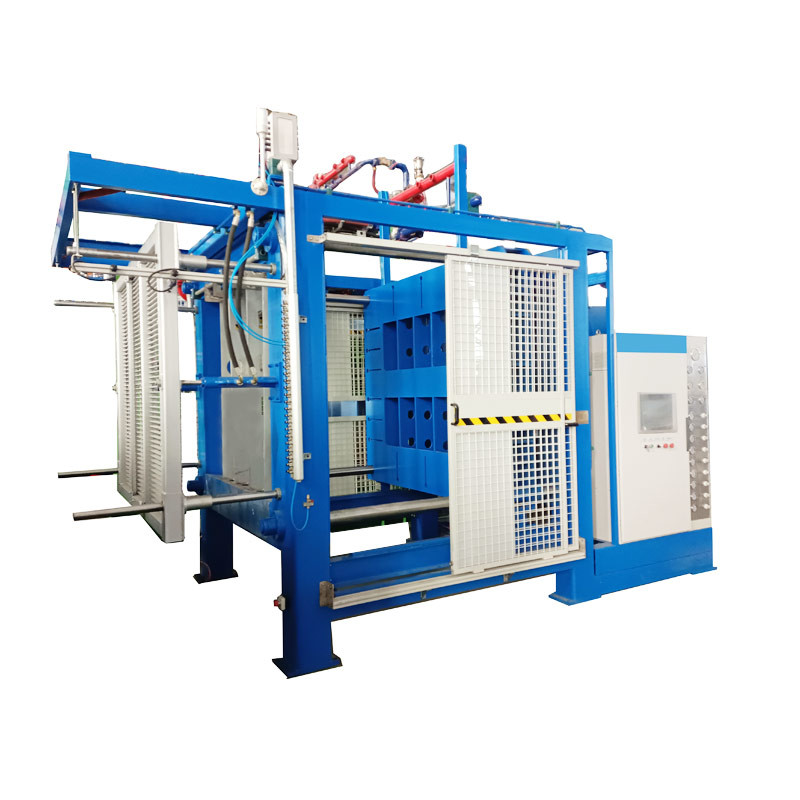

High Efficiency and Energy Saving Type Auto Shape Moulding Machine
The equipment mainly adopts the large diameter control pneumatic valve, pneumatic control is faster, PLC adopts Mitsubishi FX5U series control response is more sensitive, higher efficiency.
1, It is made of 16-22mm steel plate welded with carbon dioxide shielded welding.All formwork is tempered at high temperature and shot peening at high pressure. It has high strength and high surface hardness.
2, The template is processed by CNC numerical control,high machining accuracy.
3, The heating principle of low pressure and large flow rate is adopted,and double steam valves are equipped.Steam valve is controlled by balance valve and gas control valve,which makes the pressure control of steam more precise.
| Item | Unit | PSSM160E | PSSM170E | PSSM180E | PSSM200E |
| Mould Dimension | mm | 1600X1400 | 1700X1500 | 1800X1600 | 2000X1800 |
| Max Product Dimension | mm | 1450X1350X350 | 1550X1350X350 | 1650X1450X350 | 1850X1650X350 |
| Stroke | mm | 150-1500 | |||
| Steam Inlet | mm | DN100 | DN100 | DN100 | DN100 |
| Steam Consumption | t/t | (7-11t)Steam of 1t Material | |||
| Cooling Water inlet | mm | DN80 | DN80 | DN80 | DN80 |
| Cooling Water Consumption |
kg/cycle | 60-180 | 70-190 | 90-200 | 100-220 |
| Compressed Air Inlet | mm | DN40 | DN50 | DN50 | DN50 |
| Compressed Air Consumption |
m³/cycle | 2 | 2.2 | 2.4 | 3 |
| Vacuum Pump Capacity |
m³/h | 230 | 280 | 280 | 280 |
| Drainage Port | mm | DN150 | DN150 | DN150 | DN150 |
| Connected Load | kw | 17 | 17 | 17 | 20 |
| Outside Dimension | mm | 4600X2500X4000 | 4600X2600X4100 | 4600X2700X4200 | 4600X2900X4400 |
| Weight | kg | 6000 | 6500 | 7000 | 7500 |
| Cycle Time | s | 70-140 | 70-150 | 70-160 | 90-180 |
FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.
2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied
3. Are you a trading company or a manufacturer?
We are manufacturer.
4. How long is your delivery time?
Normally delivery time is 30~45 days.
5. How many years have your company made this kind of equipment?
More than 10 years.
6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.
7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation
8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.
9. Can you can design the equipment according to our size?
Yes, it is acceptable
10. How many production lines in your factory?
We have total 10 production line.
