1000x800-2000x1800mm EPS Shape Molding Machine Automatic
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380v 50Hz
Weight: 4-8T
Mould Dimension: 1000*800-2000*1800mm
Outside Dimension: 4300*1900*3400-4600*2900*4400mm
Connected Load: 11-20kw
Cycle Time: 60-180S
Warranty: 1 Year
Material: EPS
High Light:

1800mm EPS Shape Molding Machine

,

2000mm eps shape molding machine

,

PIN SHENG Automatic machine eps

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSSM100-200E
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

High Efficiency Automatic EPS Shape Moulding Machine
Main features :
1. The rack configuration with high strength improves the useful life of equipment by high annealing aging heat treatment,derusting by sandblast,galvanized surface and spraying heavy-duty paint on the surface.
2. Adopted with two-part light replaceable guide bushing and wearable selflubricating copper bushing to resolve the problem of difficulty to replace guide bushing of the equipment and improve the lubricating effect atthe same time .
3. The hydraulic pressure System of the equipment is adopted with the design scheme of high speed and high pressure.The opening&clamping mold speed of conventional pumping unit is 150mm/s and the maximum opening&clamping mold speed of energy-saving machine can reach at 250mm/s.The automatic machine is adopted with clamping mode with two points each in both sides,which can clamp mold preferably to reduce leakage.
4. Technique application of pilot-operated steam valve:the valve is adopted with cylineder actuator of DN 80 to control large-diameter valve with accurate sensitive control.The input steam pressure stabilizes in 0.1-0.15Mpa with the error of±0.01Mpa.The heating time of the same type of equipment shortens by 30% and the energy consumption decreases by 25-30% on year -on year basis.

5. The mold cavity pressure of pressure transducer control replaces the traditional electro connecting pressure gauge control to make the penetrating and core heating technologies more complete.
6. Technique application of efficient vacuum system:the equipment is adopted with large diameter Drainage pipe of 4-6 inch and long-distance condensing water pipe to increase the vacuum volume.It is equiped with demountable spray device on the top of the vacuum barrel to improve the vacuum condersing rate so as to increase the suction efficiency of the vacuum for reaching the cooling effect of taking water cooling as supplement and vacuum as the principal thing to make the water content of the produced product be less than or equal to 10% by spraying with cooling water .





Item Unit PSSM100E PSSM120E PSSM140E PSSM160E PSSM170E PSSM180E PSSM200E
Mould Dimension mm 1000X800 1200X1000 1400X1200 1600X1400 1700X1500 1800X1600 2000X1800
Max Product Dimension mm 850X650X350 1050X850X350 1250X1050X350 1450X1350X350 1550X1350X350 1650X1450X350 1850X1650X350
Stroke mm 150-1500
Steam Inlet mm DN65 DN80 DN100 DN100 DN100 DN100 DN100
Steam Consumption t/t (7-11t)Steam of 1t Material
Cooling Water inlet mm DN65 DN80 DN80 DN80 DN80 DN80 DN80
Cooling Water
Consumption
kg/cycle 40-110 45-130 55-150 60-180 70-190 90-200 100-220
Compressed Air Inlet mm DN40 DN40 DN40 DN40 DN50 DN50 DN50
Compressed Air
Consumption
m³/cycle 1.2 1.5 1.8 2 2.2 2.4 3
Vacuum Pump
Capacity
m³/h 165 165 230 230 280 280 280
Drainage Port mm DN125 DN125 DN150 DN150 DN150 DN150 DN150
Connected Load kw 11 11 13 17 17 17 20
Outside Dimension mm 4300X1900X3400 4600X2100X3600 4600X2300X3800 4600X2500X4000 4600X2600X4100 4600X2700X4200 4600X2900X4400
Weight kg 4000 4500 5000 6000 6500 7000 7500
Cycle Time s 50-80 50-90 60-100 70-140 70-150 70-160

90-180

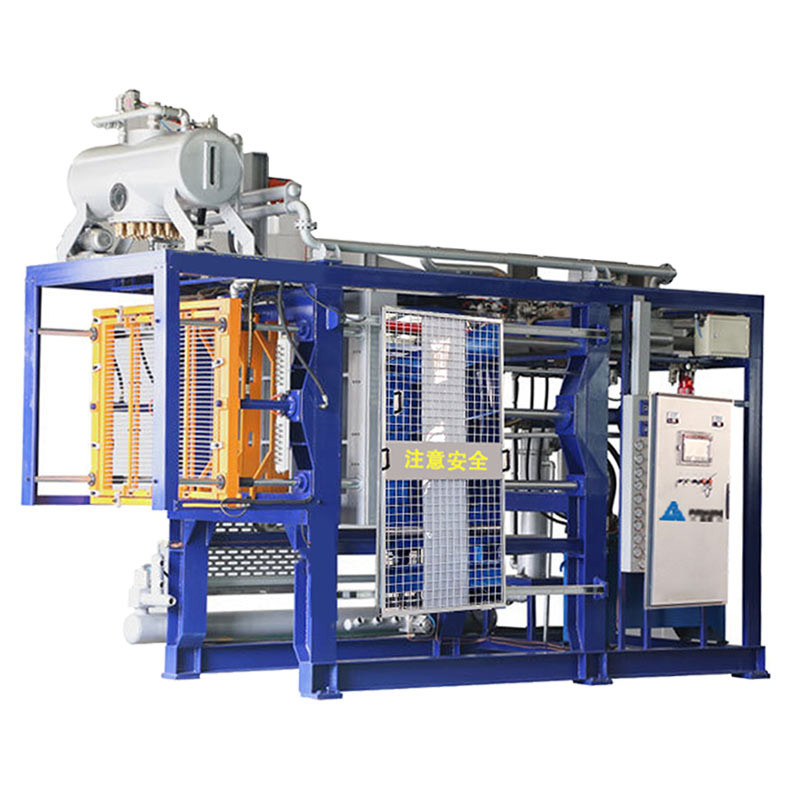

1000x800-2000x1800mm EPS Shape Molding Machine Automatic 0

1000x800-2000x1800mm EPS Shape Molding Machine Automatic 1

1000x800-2000x1800mm EPS Shape Molding Machine Automatic 2

FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
