1600x1400mm EPS Shape Moulding Machine For Fruit Packing Box

1
MOQ
negotiation
Price
1600x1400mm EPS Shape Moulding Machine For Fruit Packing Box
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380V
Weight: 4-8T
Mould Dimension: 1000*800-2000*1800mm
Outside Dimension: 4300*1900*3400-4600*2900*4400mm
Connected Load: 11-20kw
Material: EPS
High Light:

1400mm EPS Shape Moulding Machine

,

PIN SHENG 1600mm EPS Shape Moulding Machine

,

PIN SHENG 20kw shape moulding machine

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSSM100-200B
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

EPS Shape Moulding Machine for Fruit packing box

1.  This machine applies PLC and HMI,advanced moulding technique and can produce various shapes of EPS products.
2.  This machine can provide different kinds of foam articles with lower moisture content, high foaming speed and lower consumption of energy.
3.  There are four kinds of operating mode (automatic,semi-automatic,pause-startup and manual operation)with safe-guard protective device to ensure safe operation.
4.  This machine applies advanced electrical and hydraulic integration system,which improves the moulding speed,lowers the energy consumption remarkably and reduces the environmental pollution.
Item Unit PSSM160B PSSM170B PSSM180B
Mould Dimension mm 1600X1400 1700X1500 1800X1600
Max Product Dimension mm 1450X1350X350 1550X1350X350 1650X1450X350
Stroke mm 170-1420 170-1420 120-1370
Steam Inlet mm DN100 DN100 DN100
Steam Consumption t/t (10-15t)Steam of 1t Material
Cooling Water inlet mm DN80 DN80 DN80
Cooling Water
Consumption
kg/cycle 60-180 70-190 90-200
Compressed Air Inlet mm DN40 DN50 DN50
Compressed Air
Consumption
m³/cycle 2 2.2 2.4
Vacuum Pump
Capacity
m³/h 230 280 280
Drainage Port mm DN150 DN150 DN150
Connected Load kw 17 17 17
Outside Dimension mm 4600X2500X4000 4600X2600X4100 4600X2700X4200
Weight kg 6000 6500 7000
Cycle Time s 70-160 80-170 80-180

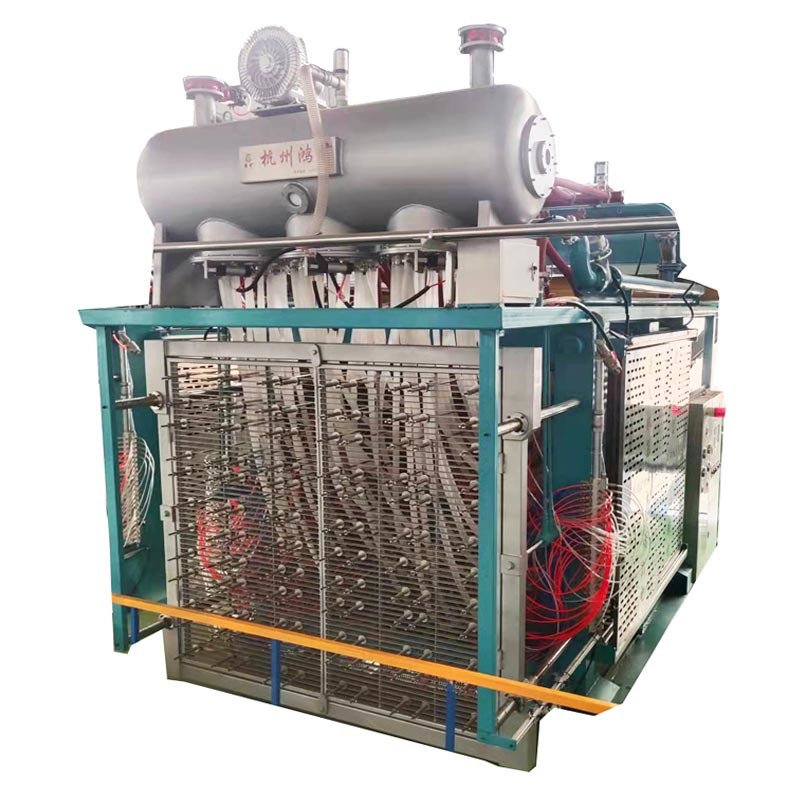

1600x1400mm EPS Shape Moulding Machine For Fruit Packing Box 0

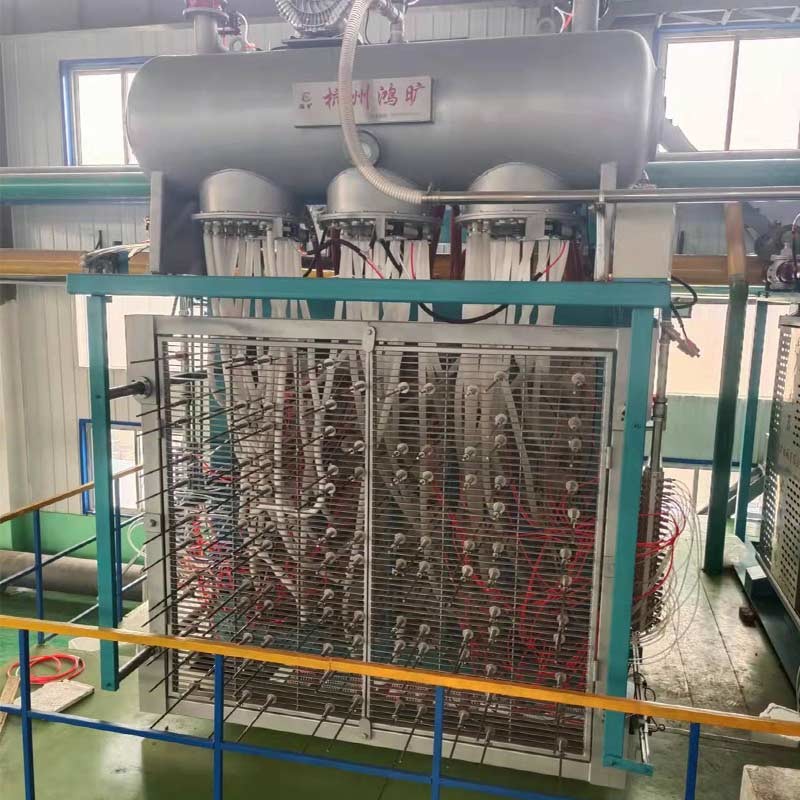

1600x1400mm EPS Shape Moulding Machine For Fruit Packing Box 1
FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.

2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied

3. Are you a trading company or a manufacturer?
We are manufacturer.

4. How long is your delivery time?
Normally delivery time is 30~45 days.

5. How many years have your company made this kind of equipment?
More than 10 years.

6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.

7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation

8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.

9. Can you can design the equipment according to our size?
Yes, it is acceptable

10. How many production lines in your factory?
We have total 10 production line.
