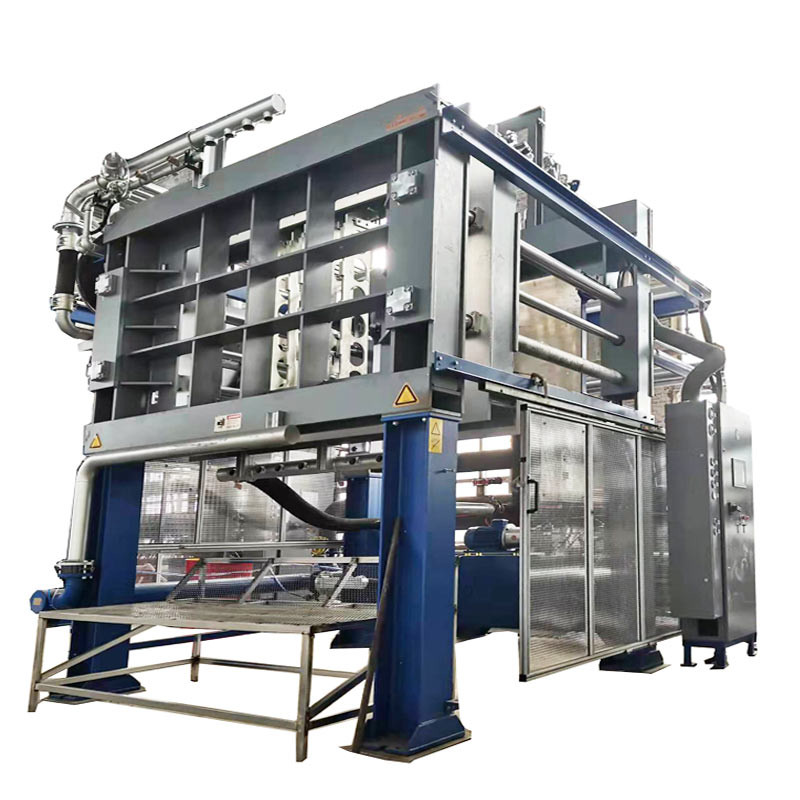

Polystyrene EPS Foam Molding Machine 17kw 4600x2700x4200mm

1
MOQ
negotiation
Price
Polystyrene EPS Foam Molding Machine 17kw 4600x2700x4200mm
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380V 50Hz
Power: 17kw
Dimension: 4600*2700*4200
Weight: 7000kg
High Light:

Polystyrene EPS Foam Molding Machine

,

17kw EPS Foam Molding Machine

,

4200mm eps foam molding

Basic Infomation
Place of Origin: CHINA
Brand Name: PIN SHENG
Model Number: PSSM180B
Payment & Shipping Terms
Delivery Time: 6-10days
Payment Terms: T/T LC
Supply Ability: 10pcs per month
Product Description

High Quality Professional Polystyrene Foam Moulding machine

Mechanical Structure :
a. high-strength square tube welded by tempering prevent form deformation .


b. after sand-blasting,greatly improve corrosion performance and service life of equipment .


c. after sand-blasting ,anti-rust spray zinc-rich primer,rust greatly improve the performance and service life of equipment .



Item Unit PSSM180B
Mould Dimension mm 1800X1600
Max Product Dimension mm 1650X1450X350
Stroke mm 120-1370
Steam Inlet mm DN100
Steam Consumption t/t (10-15t)Steam of 1t Material
Cooling Water inlet mm DN80
Cooling Water
Consumption
kg/cycle 90-200
Compressed Air Inlet mm DN50
Compressed Air
Consumption
m³/cycle 2.4
Vacuum Pump
Capacity
m³/h 280
Drainage Port mm DN150
Connected Load kw 17
Outside Dimension mm 4600X2700X4200
Weight kg 7000
Cycle Time s 80-180

Polystyrene EPS Foam Molding Machine 17kw 4600x2700x4200mm 0

FAQ
1. Where is your factory located?
We have 2 production plant, one plant locates in Hangzhou which professionally producing EPS/EPP/ETPU machine. Another factory locates in Jiangsu Provide which producing EPS/EPP/ETPU mould. Both two factories are pretty close to the Shanghai port for easiest transportation.



2. Do you have detailed and professional installation manual?
We will provide very detailed installation manuals and videos, and the service until you are satisfied



3. Are you a trading company or a manufacturer?
We are manufacturer.



4. How long is your delivery time?
Normally delivery time is 30~45 days.



5. How many years have your company made this kind of equipment?
More than 10 years.



6. Can I only buy some spare parts from you?
Yes, we also provide all kinds of spare parts that relatives to our machine.



7. How do you pack the equipment?
We will strengthen and protect the equipment to ensure that they will not be damaged during transportation



8. Can you send your staff to install the equipment for us?
Under normal conditions, it is possible. Now it is an epidemic situation.
We will try our best to assist in case wecannot send technician in time. We will also conduct video connections with guests to teach them to install them in place.



9. Can you can design the equipment according to our size?
Yes, it is acceptable



10. How many production lines in your factory?
We have total 10 production line.
